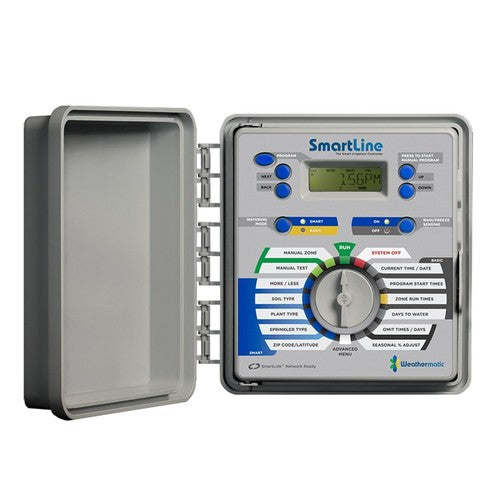

Weathermatic - SmartLine 4-Station Controller w/ SmartLink WiFi (Expandable to 16 Zones) - SL1600-WIFI

Sold out
Original price $411.01
Current price $222.55


4-zone base model with Pre-Installed WiFi Chip, expandable to 16 zones using SLM4 4-zone hot-swappable modules or SLM12-1600 12-zone module (Indoor/Outdoor rated)

Internal 120VAC/230VAC transformer with plug and play pre-installed 6 line cord (removable for conduit-wired installations)

Maximum Access & Control

  • Simple Dial Based Controller
  • Smart activation using intuitive mobile app
  • Access from SmartLink mobile app
  • Available in SmartLine controllers and retrofit panels
  • Amazon Alexa, Apple Watch compatible
  • Android and Apple iOS compatible
  • Manage system from anywhere
  • Get automatic email alerts
  • 1 user per site included (Uprgrade Option)
  • 99.99% server network reliability with Amazon Web Services
  • The WiFi enabled controller connects securely to your home network. No passwords are shared due to secure AWS. Log in to SmartLink to set up your sprinkler system and preferences.
  • Remote access to controller requires smart phone or tablet capable of operating the mobile SmartLink app.


  • 4 programs: A, B, C; program D can operate concurrently
  • 8 start times per program
  • Indoor/Outdoor Rated
  • Zone run times settable from 1 min. to 9 hrs. 55 min.
  • Rain/Freeze sensing on/off button with Tri-Color LED indicator
  • Rain delay of 1 “ 7 days
  • SLW5 Weather Sensor rain delay programmable from 0 “ 99 hours
  • Seasonal % adjust by program, by month
  • Omit time of day window, day(s) of week, and up to 7 calendar dates
  • Programmable zone-to-zone delay 1 min. “ 3 hrs.
  • Watering days: custom days of the week, odd/even, or interval days
  • Run/Soak cycles by program
  • Large backlit LCD display
  • Non-volatile memory “ with no battery required
  • Internal 120VAC/230VAC transformer with pre-installed 6 line cord
  • 2 Watering modes: Basic Mode and Smart Mode
  • Basic Mode: User Controlled Conventional Operation
  • Smart Mode: Daily automatic programming adjustments


  • ZIP Code input or Latitude input
  • Sprinkler type input
  • Plant type input
  • Soil type input
  • More/Less ET Tuning
  • Watering run times
  • Review menu displays accumulated ET deficits by zone
  • Display maximum run time and minimum soak time
  • Displays temperature readings (daily high/low) for previous 5 days
  • Accumulates total run times by zone from the last reset date
  • Clear deficits for all zones
  • Extended rain delay programmable from 0 “ 99 hours


  • Manual test runs each zone with zone run times from 10 sec. “ 10 min.
  • Manual zone operation of a single zone (1 min. to 9 hrs. 55 min.)
  • Push button manual start of a program from control panel
  • Fault review displays all faults, including open and shorted zones
  • Test function using on-board multi-meter
  • Built-in valve locator
  • Backtrack Stored Program„¢


  • Zone-to-zone delay
  • Master valve timing sequence with zone valve programmable
  • Master valve/pump start operation assignable On/Off by zone
  • Clear program function
  • Clear All function
  • Grow-In Program


9-1/8'' W x 10 ½'' H x 4'' D
(23,2 cm x 25,7 cm x 10,2 cm)


Manuals & Literature


Installation Instructions

Quick Start Guide

Owners Manual
