SLFSI-T10

1'' Slip Type Tee Insert Flow Sensor “ Used with the SmartLink Flow Aircard

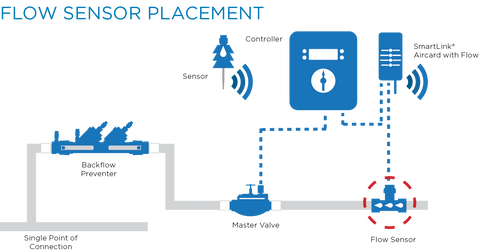

• Detect leaks, broken heads, lateral and main line breaks
• User defined low/high flow limits, by zone
• Automatic shutdown of both master and/or zone valve when flow limits are exceeded

Features

• Threaded retaining nut makes it easier to service in a valve box
• The molded mounting tee provides consistent measurements and overall improved performance
• Four bladed lightweight impeller is sensitive enough to measure lower flow rates
• Smart electronics capable of better signal filtering
• Affordable enough to install on nearly all new and old systems

Professional Materials

• Impeller “ HDPE (High Density Polyethylene)
• Shaft “ Tungsten Carbide
• O-ring ” Buna-N
• Saddle, Sensor Housing, Retaining Nut ” Type 1 PVC

Pressure Rating

150 PSI @ 90º F

Temperature Range

32º F to 140º F (0º to 60º C)

Output Signal

• Frequency Range: 0.3 Hz to 200 Hz
• Output Pulse: 5 ms +/-25%

Transducer Performance

• Quiescent current: 600 uA@8 VDC to 35 VDC max.
• Quiescent voltage: (VHigh)= Supply Voltage “ (600uA X Supply Impedance)
• On State: (VLow)= Max. 1.2 VDC@50mA current limit, (10Ω +0.7VDC)

Flow Range

• 0.25 to 12 FPS
• 1'' tee: 0.86 to 52 GPM

Electrical Cable

• 2 single conductor solid copper U.L. listed #18 AWG leads with direct burial insulation
• Lead length: 48 inches
• Wiring may be extended up to 2,000 feet with direct burial, twisted pair shielded cable

Manuals & Literature

• Installation Instructions
• Flow Sensor Pipe Sizing Chart
