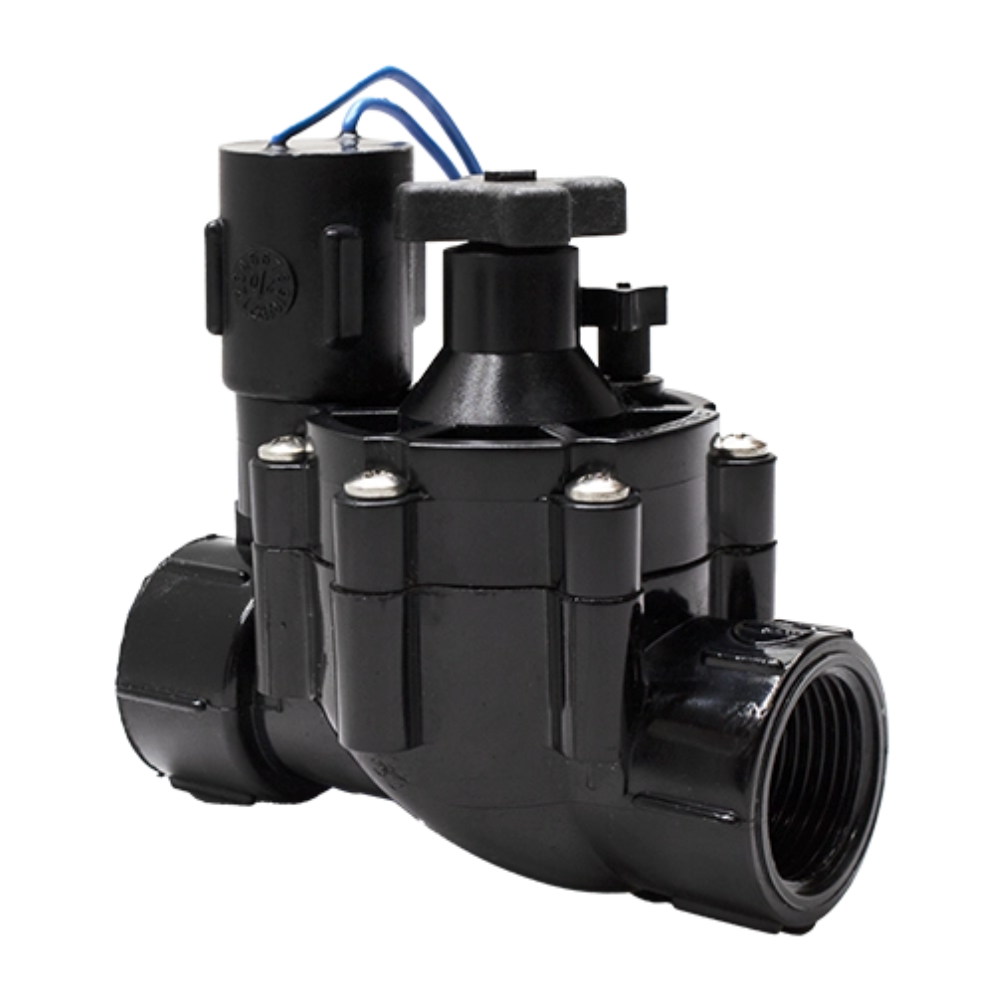

Weathermatic - 1'' Enduro Valve w/ Flow Control (Slip) - E-100SF

E-100SF (Direct replacement for N-100SF-H nitro series valve.)

1'' Valve - Slip x Slip with Flow Control

FEATURES

• Flow Range - 0.2 to 35 GPM
• 2 year trade warranty and 100% water tested
• 150 PSI (10.3 BAR) rating
• Normally closed valve for water conservation
• Unique “reverse flow” design permits equal pressure distribution on both sides of the diaphragm, regardless of line pressure, providing zero stress to prevent “stretching,” a common cause of valve failure.
• Reverse flow design for water conservation in the event of failure
• Diaphragm’s self cleaning ports constantly flex, inhibiting sand and silt from blocking valve action
• Molded shock cone for smooth operation and reduction of water hammer
• All New External Bleed, No Weeping, Guaranteed Shutdown
• All New Heavy Duty, Long Life Solenoid.
  • Water Resistant Blue Wire
  • Vibration Resistant
  • Standard Weathermatic Thread
  • Waterproof, One Piece Epoxy Design
  • Electrically Efficient
• Engineering grade PVC body and Phillips retaining screws
• Non-rising flow control stem throttles valve from full open to closed position on flow control models

ELECTRICAL

• 24VAC/60 Hz
• Inrush: 9.48 VA
• Holding: 5.11 VA

• 24VAC/50 Hz
• Inrush: 10.66 VA
• Holding: 5.97 VA

Do not use nominal voltage ratings listed above for sizing of valve wire.

Manuals & Literature

• Enduro Series Sales Sheet
