WAC Lighting - Colorscaping WallStation, Wi-Fi Communication - LED-WCT-WT

LED-WCT-WT - Colorscaping Scene Dimming Wallstation 120-230VAC Input Wi-Fi Communication in White

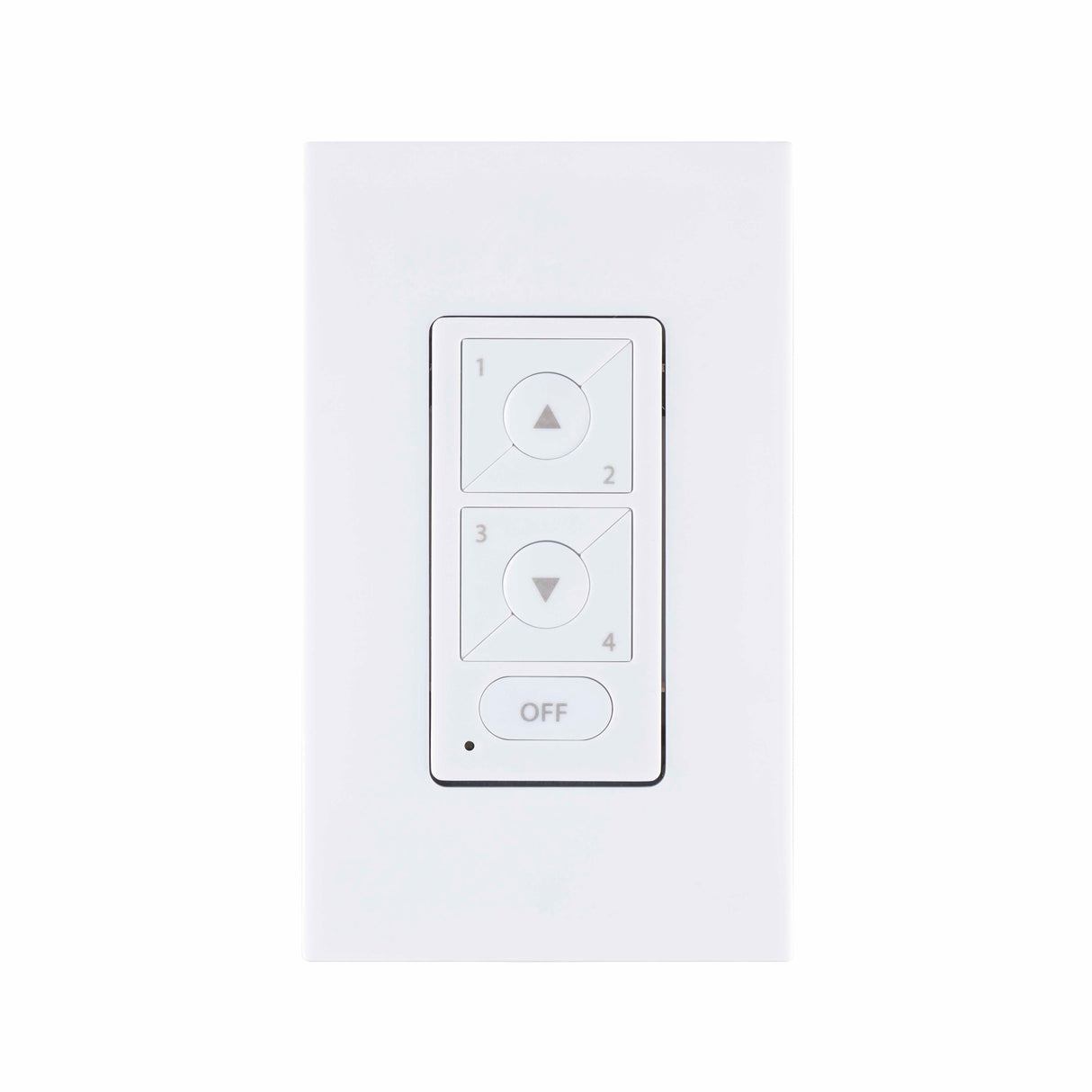

The WAC Scene Dimming Wallstation is a multi-scene, single-zone dimming Wallstation that provides customized light level control in areas such as bedroom, kitchen, and other areas requiring users' visual comfort, performance, appropriate illuminance, and satisfaction. It allows the user to select preprogrammed light levels with color or “scenes” with the push of a button. It has a dedicated button for OFF, 4-buttons scene, and for raise/lower functionality. All configurations can be changed via WAC mobile app.

Features

• Mobile App can be download through this link: (https://www.waclighting.com/apps/)
• Clean, Easy installation and simple way to control lighting
• The sleek, aesthetic designs are suitable for all interior locations
• Multi-scene selection, Raise/Lower, dedicated Off button
• Suitable for standard single NEMA wall box
• Setup and configuration via WAC mobile application, no physical adjustment needed
• Each button programmable to trigger or toggle scene or Zone
• Wi-Fi communication is required

Specifications

• Input: 120-230VAC, 50/60Hz
• Power: 0.6 W max.
• Standby Power: 0.4 W
• Radio: 2.4GHz IEEE 802.15.4
• Mounting: Wall Mount
• Operating Temp: 32°F to 113°F (0°C to 45°C)
• Standards: ETL, Damp Location Listed

Overview

The WAC WallStation is an integral part of the WAC connected lighting system. This wallstation is mains powered and is fully configurable to provide wireless local and multi-level control of the lighting in each area via internet Wi-Fi router. The Wallstation operate on a Wi-Fi wireless network based on IEEE 802.11g 2.4 GHz and Bluetooth 4.0. The Wallstation is a multi-scene, single area dimming Wallstation which provides customized light color and level for each area. Many of the available configurations also include raise and lower buttons to allow further manual adjustment of the light levels.

The WallStation design configurations supports up to:

• Seven buttons
• Four scene controls
• On/Off and Raise/Lower
