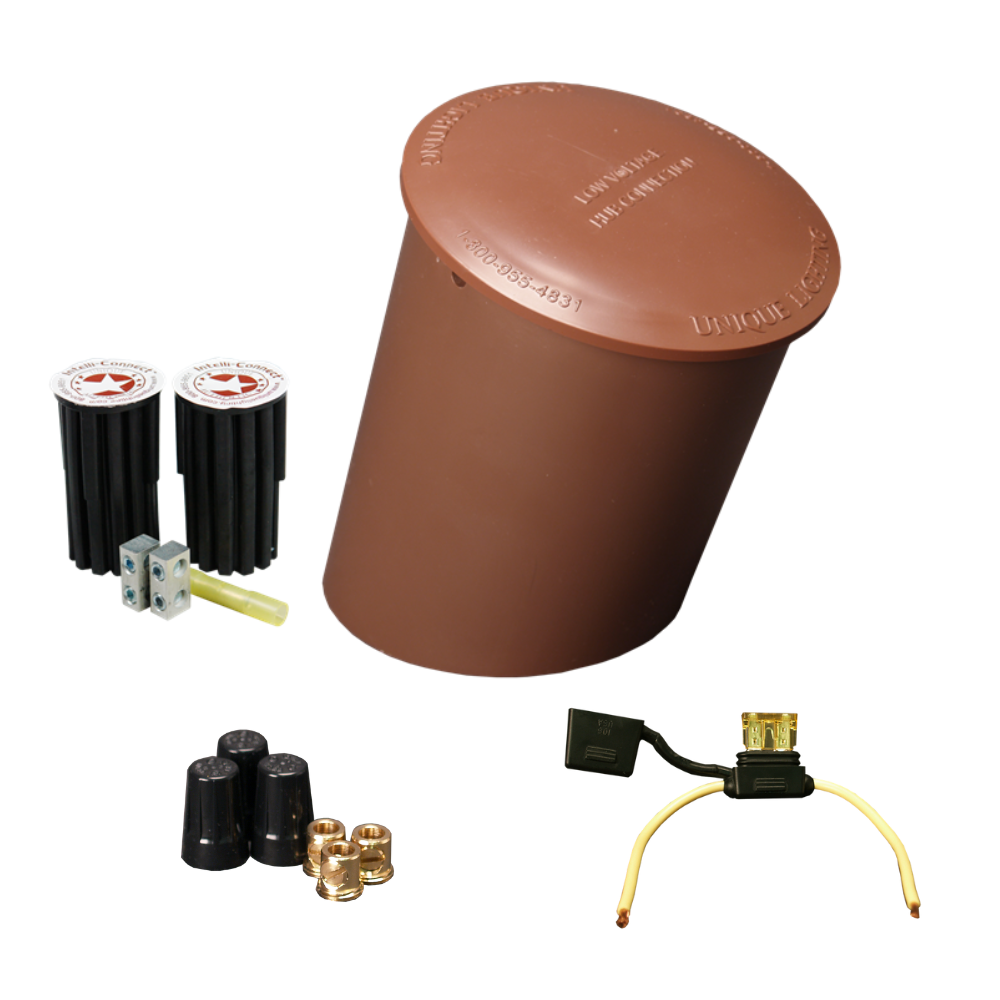

Intelli-HUB Wiring System

Wire connections are the weakest point of any low voltage installation and are susceptible to wicking and water infiltration. Utilizing the HUB installation method will reduce the number of connections by up to 80% versus standard wiring methods. This means less maintenance, less lamp outages and easier troubleshooting. In addition the HUB method utilizes less wire and saves money.

Flexibility is essential as landscape continues to grow and change over time. Each fixture features a 25’ wire lead that enables unmatched flexibility and makes expansion easy as trees grow and landscape develops.

• Each HUB acts as a central location for connections, taking the guess work out of troubleshooting
• 2 Intelli-Connect lugs with grease-filled tubes
• Protect connections from moisture to minimize wicking and corrosion
• Reduce the number of connection points, wire and labor
• Distribute proper voltage evenly to every fixture
• Flexibility in fixture location and future expansion

Specifications:

• Solid PVC Construction
• Fuse protection kit for system safety
• Fuse connection holder included
• Fuses Included
• Replaceable 10, 15 & (3) 20 Amp Blade Fuses
• Protect in-line connections from moisture to minimize wicking
   and corrosion
• Reduce the number of connection points, wire and labor
• Distribute proper voltage evenly to every fixture
• Flexibility in fixture location and future expansion

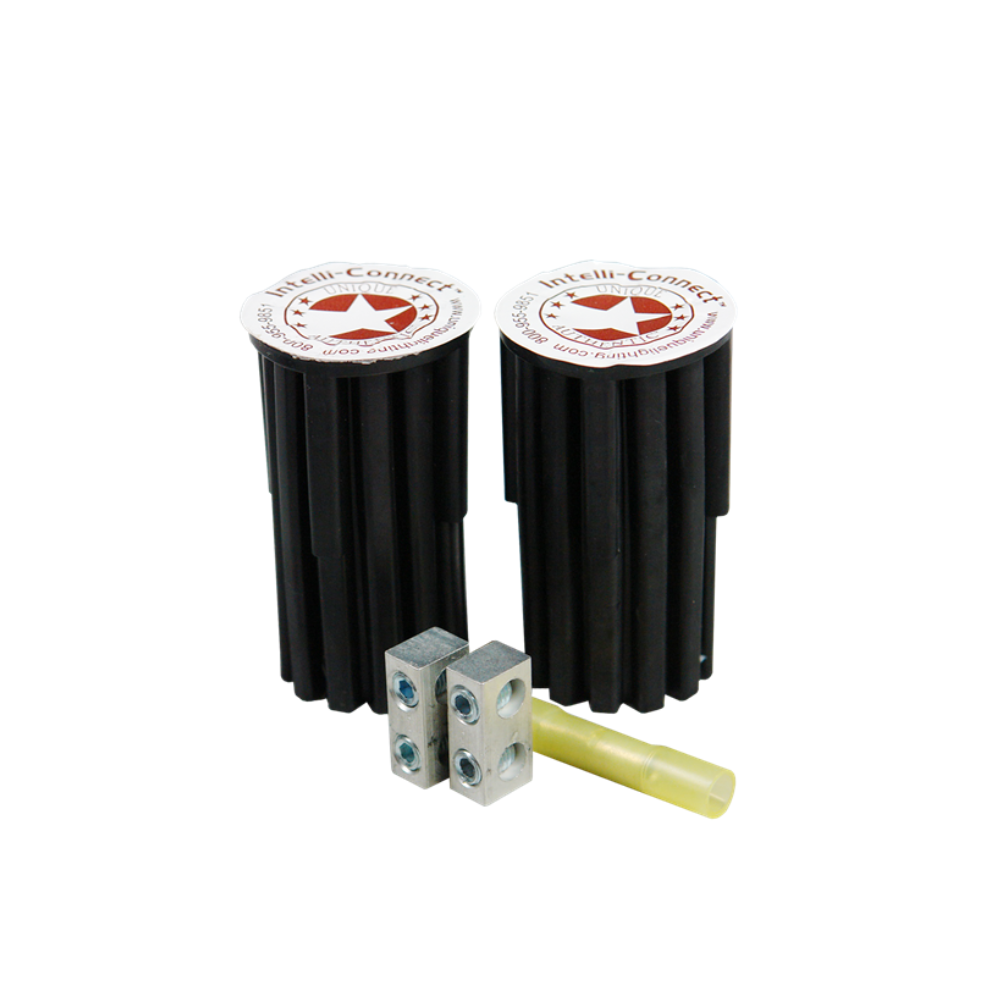

• 2 Intelli-Connect lugs with grease filled tubes
• 5 Brass Lug Nuts & Grease-Filled Caps included
• Limited lifetime warranty

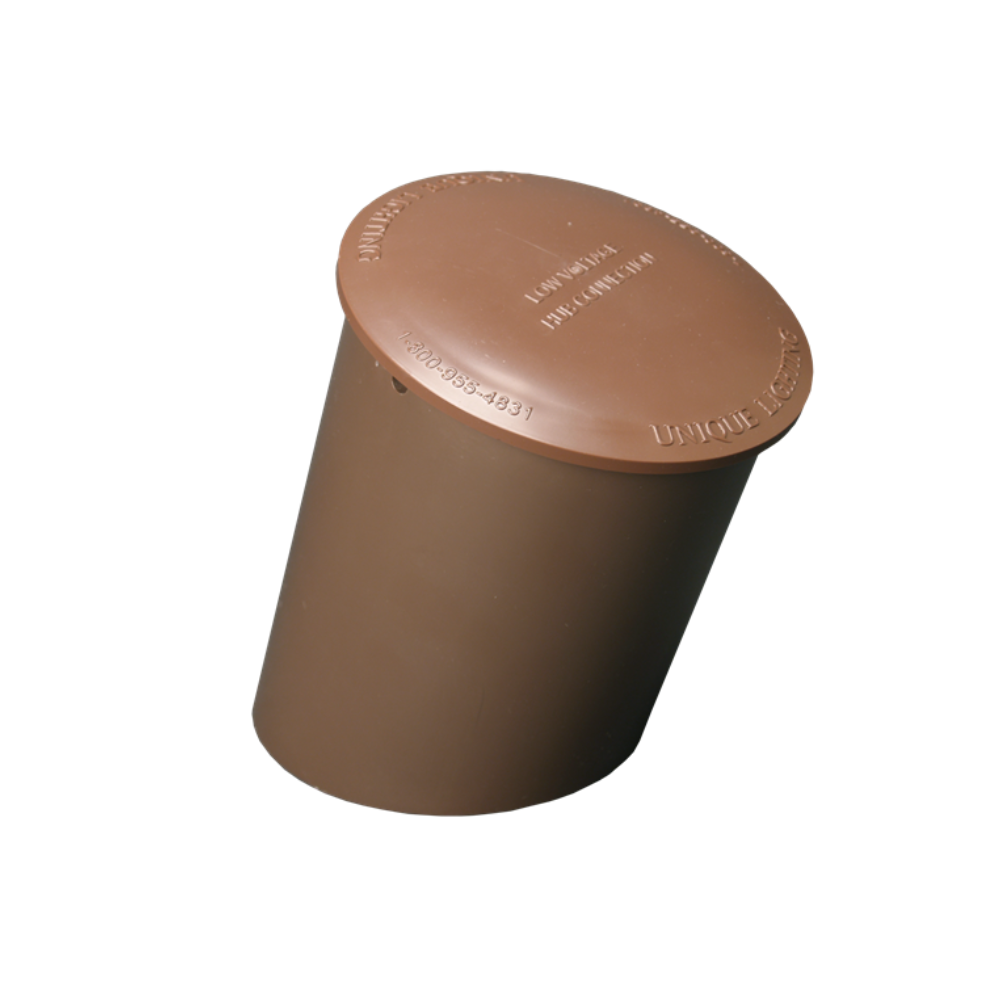

HUB Housing

• Brown ABS housing easily hides in the landscape
• Impact resistant so it holds up to the abuse of landscaping
• Snap-in lid makes access for expansion or maintenance easy
• Compact size is perfect for planters

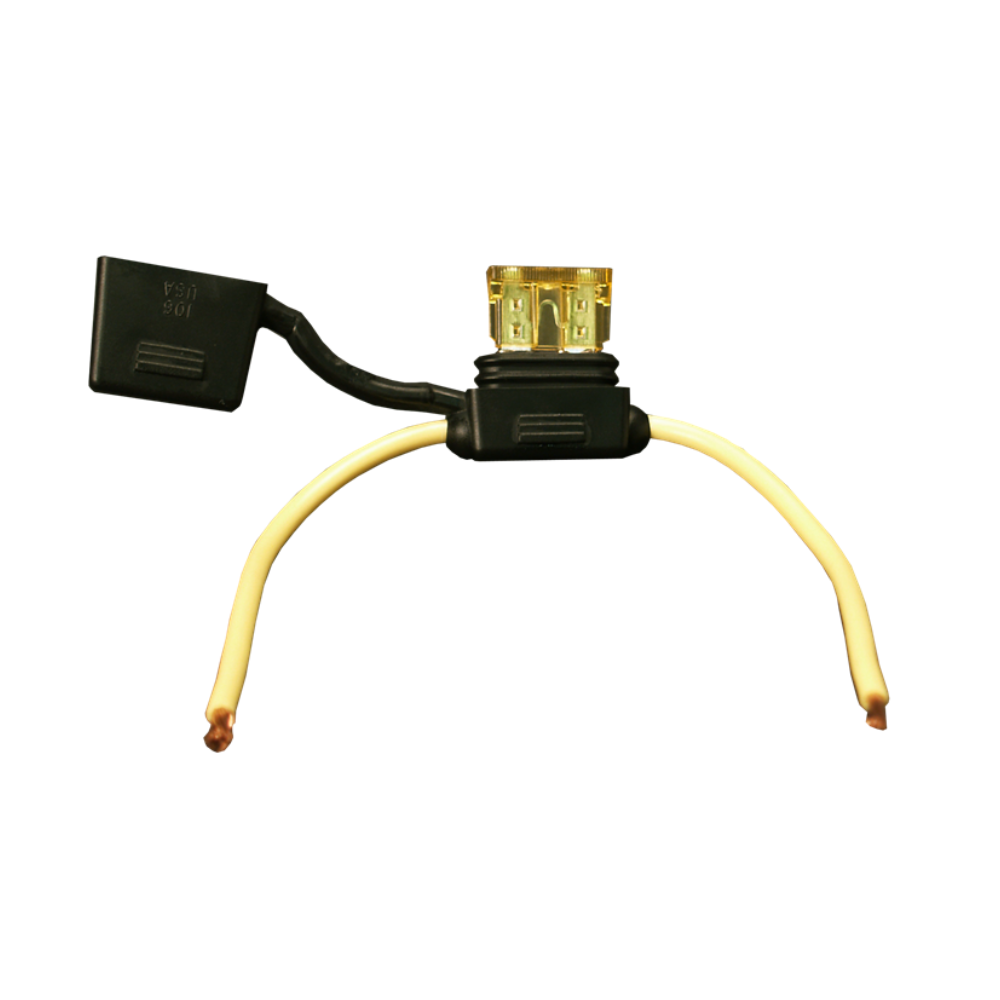

Fuse Link

• 20 Amp rated gives you the ability to fuse to the load
• Water resistant design protects in damp locations
• 8” 10AWG wire leads
• Protects wire from damage that may occur in the yard

Direct Burial Connections

• Brown ABS housing easily hides in the landscape
• Solid brass barrel lugs for lasting durable connections
• Pre-greased black wire caps to protect connections from moisture
• Solid mechanical connections ensures the life and performance of the HUB

The HUB Wiring Method is the ultimate in-line fuse protected wiring system and the future of landscape lighting wiring. Unique Lighting Systems includes a replaceable 20 and 10 amp fuse at the point of connection allowing you to size the fuse according to load or wire size, thus making troubleshooting accessible, convenient and fast.
