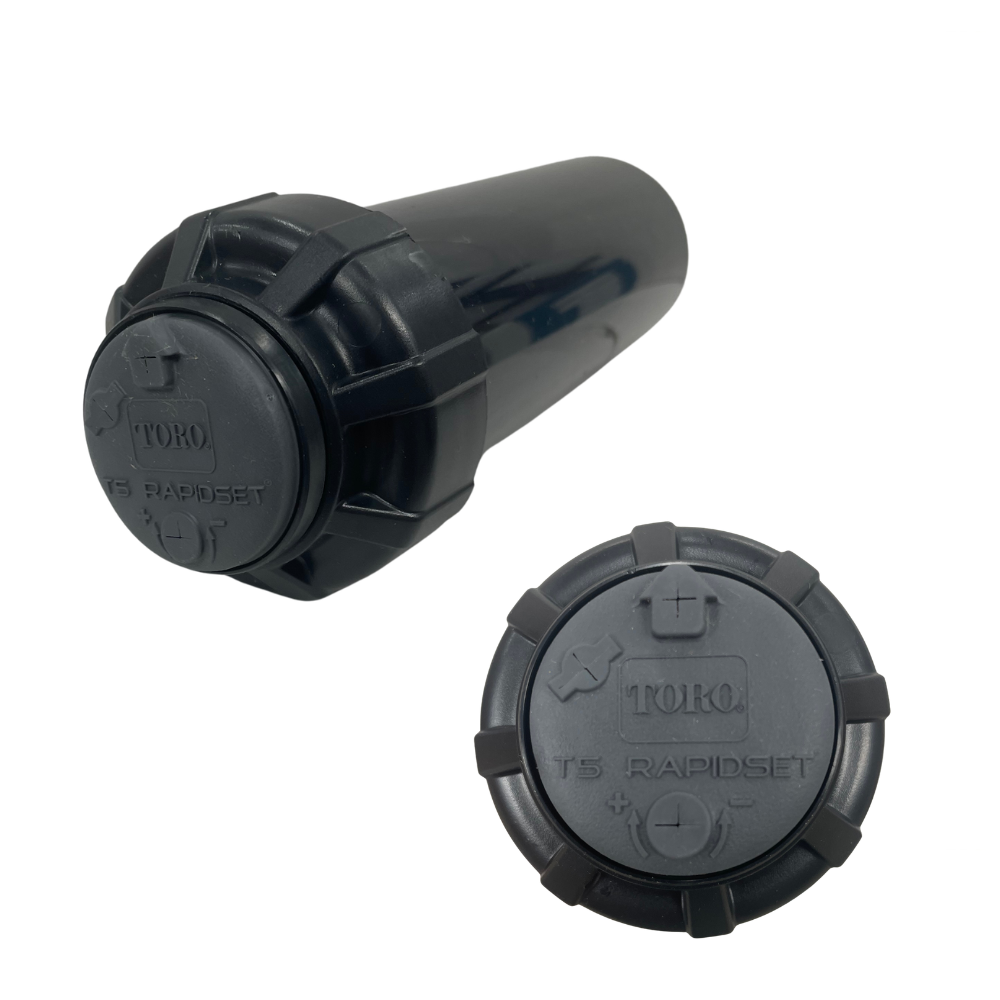

Toro - T5 RapidSet 5'' Pop-Up Rotor w/ Check Valve - T5PCK-RS

Toro  |  SKU: T5PCK-RS
$1096 $2105

Toro - T5 RapidSet 5'' Pop-Up Rotor w/ Check Valve - T5PCK-RS is backordered and will ship as soon as it is back in stock.

The Toro® T5 RapidSet rotor can be set in seconds. Engineered to use the slip clutch to adjust the arc, the T5 RapidSet rotor requires NO TOOLS for arc adjustments. Along with a five-inch pop-up height, the T5 RapidSet rotors feature exclusive Airfoil Technology™ standard and low angle nozzles that deliver class leading distribution uniformity. Designed to save water, save time, and save money, the T5 RapidSet rotor is the only ¾” rotor needed to get the job done.

Includes:

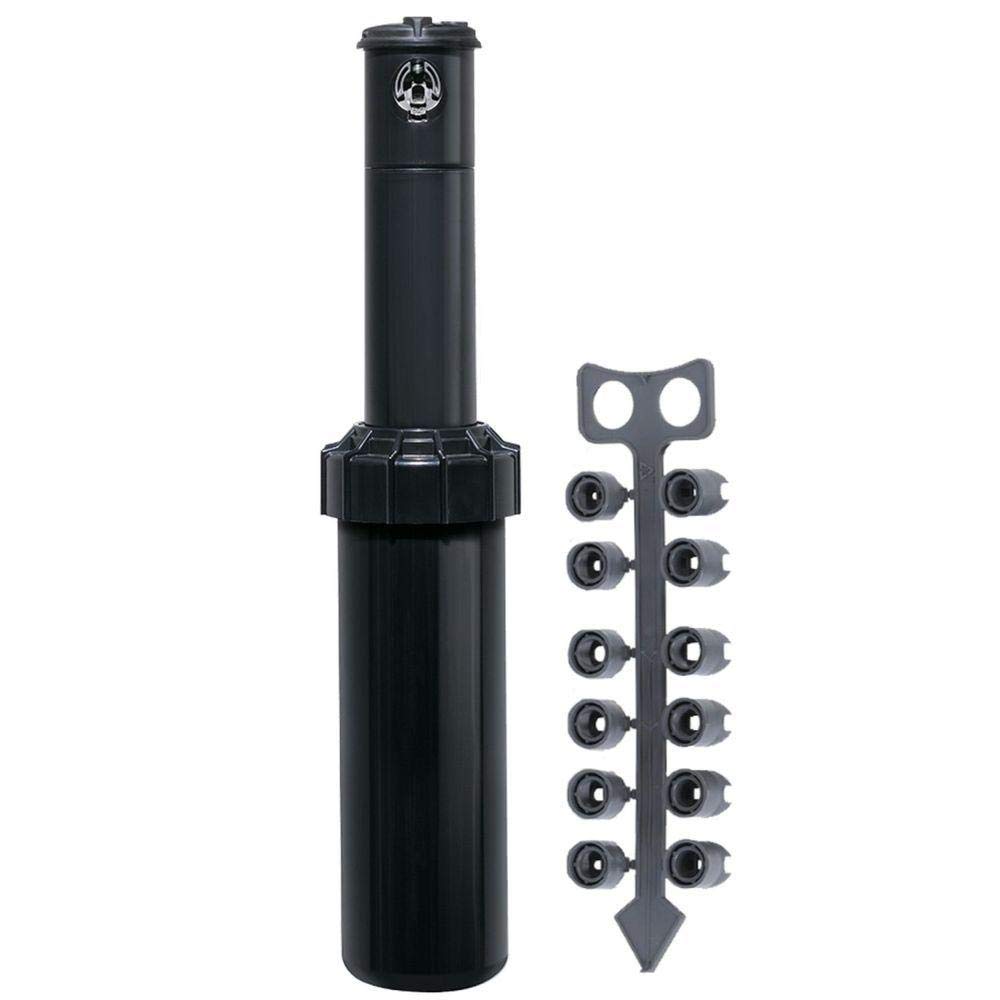

  • 1 Nozzle Tree per Rotor. (Includes 8 standard & 4 Low angle nozzles)
  • 1 Rotor Key included in purchase of 10+ Rotors. 2 keys per case of 20.
  • No Tools needed for adjustment of arc from 40° to 360°! Tool is needed to lift the riser, change out nozzles, and adjust the radius.
Operating Specifications
  • Pop-up Height: 5''
  • Radius: 25' to 50'
  • Flow Rate: 0.74 to 9.70 GPM
  • Arc: 40° to 360° (reversing 360°), adjustable
  • Check Valve: Yes
  • Effluent: No
  • Inlet Size: 3/4'' FPT
  • Recommended Operating Pressure: 45 PSI
  • Operating pressure range: 25 to 65 PSI
  • Nozzle trajectory: Std = 25 degrees, Low angle = 10 degrees
Overview

The new Toro T5 RapidSet Series Rotor has the features to satisfy all your basic irrigation needs while surprising you with a few extras. The T5 offers an extra inch of pop-up height compared to most competitive units. For those day-in and day-out installations, the T5 is the only rotor you’ll need.

Features
  • Riser: Plastic
  • Arc setting: 40 to 360 degrees, 360 degree non-reversing

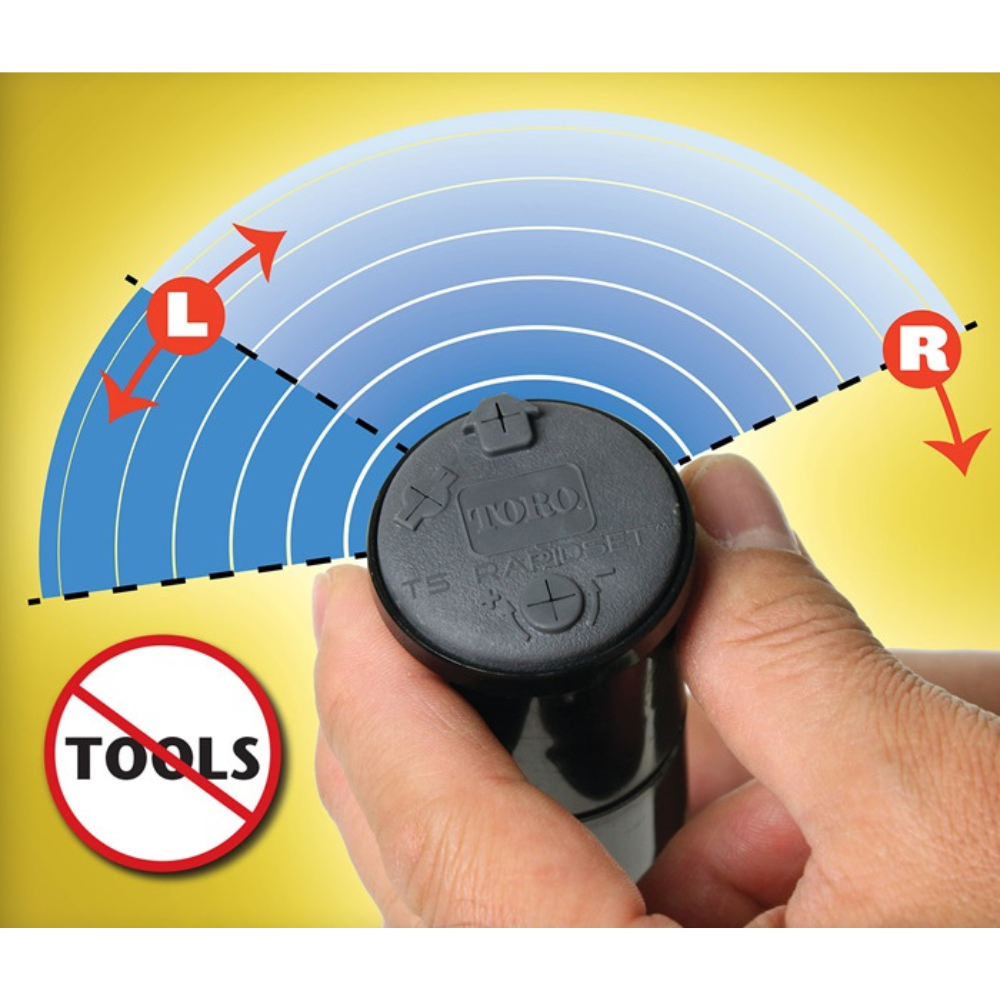

  • Arc adjustments from 40° to 360° can be made quickly with a few twists of the turret – no tools required. The patent-pending RapidSet slip clutch also protects against gear damage caused by intentional vandalism or inexperienced users.
  • Pre-installed drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life. (up to 10' of elevation)

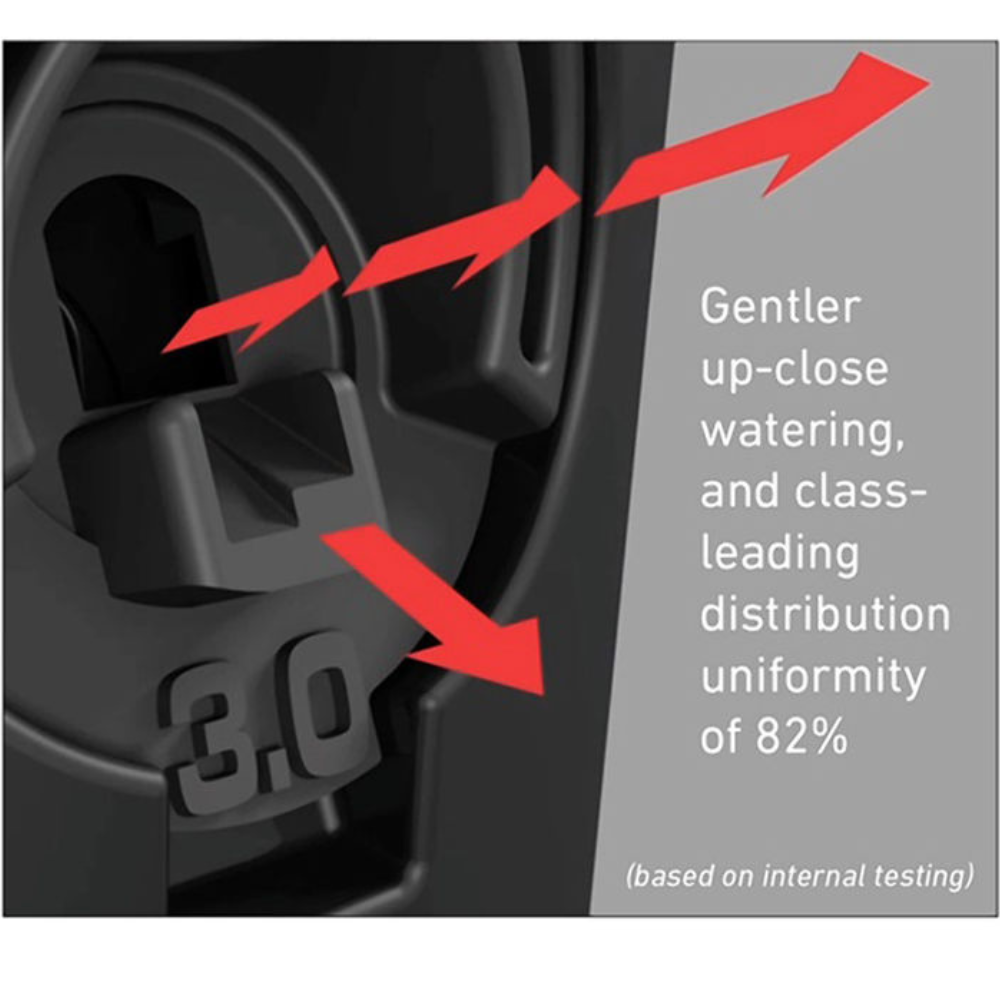

  • The T5 RapidSet rotor comes with a full set of 8 standard nozzles (25° trajectory) and 4 low angle (10° trajectory) nozzles. The nozzles’ unique geometry creates a zone of low pressure just below the main stream to gently guide water downward for unmatched uniformity without forcefully washing out newly-laid seeds.

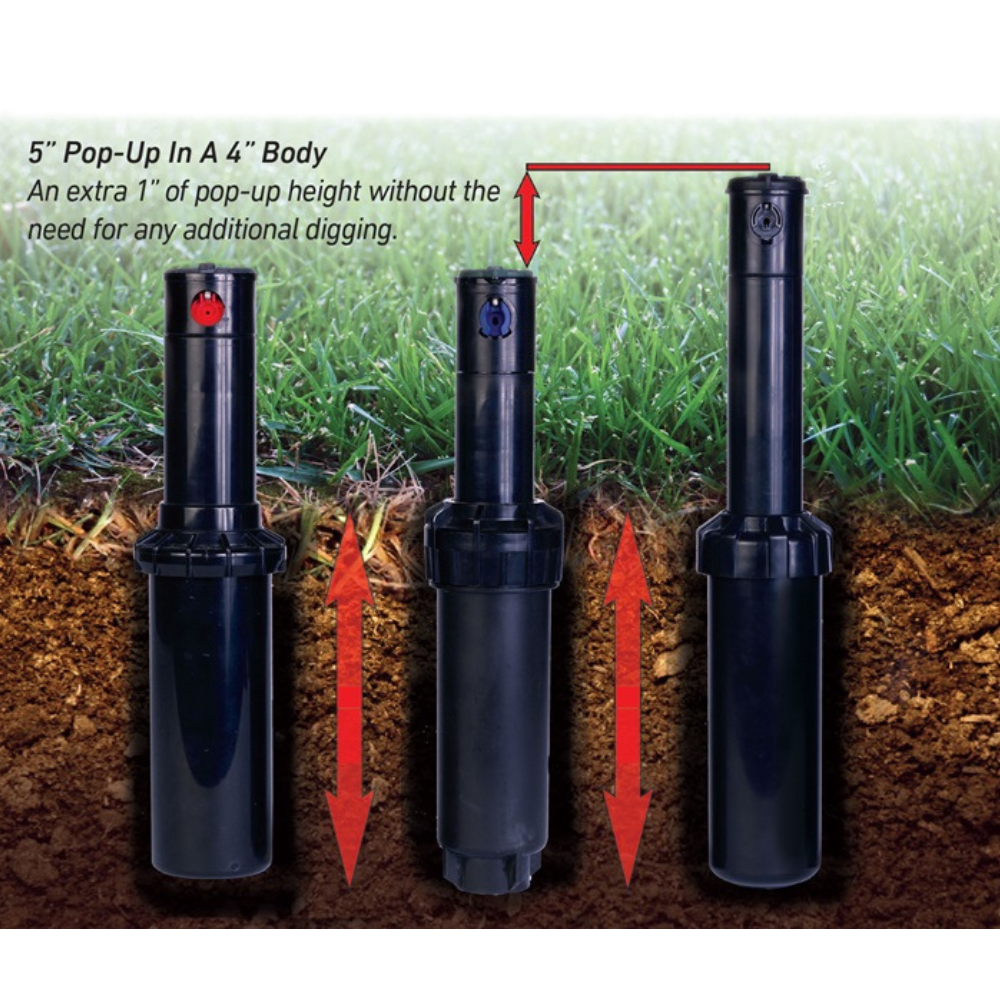

  • Easily replaces most competitive 4” pop-up rotors in the same footprint, but delivers an extra inch of nozzle clearance.
Dimensions
  • Overall height:  7 1/2''
  • Pop-up height: 5"
  • Body diameter: 2 1/4''
  • Inlet size: ¾"
Downloads
