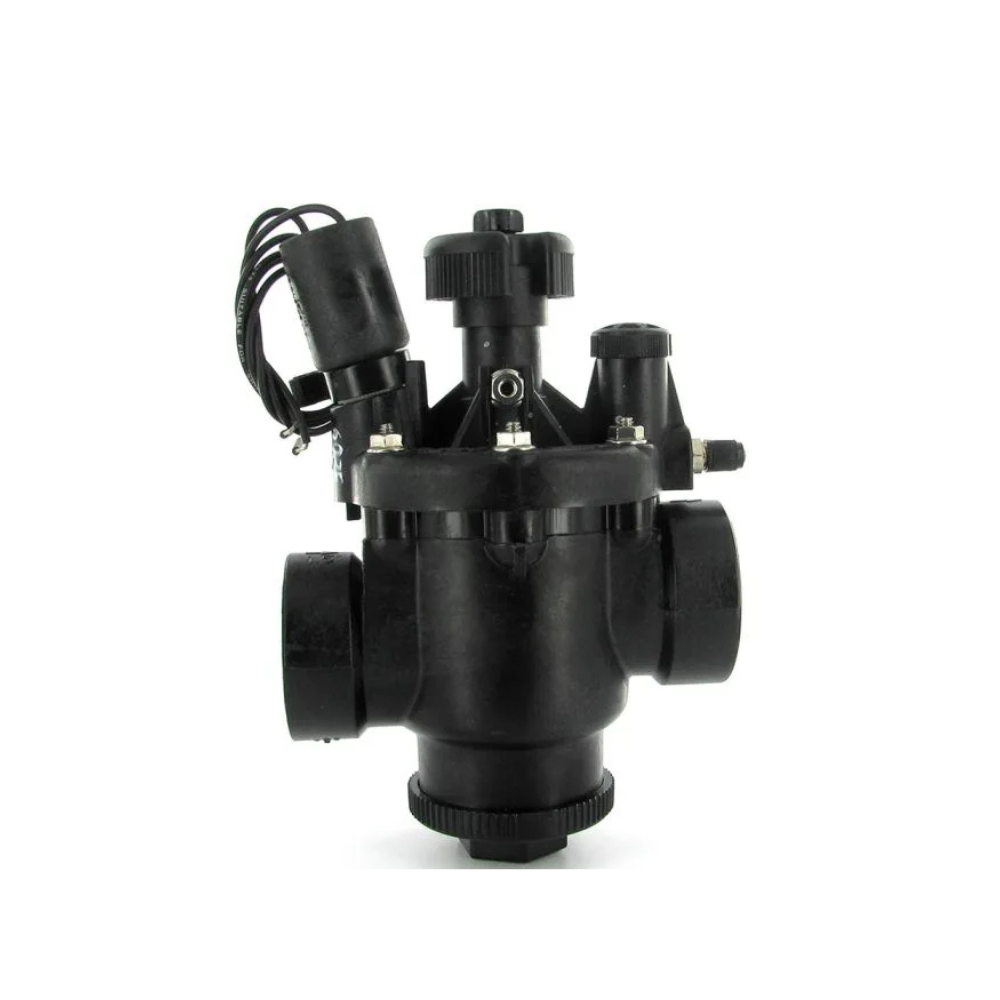

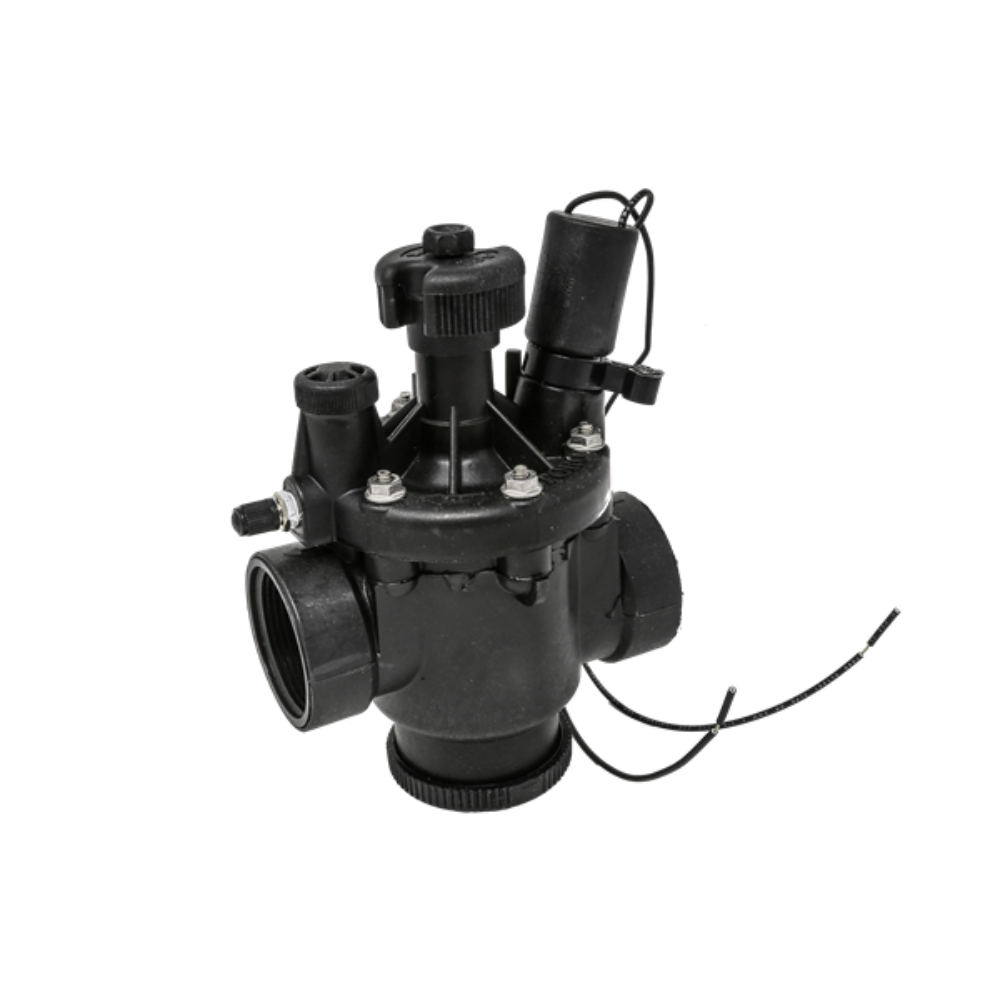

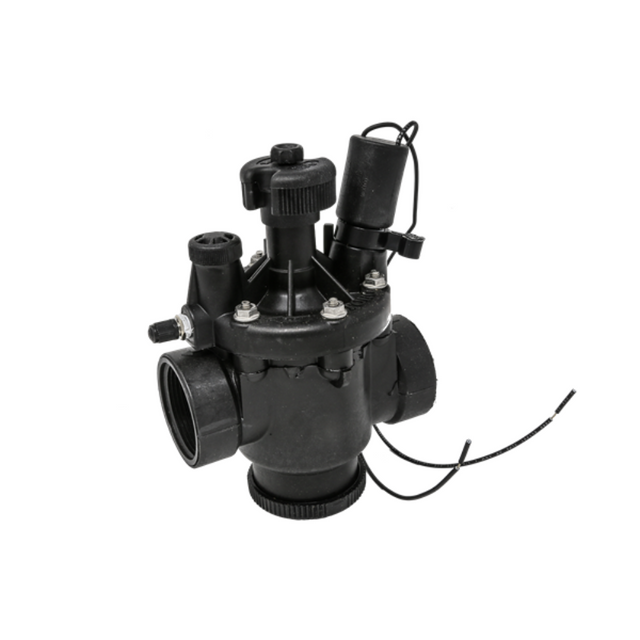

Toro - P220-26-06 - 1.5'' Inline / Angle Valve w/ Flow Control (FPT x FPT)

Toro  |  SKU: P220-26-06
$14058 $24000

Toro P220 Series In-Line / Angle Valve with Flow Control 1-1/2 in. FPT

These heavy-duty glassfilled nylon valves are specially designed for commercial applications with pressures up to 220 psi (15.2 BAR), but also have the ability to pressure regulate the flow through the valve anywhere from 5–100 psi (.3 - 6.9 BAR)

Features
  • Size: 1.5'' Female Pipe Thread
  • Durable Glass-Filled Nylon - Ensures the P-220 can operate at pressures up to 220 psi.
  • Precise Pressure Control Option - Compact EZReg® dial-design technology (factory or field installed - no need to remove solenoid).
  • Internal And External Manual Bleed - Keeps valve box dry and easy to use.
  • Schrader Valve Pre-Installed - Simple verification of downstream pressure.
  • Tough glass-filled nylon and stainless steel construction
  • Internal and External bleed
  • low control independent of solenoid
  • Self-aligning bonnet to ensure correct installation
  • Self-cleaning, stainless steel metering rod
  • Low-power requirement for longer wire runs
Operating Specifications
  • Flow Range: 30 to 100 GPM
  • Operating Pressure– 10 to 220 psi
  • 118-5982 Solenoid: 24 VAC (50/60 Hz) Standard
       – Inrush: 60 Hz: 0.4 amps
       – Holding: 60 Hz: 0.2 amps
Optional Accessories (Sold Separately - Please email contact@cheapsprinklers.com if you need)
  • EZR-30 - EZReg®, 5–30 psi Regulator Module
  • EZR-100 - EZReg®, 5–100 psi Regulator Module
  • EFF-KIT-60Hz - Effluent Water (Lavender) Solenoid Assembly (24 VAC, 60 Hz) and Warning Tag
  • 118-5982 Solenoid: 24 VAC (50/60 Hz) Standard
  • DCLS-P - Potted DC Latching Solenoid Assembly
  • SGS-12 - Spike Guard™ Solenoid: 24 VAC (50/60 Hz)
Dimensions
  • H: 7 1/4''
  • W: 3 5/8''
Downloads
