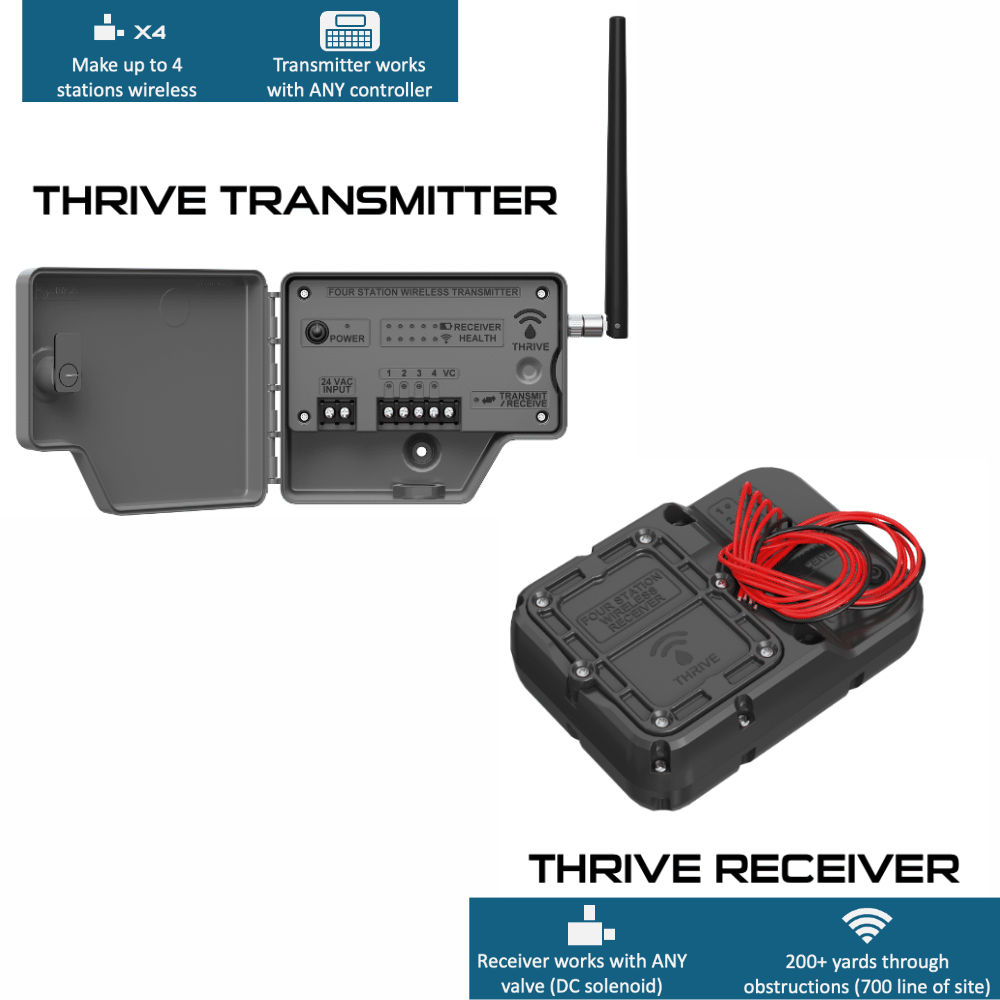

Thrive Smart Systems - EVO 4-Station Wireless Transmitter and Receiver - TSS-EVO-04

The Thrive EVO™ is an easy-to-use irrigation controller accessory that should be used when the existing wire path is lost, broken or beyond repair.

The EVO™ is compatible with most multi-wire irrigation controllers which simply converts the 24 VAC station signal into a wireless communication up to 200 yards away.

No programing. No hassell. No wire.

Features

• Reliable and consistent communication up to 200 yards (results can vary depending on existing site conditions)
• Compatible with most multi-wire irrigation controllers
• Manage up to 4 new or existing stations
• The Thrive Transmitter™ is housed in a weather-resistant, key-lock entry, rugged plastic enclosure, using a CH751 key
• The Thrive Transmitter™ is powered by the adjacent irrigation controller’s 24 VAC auxiliary power output
• The Thrive Receiver™ is powered by two (qty), 9-volt lithium batteries that are projected to last up to 2 irrigation seasons depending on site conditions and irrigation requirements
• The Thrive Receiver™ is housed is a IP67-rated, rugged plastic housing
• The Thrive Receiver™ battery cassette was developed with the contractor in mind. Installation and replacement is a “snap”
• The Thrive Receiver™ has a built in failsafe program to prevent overwatering during blackout or connection loss
• Devices come Pre-paired with matching frequencies – no field programming required

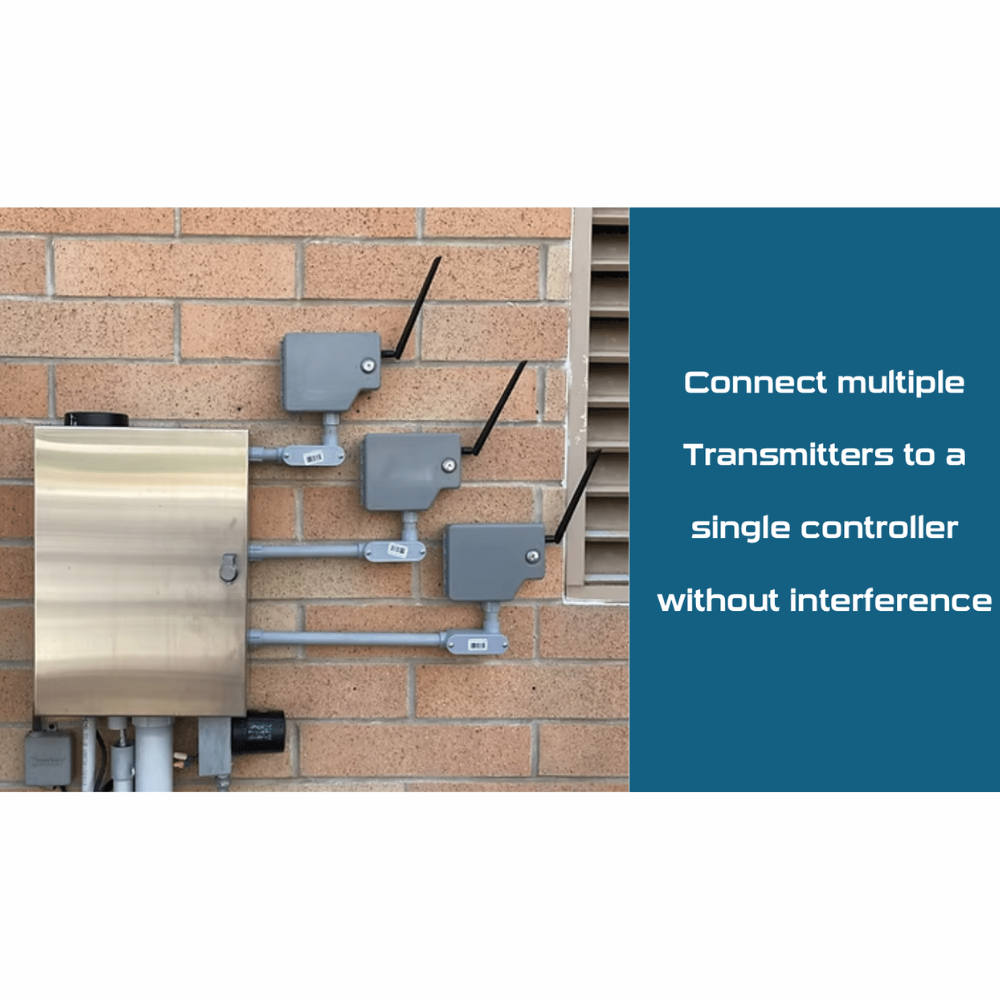

• Multiple devices can be installed on one site or adjacent sites without interference of adjacent devices
• 3-year warranty
• Patent Pending

Maximum Wire Runs

• Maximum Wire Lengths from Receiver to Remote-Control Valve

Electrical Specs

Thrive Transmitter:

• Maximum AC Input Voltage - 30 VAC
• Minimum AC Input Voltage - 19 VAC
• Maximum Stations (Zones) Active Together - 4
• Temperature Range: -10°F -- 140°F (-23°C -- 60°C)
• Dimensions: 6.6'' x 5'' x 2''

Thrive Receiver:

• Maximum DC Input Voltage - 9 Volts DC
• Maximum DC Input Voltage - 5.5 Volts DC
• Temperature Range:: -10°F -- 140°F (-23°C -- 60°C)

• Dimensions: 6'' x 2'' x 2''

Overview

This easy-to-use irrigation controller accessory is compatible with most multi-wire irrigation controllers. It allows you to use any existing or “open” stations by connecting a wire path between the Thrive Transmitter™ and an irrigation controller.

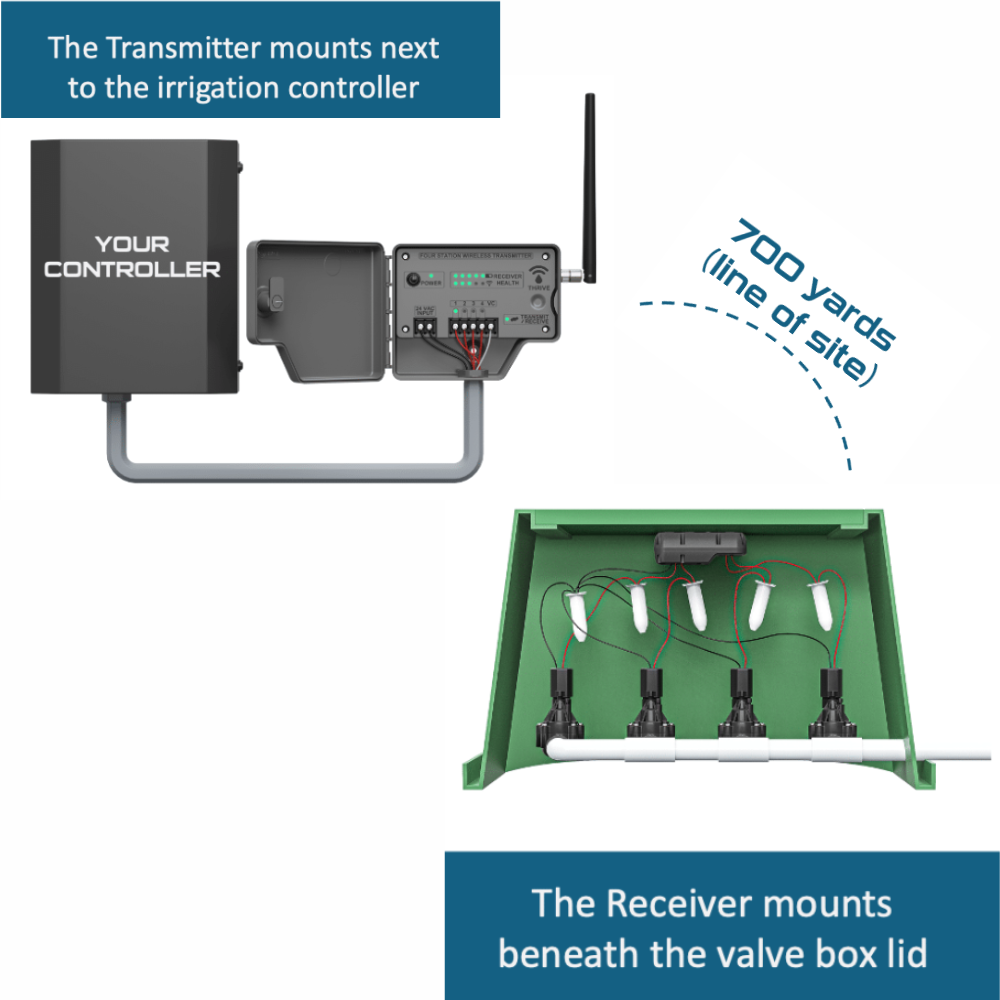

When the irrigation controller sends a signal to a valve, the Thrive Transmitter™ simply sends this message wirelessly up to 200 yards away to a Thrive Receiver™. The Receiver can control up to four (4 qty) valves. Replace the AC solenoid with a DC latching solenoid.

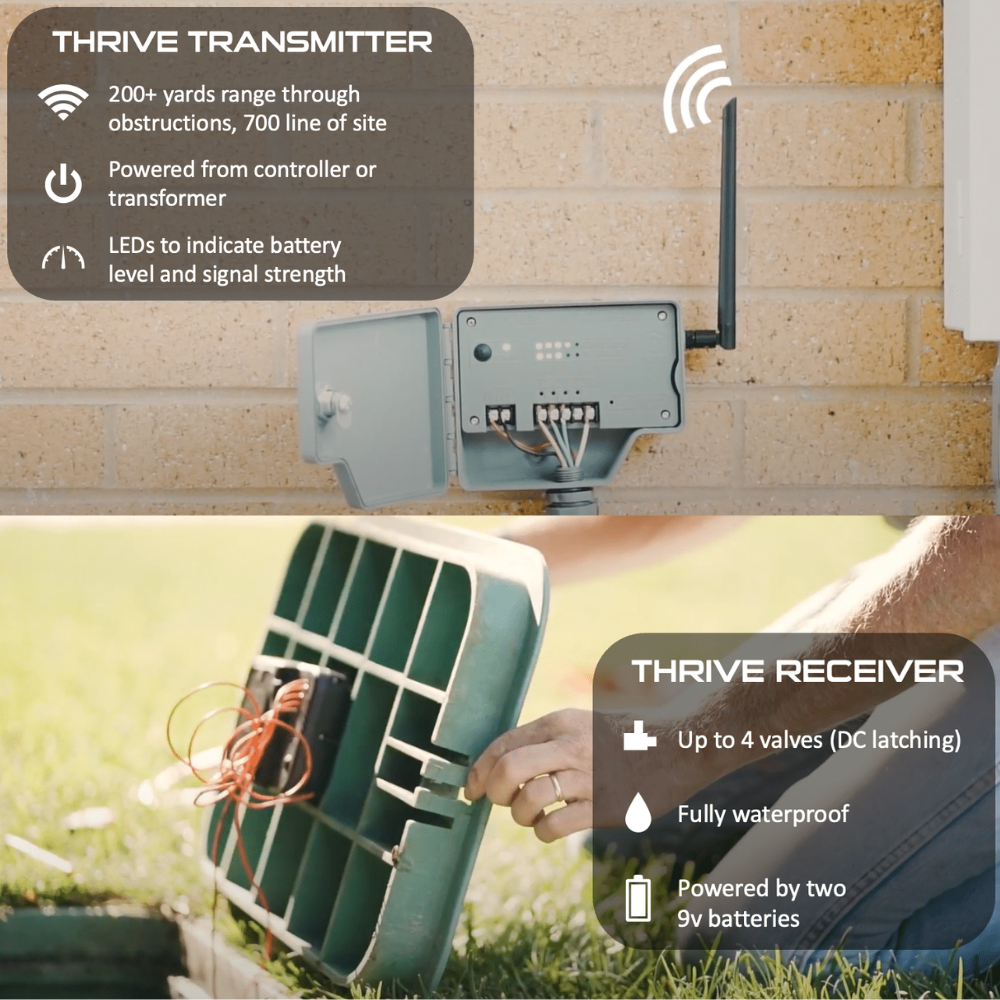

The Thrive Receiver™ is secured to the underside of any rectangular irrigation valve box so that it’s hidden from view and potential vandalism.

No field programming of the EVO™ is needed. Simply use the power and capabilities of your smart irrigation controller to meet local water conservation requirements.

The EVO™ has the capability of being able to operate all four stations at the same time, assuming the irrigation controller has this capability. Patent Pending.

2-Wire Compatibility

Known Compatible Controllers

• Rainbird, ESP-LXD Series 2- Wire Decoder Controller
• Hunter, ACC 99D 2-Wire Controller
• Hunter, ACC2 Decoder Controller
• Hydropoint, WeatherTRAK 2-Wire PBT (OLD STLYE)

Known Noncompatible Controllers

• Rainbird, ESP-LXIVM 2-Wire Controller with Smart Valve Technology
• ** Hydropoint, WeatherTRAK h5O (NEW STYLE)

**Compatible only if 1) Electrical alerts are turned off and 2) Only use a Hydropoint WetherTRAK 2-wire Decoder 2 station**

Manuals & Literature

• EVO Installation Manual - (Click here for Video Tutorial)
• EVO Full User Manual
• Mounting Template
• EVO Winterization Instructions
• Troubleshooting Guide
