38% off
Superior - 950300 - 3'' Brass In-Line Valve w/ Flow Control (NPT)
Superior | SKU:
950300
$1,27097
$2,03982
Unit price
/
Unavailable
Superior - 950300 - 3'' Brass In-Line Valve w/ Flow Control (NPT) is backordered and will ship as soon as it is back in stock.

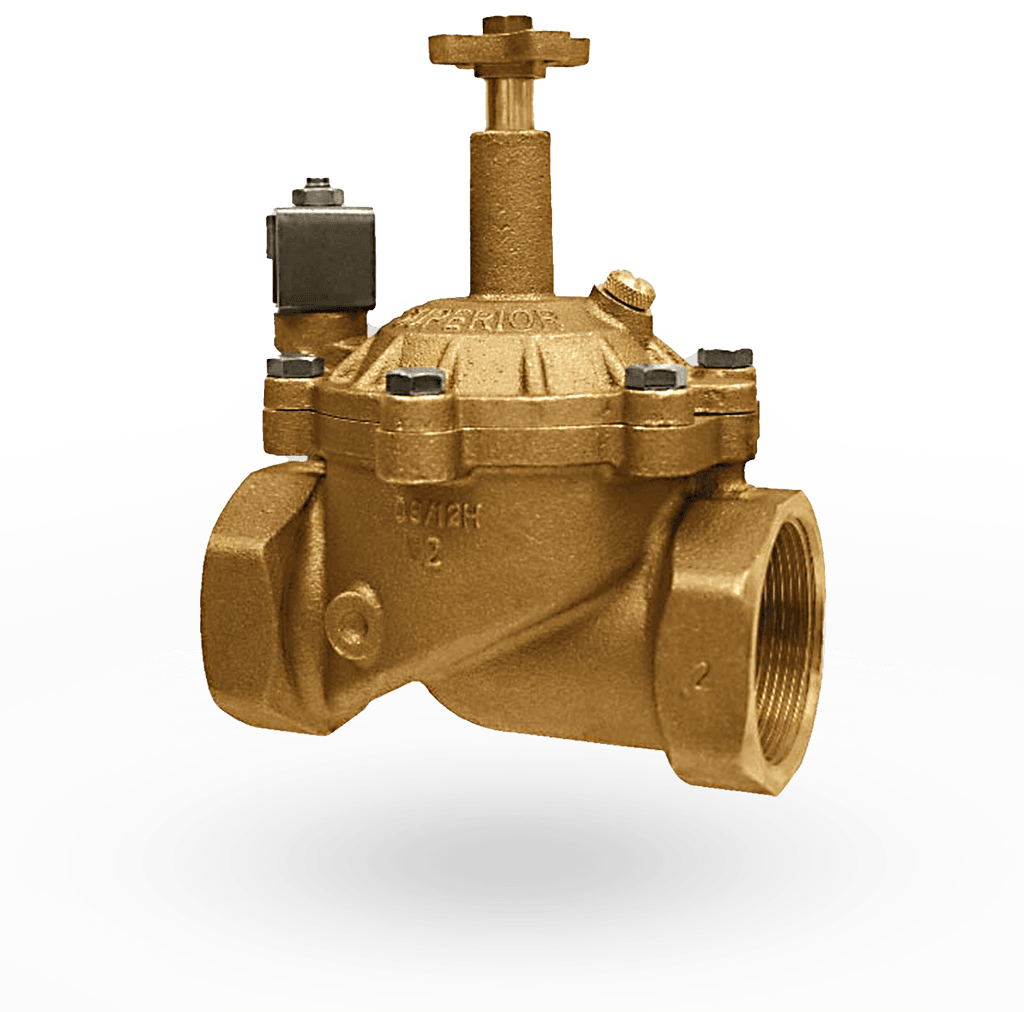

Superior 950300 - 3'' FPT Electric Brass In-Line Valve with Forward Flow Design & Flow Control
Specifications
- Application: Commercial/municipal
- Size: 3'' Female Pipe Thread
- Solenoid: Standard 24 VAC (Optional DC Latching Solenoid purchased separately)
- Flow: 100 to 320 GPM
- Pressure: 20 to 200 PSI
- Temperature: up to 180° F
- Dimensions: 11 3/4” x 9 13/16”
Features
- Made of high-quality Red Brass
- Self Cleaning - Self-cleaning scrubbing rod and filter system provides optimal protection against particles entering the diaphragm chamber
- Low Seat - Low seat design decreases pressure loss and improves flow
- Diaphragm Reliability - Two-piece internal assembly protects diaphragm
- 600 lb. Test Nylon Reinforced EPDM Diaphragm - Offers long lasting performance in both potable and dirty/recycled water applications. All EPDM rubber parts outlast commonly used Buna-N parts when exposed to reclaimed water.
- Rotating Coil - Coil can be rotated 360° and removed without removing solenoid operator
- Flow Control - Maximize efficiency and prolong the life of a system by fine tuning flow and pressure for each zone.
- External Bleed for manual operation
- All Superior valves are 100% water-tested prior to shipping, you can be sure they are working properly before ever coming into your hands.
- Consistent design ensures backward compatibility
- Warranty period: 5 years
Manuals & Literature
-
Box QuantityN/A
