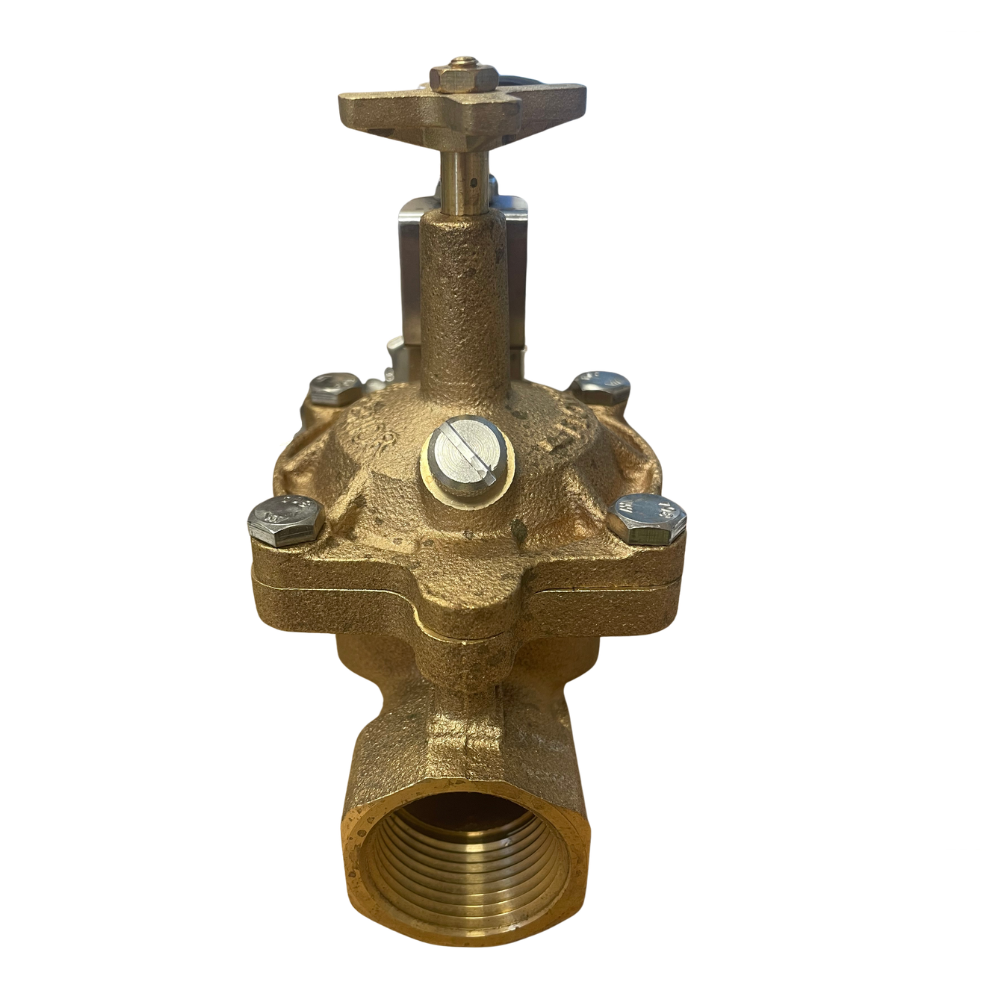

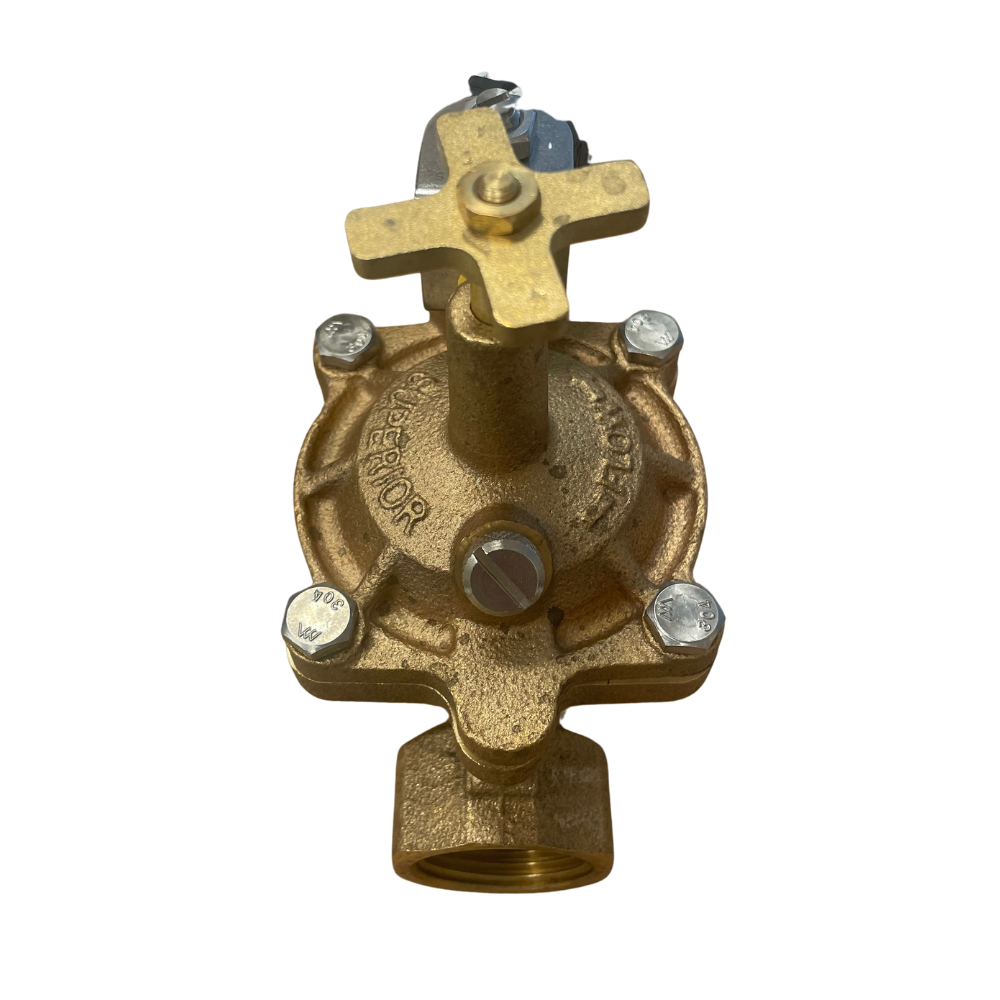

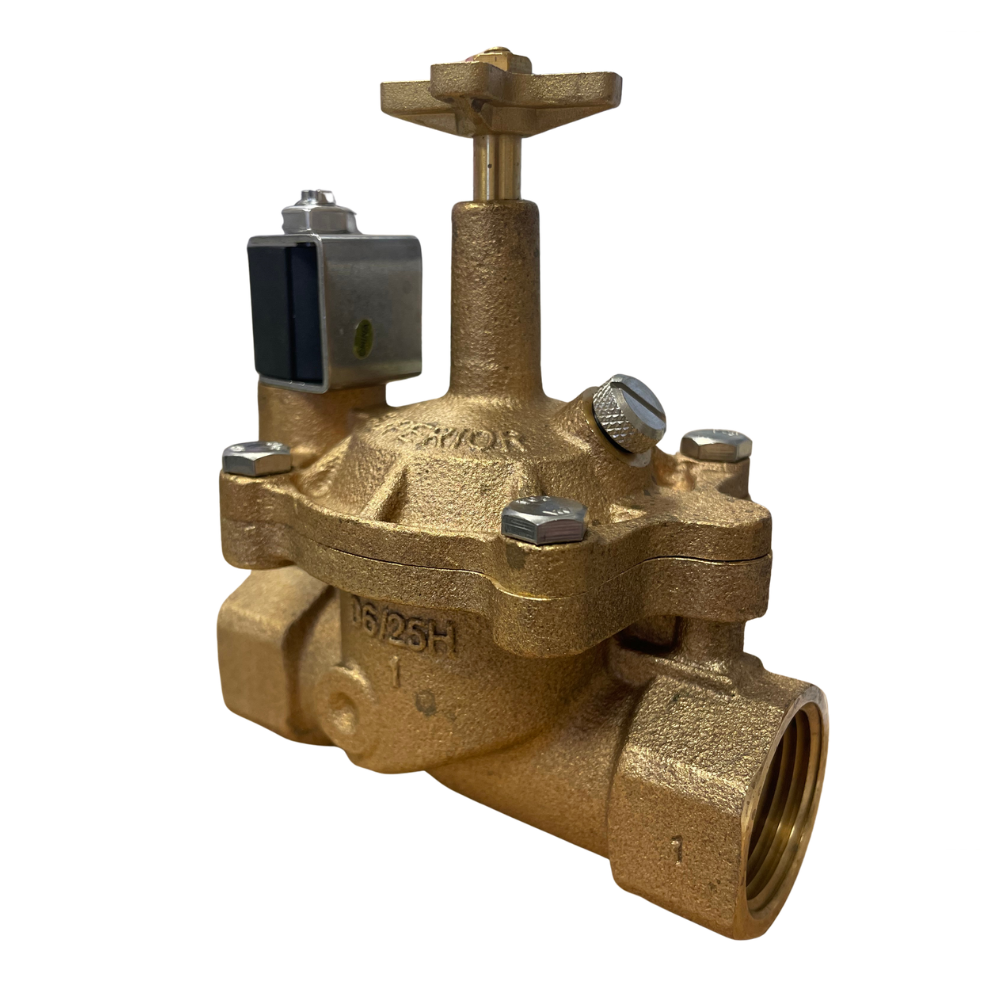

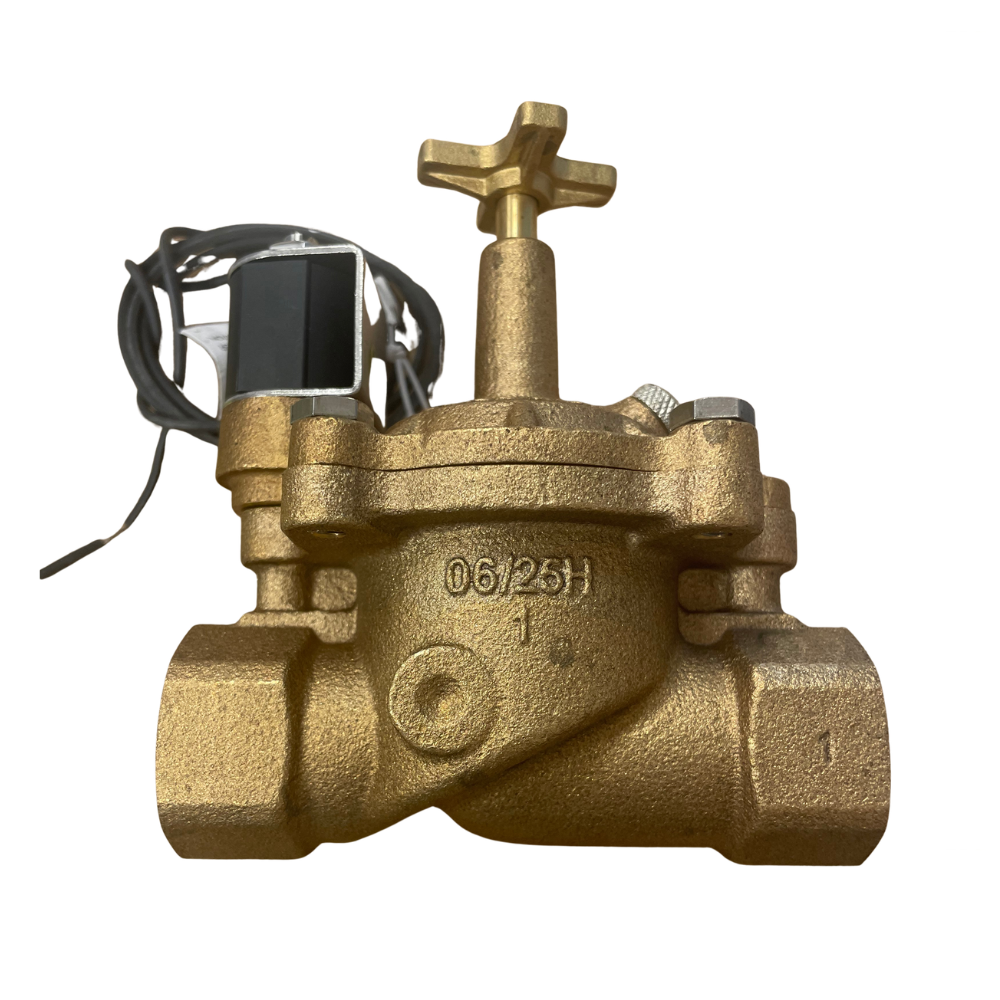

Superior - 950100 - 1'' Brass In-Line Valve w/ Flow Control (NPT)

Superior  |  SKU: 950100
$13164 $21128


Superior 950100 - 1'' FPT Electric Brass In-Line Valve with Forward Flow Design & Flow Control

Specifications
  • Application: Commercial/municipal
  • Size: 1'' Female Pipe Thread
  • Solenoid: Standard 24 VAC (Optional DC Latching Solenoid purchased separately)
  • Flow: 5 to 40 GPM
  • Pressure: 20 to 200 PSI
  • Temperature: up to 180° F
  • Dimensions: 5 5/16” x 4 13/32”
Features
  • Made of high-quality Red Brass
  • Self Cleaning - Self-cleaning scrubbing rod and filter system provides optimal protection against particles entering the diaphragm chamber
  • Low Seat - Low seat design decreases pressure loss and improves flow
  • Diaphragm Reliability - Two-piece internal assembly protects diaphragm
  • 600 lb. Test Nylon Reinforced EPDM Diaphragm - Offers long lasting performance in both potable and dirty/recycled water applications. All EPDM rubber parts outlast commonly used Buna-N parts when exposed to reclaimed water.
  • Rotating Coil - Coil can be rotated 360° and removed without removing solenoid operator
  • Flow Control - Maximize efficiency and prolong the life of a system by fine tuning flow and pressure for each zone.
  • External Bleed for manual operation
  • All Superior valves are 100% water-tested prior to shipping, you can be sure they are working properly before ever coming into your hands.
  • Consistent design ensures backward compatibility
  • Warranty period: 5 years

Manuals & Literature
