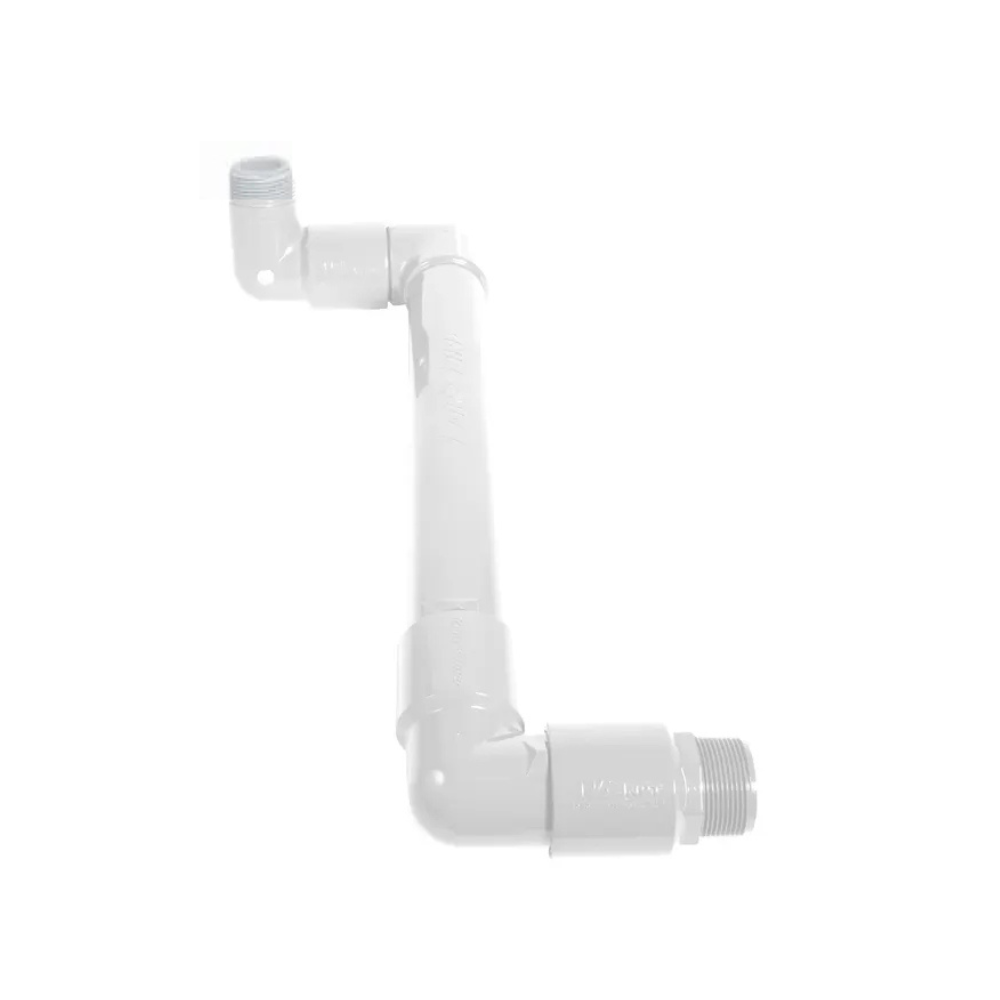

Rain Bird - TSJ12 - 1'' MPT Swing Joint - 12'' Long

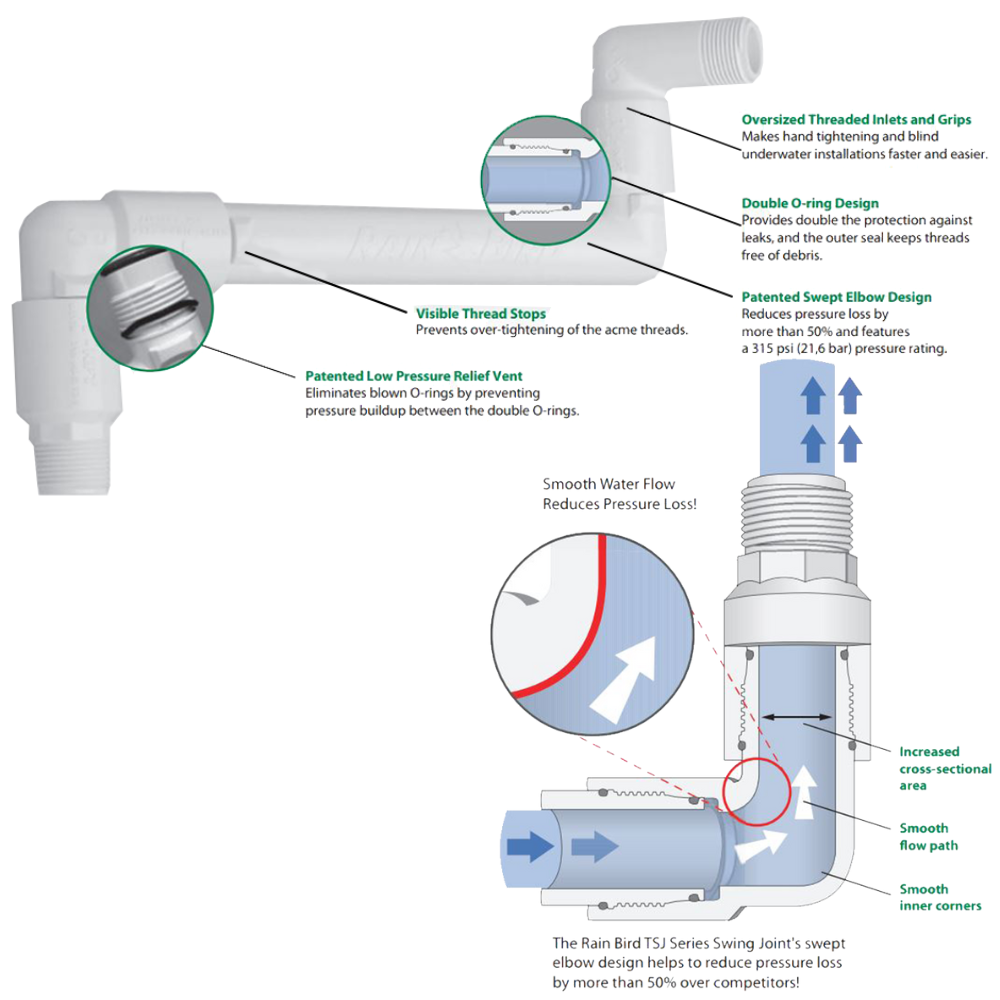

• Unique swept elbow flow characteristics optimize rotor performance.
• Maintain constant pressure at the rotor inlet for improved range of water application.
• Preassembled units save the contractor time and reduce installation costs.
• Excellent structural integrity from the swept elbow design reduces the costs associated with fatigue related failures.
• Oversized threaded inlets and large visible stops make hand tightening simple.
• Double O Ring provides extra protection against leaks and keeps threads clean of debris making hand tightening easy.

Operating Range (TSJ)

• Pressure Rating: 315 psi at 73º F
• 1'' Joint Pressure Loss: 1.5 psi at 18 gpm; 2.5 psi at 23 gpm

TSJ Series Swing Joints connect 1'' sprinklers or quick coupler valves to lateral pipes. This allows for easy adjustment of head to grade to prevent heads or pipes from breaking when run over by equipment.

Downloads

• TSJ and TSJ-PRS Series Swing Joints Tech Spec
