Rain Bird - LXD-BUNDLE - 2-Wire Decoder Controller Starter Kit
Rain Bird - LXD-BUNDLE - 2-Wire Decoder Controller Starter Kit is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
50-200 station capable Two-Wire Decoder Commercial Controller Kit

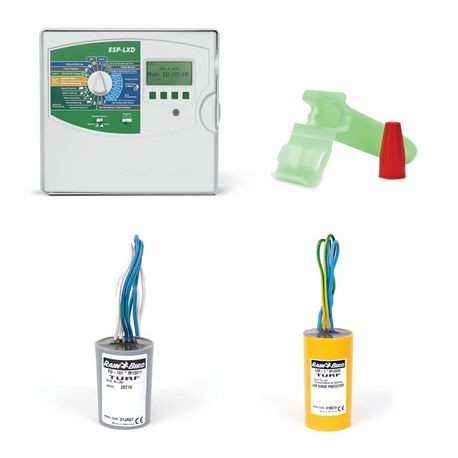

Kit Includes:
- (1) ESP-LXD Controller
- (15) FD101 Decoders
- (3) LSP1TURF Surge Protectors
- (40) DBRY Wire Connectors
The ESP-LXD controller has been designed to maintain the look, feel and ease of programming of the ESP-LXME controller but with an interface to a two-wire path for decoder-based irrigation. The ESP-LXD controller can manage up to 50 stations but can easily be expanded for use with up to 200 stations. Flow Management is also built into every ESP-LXD controller.
Features
Controller Features
- 50-station capability standard expandable to 200 stations with optional ESPLXD-SM75 module
- Four available sensor inputs (one wired plus up to three decoder managed) with override switch
- Five flow sensors supported
- Supported decoders: FD-101TURF, FD-102TURF, FD-202TURF, FD-401TURF, FD-601TURF
- Supports SD-210TURF sensor decoders (flow sensing and weather sensor support) and LSP-1 line surge protectors (one per 500 feet of two-wire path required)
- Central Control capable with Rain Bird IQ Communications Cartridges and software (see pg. 102)
- Advanced Features From Cycle+Soak„¢ to Contractor Default Program„¢, the ESP-LXD offers innovative features proven to cut installation expenses, troubleshooting time and water use
- Program backup and barcode decoder address entry with the optional PBCLXD
- Six user-selectable languages
- Removable front panel is programmable under battery power
- Plastic, locking, UV resistant, wall-mount case, Optional Metal and Stainless Steel Case & Pedestal
- Compatible with Rain Bird Landscape Irrigation and Maintenance Remote - Flow Smart Module„¢ factory installed or field upgradable
- Plastic, locking, UV resistant, wall-mount case, Optional Metal and Stainless Steel Case & Pedestal
Water Management Features
- Cycle+Soak„¢ by station
- Rain Delay
- Calendar Day Off
- Programmable Delay Between Stations by program
- Master Valve programmable by station
- Sensor programmable by station
- Program & Monthly Seasonal Adjust
Diagnostic Features
- Programming prompts
- Alarm light with external case lens
- Electronic circuit breaker
- Program review
- Variable test program
- Two-wire diagnostics to simplify and expedite troubleshooting
Specs
Operating Specifications
- Station timing: 0 min to 12 hrs
- Program level and global Monthly Seasonal Adjust; 0% to 300% (16 hrs maximum station run time)
- 4 independent programs (ABCD); ABC programs stack, ABCD overlap
- 8 start times per program
- Program Day Cycles include Custom days of the week, Odd, Odd no 31st, Even, and Cyclical dates
- Manual station, program, test program
Upgrade Options
- LXMM metal wall-mount case
- LXMM-PED metal pedestal
- IQ-NCC Network Communication Cartridge
- ESP-LXD-SM75 75-station module
Electrical Specifications
-
Input required: 120 VAC ± 10%, 60Hz (International models: 230 VAC ± 10%, 50Hz; Australian Models: 240 VAC ± 10%, 50Hz)
- Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule
- Multi-valve station capacity: up to 2 solenoid valves per station; simultaneous operation of up to eight solenoids and/or master valves
Downloads
- ESP-LXD Brochure
- Tech Spec
- Controller Manual
- WR2 Wiring Diagram
- Grounding System Recommendations Guide
- Controller Programming Guide
- Flow Sensor Installation Guide
-
