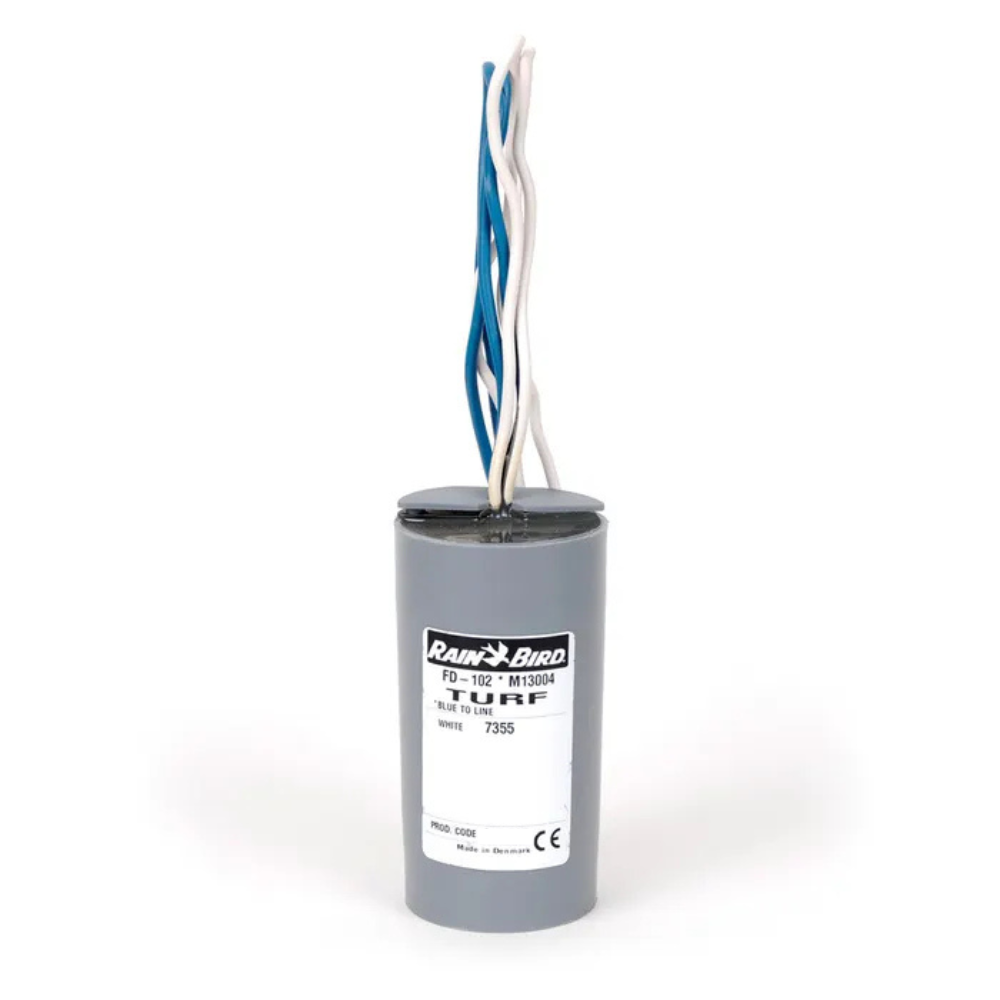

Rain Bird - FD102TURF - FD Series 2-Wire Decoder - Signal Line, 1 Pair of Valves

Rain Bird  |  SKU: FD102TURF
$29453


Operates a pair of automatic irrigation valves

Specs
  • Mounting: In valve box (recommended) or direct burial
  • Power Draw:
    • FD-102TURF: 0.5 mA (idle) 18 mA (per active solenoid)
  • Dimensions:
    • FD-102TURF: Length: 3.35 in. (85 mm), Diameter: 1.77 in. (45 mm)
  • Solenoids:
    • FD-102TURF: 1 or 2 simultaneously
  • Wires:
    • FD-102TURF: Blue to cable, white to solenoid
  • Address pre-coded from the factory (no switches)
  • Easy, cost-effective installation, expansion and upgrade for Rain Bird ESP-LXD and/or SiteControl two-wire decoder systems
  • Installed out of sight and protected from the elements and vandalism
  • Enables advanced diagnostics and sensor features
  • Use with Rain Bird DB Series Wire Connectors for the most reliable, water-tight connections

Rain Bird Field Decoders provide easy, cost-effective installation and expansion for SiteControl Decoder or ESP-LXD Decoder Central Control Systems. Decoders are installed out of sight to help protect them from the elements and vandalism.

A technology long-since proven on golf courses around the world, Rain Bird decoders provide "best-in-class" field control on centrally controlled 2-wire irrigation systems. Installed underground and featuring simple, low-cost wiring, decoders are an aesthetically pleasing, full-featured, economical option for reliable in-field control.

A simple wiring configuration and absence of protective enclosures keeps installation and maintenance costs low. Rain Bird decoders are a "true lower than 30 volt system that utilize a two-wire path of 14-gauge wire connecting the central control system, decoders and valves or valve-in-head sprinklers.

With all electronic components fully sealed within a water-tight enclosure and buried underground, damage from floods, frost, rodents or vandals is virtually eliminated. Rain Bird decoders are an especially good choice for flood plains.
