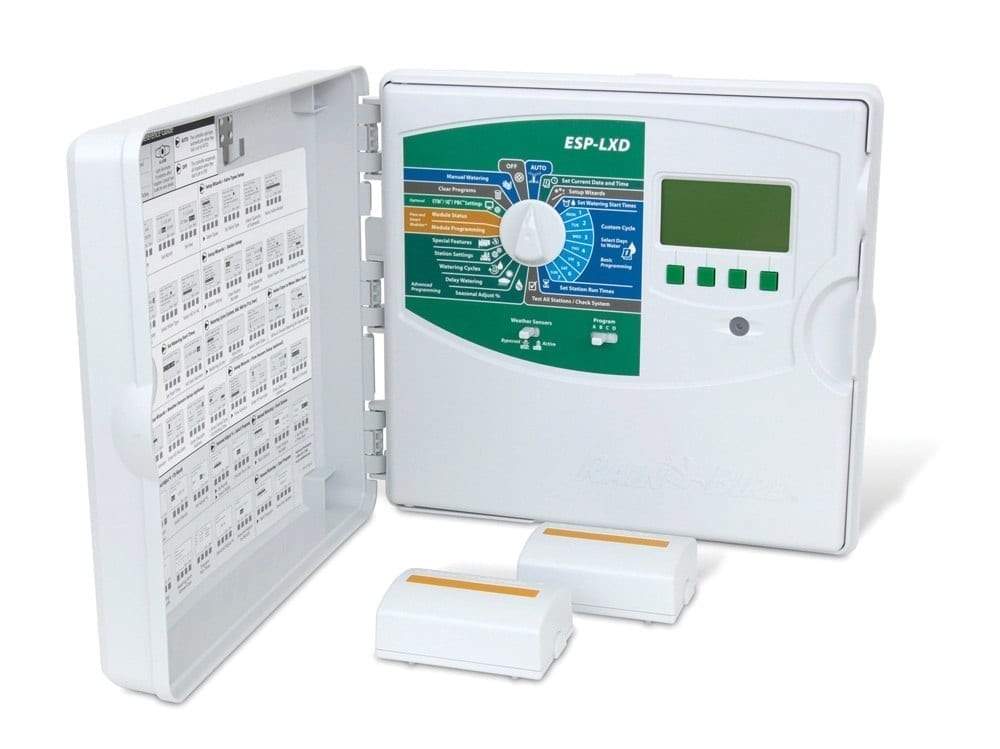

Rain Bird - ESPLXD - 2-Wire Decoder Controller
by Rain Bird
SKU ESPLXD
Save 4%
Original price
$1,620.54
Current price
$1,563.82
50 “ 200 station capable Two-Wire Decoder Commercial Controller
The ESP-LXD controller has been designed to maintain the look, feel and ease of programming of the ESP-LXME controller but with an interface to a two-wire path for decoder-based irrigation. The ESP-LXD controller can manage up to 50 stations but can easily be expanded for use with up to 200 stations. Flow Management is also built into every ESP-LXD controller.
Features
Controller Features
- 50-station capability standard expandable to 200 stations with optional ESPLXD-SM75 module
- Four available sensor inputs (one wired plus up to three decoder managed) with override switch
- Five flow sensors supported
- Supported decoders: FD-101TURF, FD-102TURF, FD-202TURF, FD-401TURF, FD-601TURF
- Supports SD-210TURF sensor decoders (flow sensing and weather sensor support) and LSP-1 line surge protectors (one per 500 feet of two-wire path required)
- Central Control capable with Rain Bird IQ Communications Cartridges and software (see pg. 102)
- Advanced Features From Cycle+Soak„¢ to Contractor Default Program„¢, the ESP-LXD offers innovative features proven to cut installation expenses, troubleshooting time and water use
- Program backup and barcode decoder address entry with the optional PBCLXD
- Six user-selectable languages
- Removable front panel is programmable under battery power
- Plastic, locking, UV resistant, wall-mount case, Optional Metal and Stainless Steel Case & Pedestal
- Compatible with Rain Bird Landscape Irrigation and Maintenance Remote - Flow Smart Module„¢ factory installed or field upgradable
- Plastic, locking, UV resistant, wall-mount case, Optional Metal and Stainless Steel Case & Pedestal
Water Management Features
- Cycle+Soak„¢ by station
- Rain Delay
- Calendar Day Off
- Programmable Delay Between Stations by program
- Master Valve programmable by station
- Sensor programmable by station
- Program & Monthly Seasonal Adjust
Diagnostic Features
- Programming prompts
- Alarm light with external case lens
- Electronic circuit breaker
- Program review
- Variable test program
- Two-wire diagnostics to simplify and expedite troubleshooting
Specs
Operating Specifications
- Station timing: 0 min to 12 hrs
- Program level and global Monthly Seasonal Adjust; 0% to 300% (16 hrs maximum station run time)
- 4 independent programs (ABCD); ABC programs stack, ABCD overlap
- 8 start times per program
- Program Day Cycles include Custom days of the week, Odd, Odd no 31st, Even, and Cyclical dates
- Manual station, program, test program
Upgrade Options
- LXMM metal wall-mount case
- LXMM-PED metal pedestal
- IQ-NCC Network Communication Cartridge
- ESP-LXD-SM75 75-station module
Electrical Specifications
-
Input required: 120 VAC ± 10%, 60Hz (International models: 230 VAC ± 10%, 50Hz; Australian Models: 240 VAC ± 10%, 50Hz)
- Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule
- Multi-valve station capacity: up to 2 solenoid valves per station; simultaneous operation of up to eight solenoids and/or master valves
Downloads
- ESP-LXD Brochure
- Tech Spec
- Controller Manual
- WR2 Wiring Diagram
- Grounding System Recommendations Guide
- Controller Programming Guide
- Flow Sensor Installation Guide
