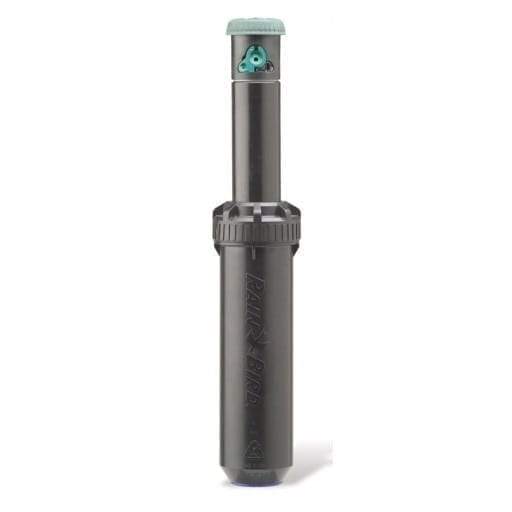

Rain Bird - 8005 - Adjustable Arc Rotor w/ SAM Check Valve

Rain Bird  |  SKU: 8005
$6924 $13585
Protect Your Turf with High Performance, Vandal- and Abuse-Resistant Rotors from 39' to 81'.

Specs
  • Radius: 39 to 81 feet (11.9 to 24.7 m)
  • 1" (26/34) NPT female threaded inlet.
  • Precipitation rate: 0.48 to 1.28 inches per hour (12 to 31 mm/h)
  • Pressure: 50 to 100 psi (3.5 to 6.9 bar)
  • Flow: 3.8 to 36.3 gpm (0.86 to 8.24 m3/h; 14.4 to 137.4 l/m)
  • SAM check device holds up to 10 feet (3.1 m) of elevation change.
  • Nozzle outlet trajectory is 25º.

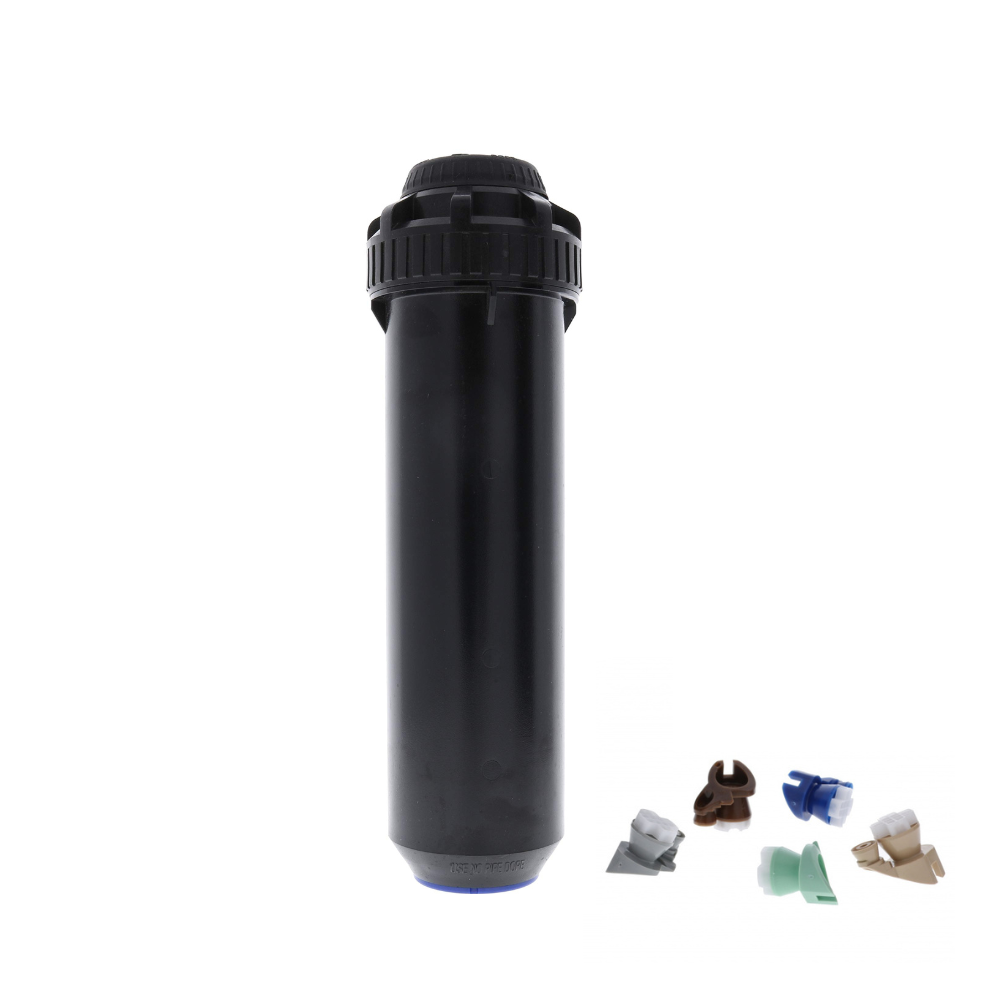

  • Rain Curtain Nozzles included: 10-gray, 12-beige, 14-light green, 16-dark brown, 18-dark blue.
  • ROTORTOOL for adjustment and changing nozzles must be purchased separately.
  • HOLDUPTOOL - Rotor Hold up Tool with Level must be purchased separately.
    Features
    • Memory Arc® returns the rotor to its original arc setting.
    • Non-strippable drive mechanism prevents damage from vandals.
    • Brass reinforcing shaft of the nozzle turret to riser withstands vandal kick.
    • Full- and part-circle operation in one unit to reduce inventory requirements.
    • Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50° to 330° part-circle, 360° non-reversing full-circle.
    • Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection.
    • Seal-A-Matic (SAM) check device/riser to help prevent low head drainage.
    • Water-lubricated gear drive.
    • Rain Curtain nozzles for optimal distribution and close-in watering resulting in superior uniformity.
    • Nozzles are interchangeable from the front with no special tools.
    • Heavy duty retract spring ensures positive pop-down.
    • Standard rubber cap. (Black)
    Dimensions
    • Exposed diameter: 1 7/8" (4,8 cm)
    • Overall diameter: 3 1/8" (7,9 cm)
    • Overall height: 10 1/8" (25,7 cm)
    • Pop-up height: 5" (12,7 cm)
    • Note: Pop-up height is measured from cover to the primary nozzle port. Overall body height is measured popped down
    Overview

    The Rain Bird® 8005 Rotor is built rugged to withstand the harsh conditions and vandalism present in commercial rotor applications. It has been designed and tested to ensure the high reliability demanded by the market today. With its extensive customer identified features, it is versatile enough to fit all applications. The Rain Bird® 8005 Rotor, with its extensive customer identified features and 80 foot radius, is ideal for watering sportsfields, parks and other large turf applications.

    Downloads
