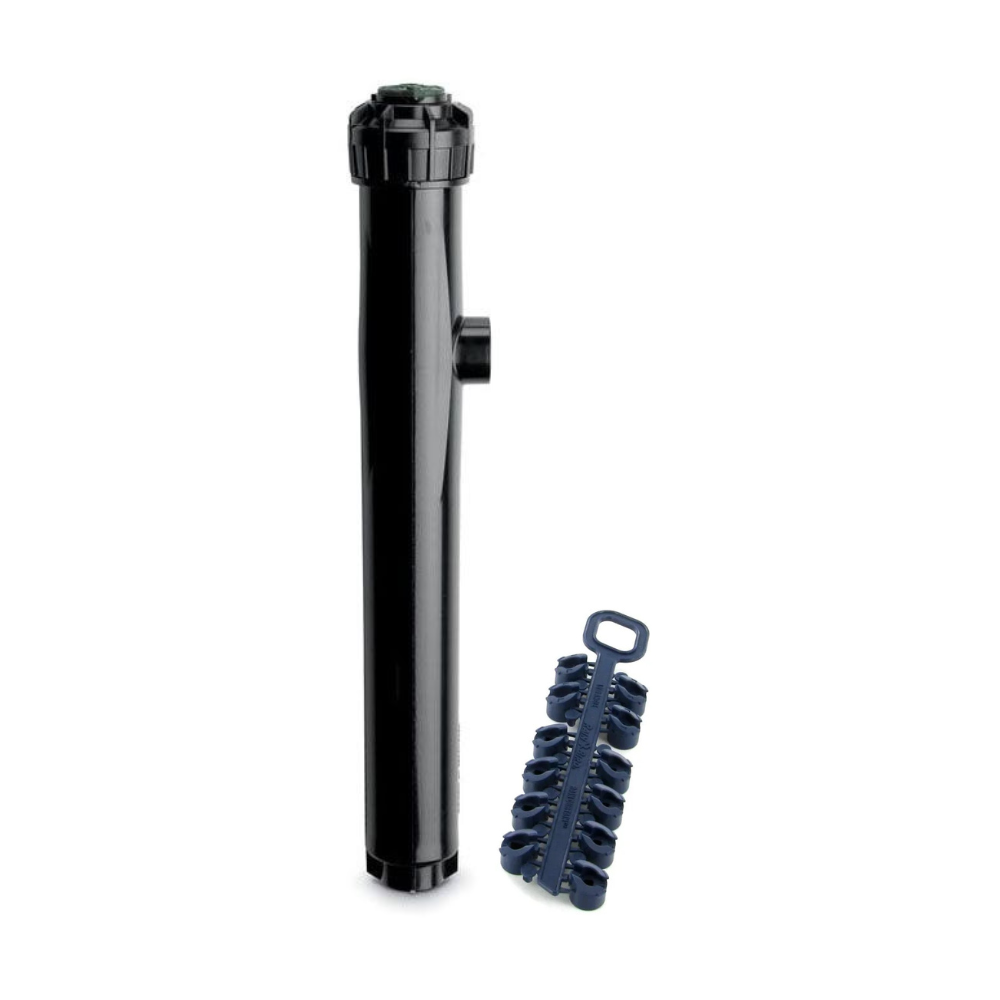

Rain Bird - 5012-PLPCS-R - 12'' 5000 Plus Series Part-Circle Rotor w/ PRS Pressure Regulation and SAM Check Valve

Save 19%
$57.75
$46.98
SKU 5012+PCSR
12 in. 5000 Series Part-Circle Pattern Pop-up Rotor with Flow Shut off, PRS Pressure Regulation and SAM Check Valve
  • Flow Shut off:
    • Turn the rotor on/off at the head for easier maintenance.
    • Flush zone and nozzle the rotor without going back and forth to a valve or controller.
    • Troubleshoot for leaks by turning off all the heads in that zone.
  • Faster maintenance with a new self-cleaning arc adjustment screw
  • Heavy-duty cover assembly for extra durability
  • Rain Curtain Nozzles
  • Slip clutch mechanism for quick adjustment on installation
  • Heavy-duty retract spring assures positive pop-down

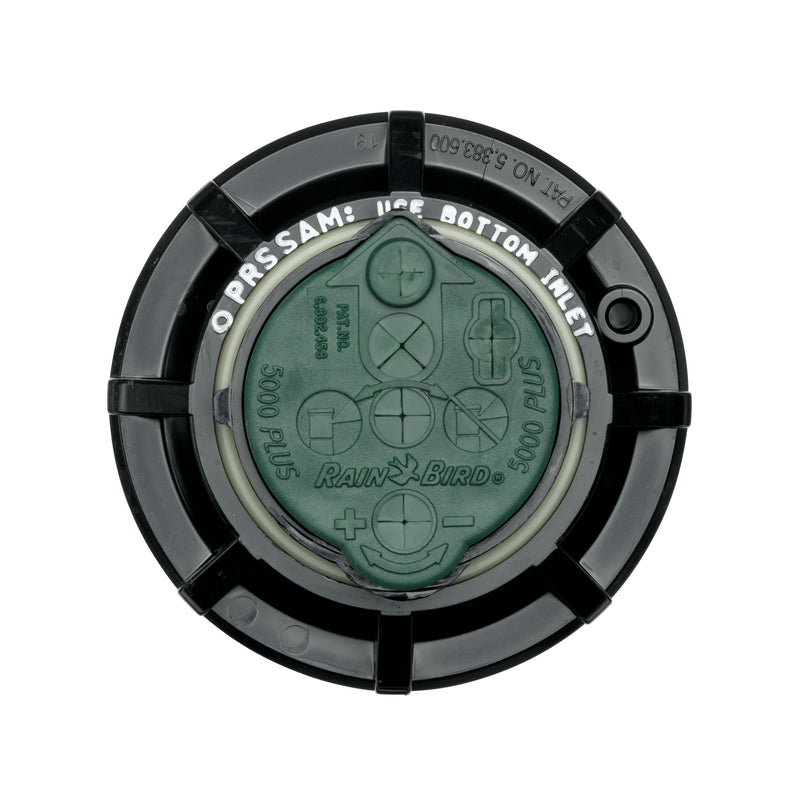

  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • 40 - 360° arc rotation and reversing full circle rotation in one
  • Radius adjustment screw allows up to 25% radius reduction without changing nozzles
  • Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
  • Reinforced flow path for additional side load strength
  • Additional O-rings and seals for extra protection in "gritty" water
  • Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance

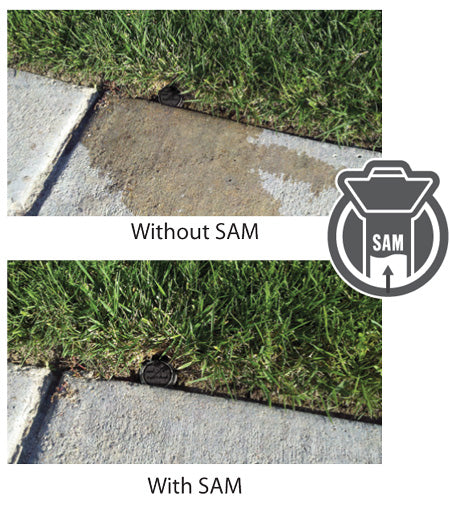

  • Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage
  • 1 Nozzle Tree per Rotor. Free ROTORTOOL with purchase of 20+.

Engineered to be the Industrys Most Reliable and Best Performing Rotor

Offering unmatched performance from 25 to 50, Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industrys only Triple-Blade Wiper Seal with unrivaled Rain Curtain„¢ nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.

Features

Rain Curtain Nozzle Technology

  • Rain Curtain Nozzles standard on all 5000 Series Rotors
    • Large water droplets for greater wind resistance
    • Effective close-in watering
    • Even distribution over the entire radius
  • Tree of nozzles including four low angle (angle of trajectory 10°) and eight standard angle Rain Curtain Nozzles (angle of trajectory 25°) provides 25 to 50 (7.6m to 15.2m) distance of throw
  • Self-aligning nozzles

PRS Feature

  • In-stem pressure regulator (PRS) reduces operating pressure to 45 psi (3,1 bar) for optimal nozzle performance
  • PRS saves water by:
    • Eliminating head-to-head pressure variations
    • Eliminating misting due to high pressure
    • Improving nozzle distribution uniformity by operating the nozzle at optimum pressure
  • Maintenance-free design can be easily retrofitted into existing 5000/5000 Plus, T-Bird and Hunter® PGP (using UPG model) rotor cases without digging up the entire body
  • Pressure: 25-75 psi (1,7 to 5,2 bar)

Installation and Maintenance

  • Slip clutch mechanism for quick adjustment on installation
  • Faster maintenance with a new self-cleaning arc adjustment screw
  • Top-adjust arc adjustment requiring only a flathead screwdriver
  • Radius adjustment screw allows up to 25% radius reduction without changing nozzles

Durability

  • Heavy-duty cover assembly for extra durability in residential or commercial applications
  • Heavy-duty retract spring assures positive pop-down
  • Pressure-activated triple-blade multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
  • Additional O-rings and seals for extra protection in "gritty" water

Specs

Operating Range

  • Precipitation rate: 0.20 to 1.5 in/hr (5 to 37 mm/hr)
  • Radius: 25 to 50 feet (7,6 to 15,2 m)
  • Radius may be reduced up to 25% with radius reduction screw
  • Pressure: 25-65 psi (1,7 to 4,5 bar)
  • Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)

Specifications

  • 3/4" NPT female bottom threaded inlet
  • Reversing full and part circle adjustment 40° “ 360°
