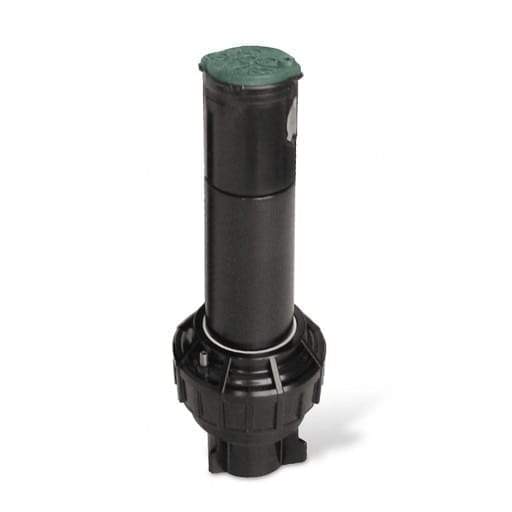

Rain Bird - 5000+SPCSAM - 6'' 5000 Plus Part-Circle Shrub Rotor w/ SAM Check Valve
Rain Bird - 5000+SPCSAM - 6'' 5000 Plus Part-Circle Shrub Rotor w/ SAM Check Valve is backordered and will ship as soon as it is back in stock.
5000 Plus Series Shrub Rotor with Flow Shut-off and SAM Check Valve, ideal for watering shrubs and hillsides.
- Flow Shut-Off feature turns the rotor on and off at the head using a flat blade screwdriver while the system is still in operation.
- Radius: 25 to 50 feet (7,6 to 15,2 m)
- NOTE: Shrub rotors do not pop up -- mount above ground on a 3/4" fixed threaded riser
- Includes locking screw to fasten shrub rotor to the riser and Secure Ribs to assist in staking.
- Heavy-duty cover assembly for extra durability
- Top-adjust arc adjustment requiring only a flat-blade screwdriver
- 40 - 360° arc rotation and reversing full circle rotation in one
- Radius adjustment screw allows up to 25% radius reduction without changing nozzles
- Rain Curtain Nozzles
- Faster maintenance with a new self-cleaning arc adjustment screw
- Slip clutch mechanism for quick adjustment on installation
- Additional O-rings and seals for extra protection in "gritty" water
- Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage
Engineered to be the Industrys Most Reliable and Best Performing Rotor
Offering unmatched performance from 25 to 50, Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industrys only Triple-Blade Wiper Seal with unrivaled Rain Curtain nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.
Features
Rain Curtain Nozzle Technology
- Rain Curtain Nozzles standard on all 5000 Series Rotors
- Large water droplets for greater wind resistance
- Effective close-in watering
- Even distribution over the entire radius
- Tree of nozzles including four low angle (angle of trajectory 10°) and eight standard angle Rain Curtain Nozzles (angle of trajectory 25°) provides 25 to 50 (7.6m to 15.2m) distance of throw
- Self-aligning nozzles
Durability
- Heavy-duty cover assembly for extra durability in residential or commercial applications
- Heavy-duty retract spring assures positive pop-down
- Pressure-activated triple-blade multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
- Additional O-rings and seals for extra protection in "gritty" water
Installation and Maintenance
- Slip clutch mechanism for quick adjustment on installation
- Faster maintenance with a new self-cleaning arc adjustment screw
- The 5000 Plus features a flow shut-off device to stop the flow of water to a particular head while the system is still in operation
- Top-adjust arc adjustment requiring only a flathead screwdriver
- Radius adjustment screw allows up to 25% radius reduction without changing nozzles
Specs
Operating Range
- Precipitation rate: 0.20 to 1.5 in/hr (5 to 37 mm/hr)
- Radius: 25 to 50 feet (7,6 to 15,2 m)
- Radius may be reduced up to 25% with radius reduction screw
- Pressure: 25-65 psi (1,7 to 4,5 bar)
- Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
Specifications
- 3/4" NPT female bottom threaded inlet
- Reversing full and part circle adjustment 40° “ 360°
- Full circle only adjustment 360°
