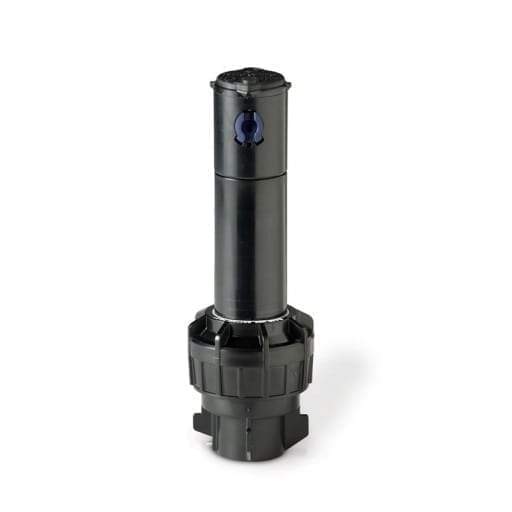

Rain Bird - 5000S+PCSAMR - 6'' 5000 Plus Shrub Rotor w/ SAM Check Valve & 45 PSI PRS
Rain Bird - 5000S+PCSAMR - 6'' 5000 Plus Shrub Rotor w/ SAM Check Valve & 45 PSI PRS is backordered and will ship as soon as it is back in stock.
5000 Plus Series Shrub Rotor with Flow Shut-off, 45 PSI Pressure Regulator and SAM Check Valve, ideal for watering shrubs and hillsides.
Features
- Precipitation rate: 0.20 to 1.50 in/hr (5 to 38 mm/h)
- Radius: 25 to 50 feet (7.6 to 15.2 m)
- Radius may be reduced up to 25% with radius reduction screw
- Pressure: 25 to 65 psi (1.7 to 4.5 bar)
- Flow Rate: 0.76 to 9.63 gpm (3.0 to 36.6 l/m; 0.17 to 2.19 m3/h)
- Reversing full- and part-circle adjustment from 40° - 360°
- Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25°.
- NOTE: Shrub rotors do not pop up -- mount above ground on a 3/4" fixed threaded riser
- Includes locking screw to fasten shrub rotor to the riser and Secure Ribs to assist in staking.
- Heavy-duty cover assembly for extra durability
- Top-adjust arc adjustment requiring only a flat-blade screwdriver
- 40 - 360° arc rotation and reversing full circle rotation in one
- Radius adjustment screw allows up to 25% radius reduction without changing nozzles
- Rain Curtain Nozzles
- Faster maintenance with a new self-cleaning arc adjustment screw
- Slip clutch mechanism for quick adjustment on installation
- Additional O-rings and seals for extra protection in "gritty" water
Plus (+), PRS, & SAM Features
-
Plus (+) Flow shutoff: “The Green Top.” Reduce downtime on jobs by flushing and nozzling rotors without running back and forth to the controller or valves
- PRS (R) with flow optimizer technology: The 45 psi pressure regulator lowers water bills, provides exact flow of each rotor, equalizes lateral lines, and eliminates misting and fogging
-
SAM Seal-A-Matic™ check valve: holds up to 7 feet (2.1 m) of elevation change
Engineered to be the Industrys Most Reliable and Best Performing Rotor
Offering unmatched performance from 25'-50', Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry's only Triple-Blade Wiper Seal with unrivaled Rain Curtain nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.
Rain Curtain Nozzle Technology
- Rain Curtain Nozzles standard on all 5000 Series Rotors
- Large water droplets for greater wind resistance
- Effective close-in watering
- Even distribution over the entire radius
- Tree of nozzles including four low angle (angle of trajectory 10°) and eight standard angle Rain Curtain Nozzles (angle of trajectory 25°) provides 25 to 50 (7.6m to 15.2m) distance of throw
- Self-aligning nozzles
Installation and Maintenance
- Slip clutch mechanism for quick adjustment on installation
- Faster maintenance with a new self-cleaning arc adjustment screw
- The 5000 Plus features a flow shut-off device to stop the flow of water to a particular head while the system is still in operation
- Top-adjust arc adjustment requiring only a flathead screwdriver
- Radius adjustment screw allows up to 25% radius reduction without changing nozzles
Operating Range
- Precipitation rate: 0.20 to 1.5 in/hr (5 to 37 mm/hr)
- Radius: 25 to 50 feet (7,6 to 15,2 m)
- Radius may be reduced up to 25% with radius reduction screw
- Pressure: 25-65 psi (1,7 to 4,5 bar)
- Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
Specifications
- 3/4" NPT female bottom threaded inlet
- Reversing full and part circle adjustment 40° “ 360°
- Full circle only adjustment 360°
- Shrub Overall Height: 73/4” (19.7 cm)
