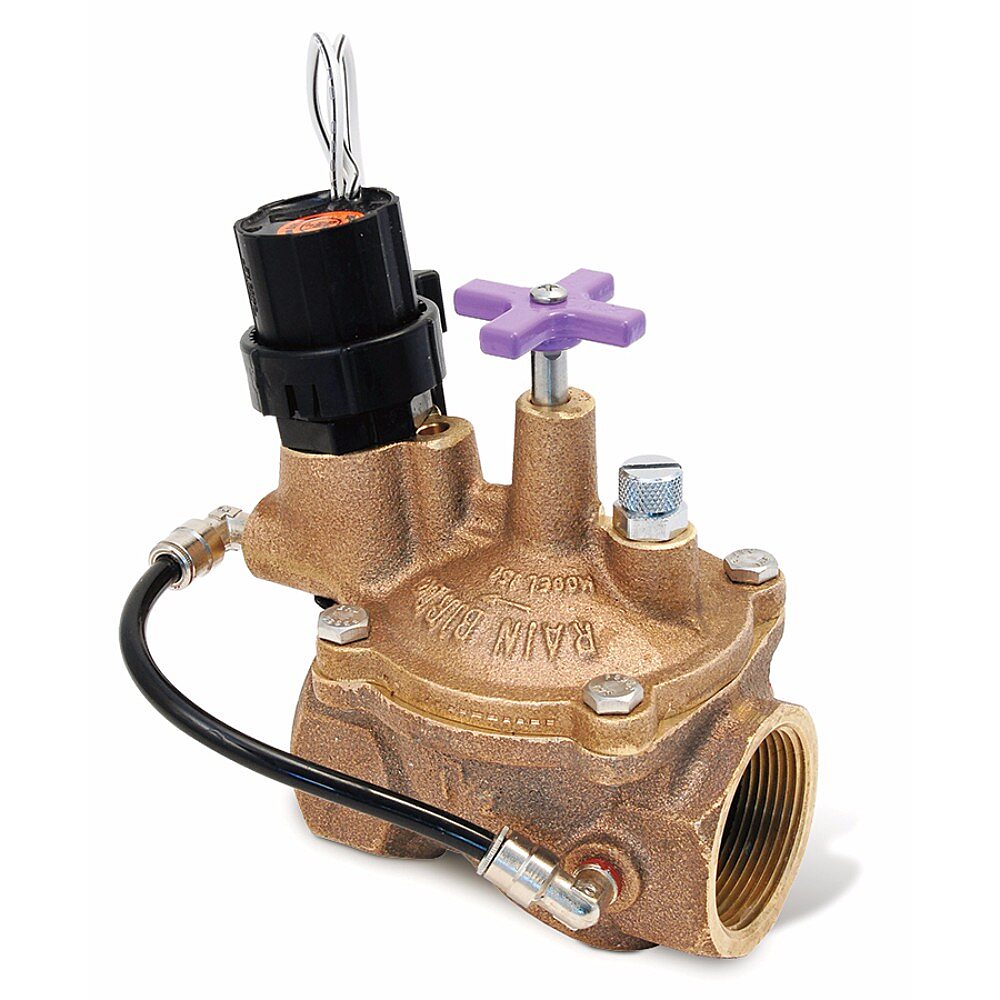

Rain Bird - 200-EFB-CP - 2'' Brass Inline Valve w/ Flow Control - Female Pipe Thread

Rain Bird  |  SKU: 200EFBCP
$31996 $59325


2" EFB-CP Series Brass Valve - Globe Configuration

Electric remote control valves don't come any better than EFB-CP Series red brass valves. Need a contamination-proof, self-flushing screen that cleans itself and resists debris build-up in dirty water? The EFB-CP's the one!

Ideal for non-potable water valve applications, the EFB-CP is designed to handle chlorine and other harsh chemicals found in reclaimed water systems. Each valve shipped with a Purple Handle as spare.

EFB-CP Series valves offer long life and superior performance in high pressure applications.

Features
  • Reliable performance even in dirty water applications. Self-flushing filter resists debris build-up
  • Rugged red brass construction for longer life
  • Durable, fabric-reinforced diaphragm composed of EPDM, a rubber material which is chlorine and chemical resistant
  • Normally closed, reverse flow design ensures valve will fail in the closed position if a tear or rip in the diaphragm occurs. Prevents flooding, water waste and landscape damage
  • Slow closing to prevent water hammer and subsequent system damage
  • One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service
  • Manual internal bleed operates the valve without allowing water into the valve box. Allows pressure regulator adjustment without turning on the controller
  • Manual external bleed permits flushing debris from the system.Recommended for system start up and other repairs
  • Contamination-proof, self-flushing filter screen resists debris build-up. Water flow continuously flushes the screen, dislodging particles and debris before they can accumulate and clog the filter
  • Reclaimed water compatible: all models now feature EPDM diaphragms and chlorine-resistant parts as standard equipment
  • Three-year trade warranty
Specs
  • Pressure: 15 to 200 psi (1.04 to 13.80 bar)
  • Flow with/without PRS-D: 5 to 200 GPM (1.14 to 45.40 m3/h; 0.32 to 12.60 l/s)
  • Temperature: up to 150° F (66° C)
  • Power: 24VAC 50/60Hz (cycles/sec) solenoid power requirement
  • Inrush current: 0.41A (9.9VA) at 50/60Hz
  • Holding current: 0.14A (3.43VA) at 50/60Hz
  • Solenoid coil resistance: 30-39 Ohms, nominal
Dimensions
  • Height: 7" (14.6 cm)
  • Length: 6 3/4" (17.8 cm)
  • Width: 5 3/4" (17,1 cm)

Downloads
