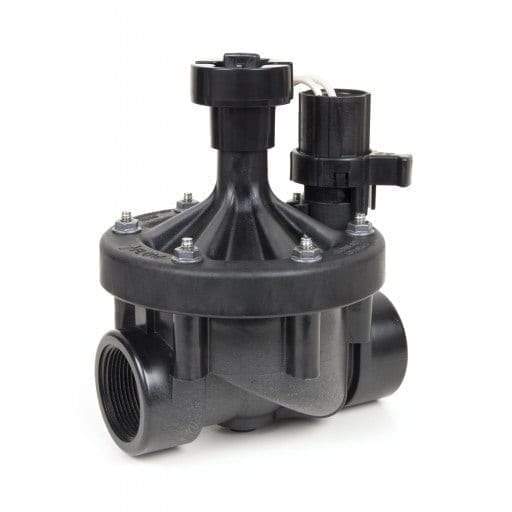

Rain Bird - 150PEB - 1 1/2'' PEB Inline Plastic Industrial Irrigation Valve - Female Pipe Thread
Rain Bird - 150PEB - 1 1/2'' PEB Inline Plastic Industrial Irrigation Valve - Female Pipe Thread is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Features
- 1 1/2 in. (40/49) plastic industrial irrigation valve (FPTxFPT)
- Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance.
- Globe configuration.
- Normally closed, forward flow design.
- Slow closing to prevent water hammer and subsequent system damage.
- Low flow capability for a wide range of applications.
- One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
- Flow control handle adjusts water flows as needed.
- Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first.
- Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs.
- Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads.
- Five-year trade warranty.
Best-in-class professional series plastic irrigation valves
The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.
Specs
- Pressure: 20 to 200 psi (1,4 to 13,8 bar)
- Flow without PRS-D option: 0.25 to 200 GPM (0,06 to 45 m³/h; 0,02 to 12,60 l/s)
- Flow with PRS-D option: 5 to 200 GPM (1,14 to 45 m³/h; 0,32 to 12,60 l/s)
- Temperature: Up to 150°F (66°C)
Electrical Specifications
- 24 VAC 50/60 Hz (cycles per second) solenoid power requirement
- Inrush current: 0.41A (9.9VA) at 60Hz
- Holding current: 0.14A (3.43VA) at 60Hz
- Solenoid coil resistance: 30-39 Ohms, nominal
Options
- Accommodates optional, field-installed PRS-D pressure regulating module to ensure optimum sprinkler performance. Regulates up to 100 psi (6,9 bar)
- Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bar)
- Compatible with ESP-LXD decoders
Dimensions
- 150-PEB: 8" x 6" x 6" “ (20,3 cm) x (15,2 cm) x (15,2 cm)
Downloads
-
Box Quantity
