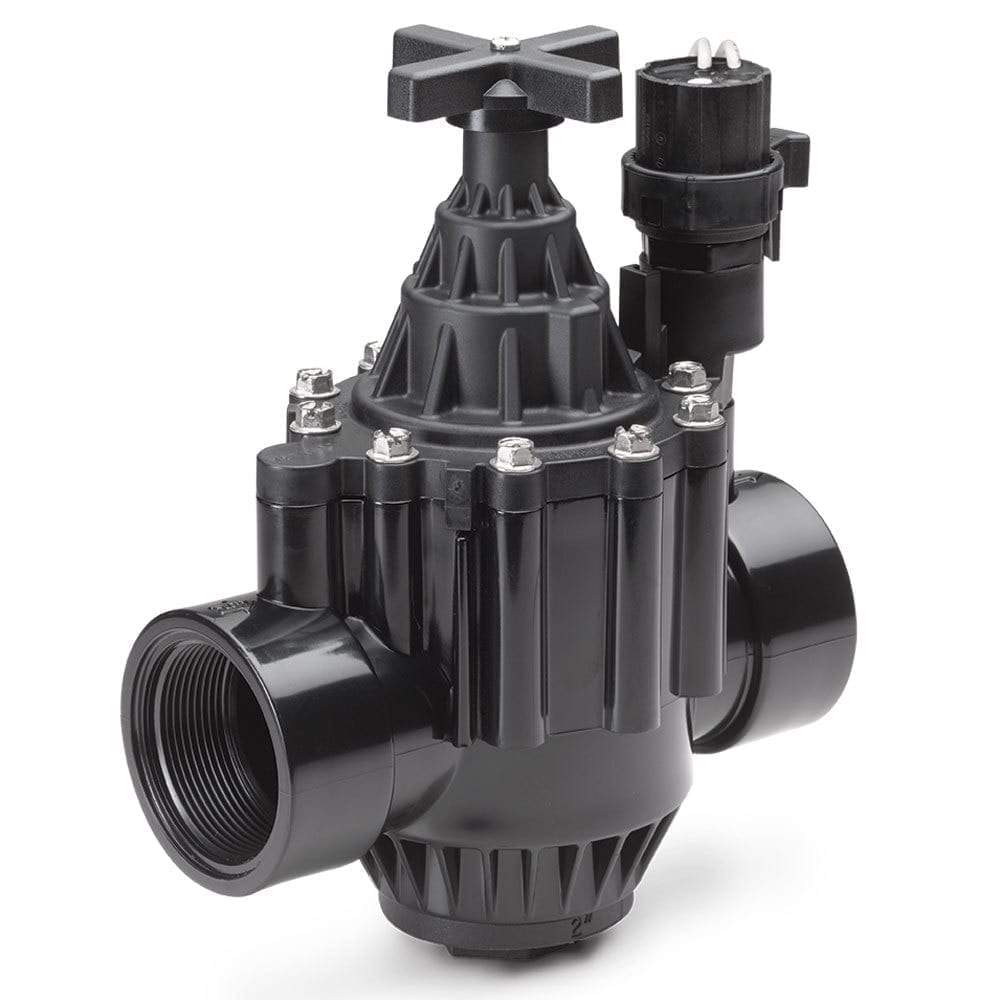

Rain Bird - 100PGA - 1'' PGA Inline Plastic Residential/Commercial Irrigation Valve - Female Pipe Thread
- Water-tight seal between the body and bonnet for maximum confidence, even in the most extreme conditions
- Robust electrical design for quiet performance you can count on
- Rugged PVC and glass-filled nylon construction for reliable operation
- Normally closed, forward flow design
- Filtered pilot flow to resist debris and clogging
- Slow closing to prevent water hammer and subsequent system damage
Built for high-end residential and light commercial applications, Rain Bird® PGA series valves are the toughest, most reliable valves in their class. These long-lasting, easy-to-service valves are proven to perform at the highest level, even under harsh temperatures and intense pressure.
The PGA valve maintains a strong, worry-free seal between the body and bonnet, no matter the conditions. In Thermal Cycle Testing, hundreds of PGA valves were exposed to extreme temperature swings and intense pressures. The result - zero leaks.
The PGA valves body-to-bonnet seal is built to overcome the intense water pressure common on many commercial sites. Faced with repeated pressure surges well into the triple digits, our valves outlasted the nearest competitor more than 2 1/2 times to 1 in Cycle Surge Testing.
With a robust electrical design, the PGA valve greatly reduces noise and delivers years of reliable performance. So not only will you have peace of mind, youll have peace and quiet.
- Globe and angle configuration for flexibility in design and installation.
- Manual internal bleed operates the valve without allowing water into the valve box. This allows the pressure regulator to be adjusted without turning the valve on at the controller.
- One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
- Non-rising flow control handle adjusts water flow as needed.
- Accommodates optional, field-installed PRS-D pressure regulating dial to ensure optimum sprinkler performance.
- Accepts latching solenoid for use with Rain Bird battery-operated controllers.
|Valve Size||1 in|
|Valve Inlet/Outlet Configuration||NPT Female x NPT Female Threaded|
|Valve Options||Multi-drive Screws, Non-potable|
|Operating Temperature||Temperature: Up to 110° F (43° C)|
|Dimensions||7 1/4" x 5 1/2" x 3 1/4" (18,4 cm) x (14,0 cm) x (8,3 cm)|
24 VAC 50/60 Hz (cycles per second) solenoid
Inrush current: 0.41A (9.9VA)
Holding current: 0.14A (3.43VA)
Coil resistance: 30-39 Ohms
Flow without PRS-D option: 2 to 150 GPM (0,5 to 34 m3/h; 0,13 to 9,44 l/s)
Flow with PRS-D option: 5 to 150 GPM (1 to 34 m3/h; 0,32 to 9,44 l/s)
|Operating Pressure||15 to 150 psi (1,0 to 10,4 bar)|
