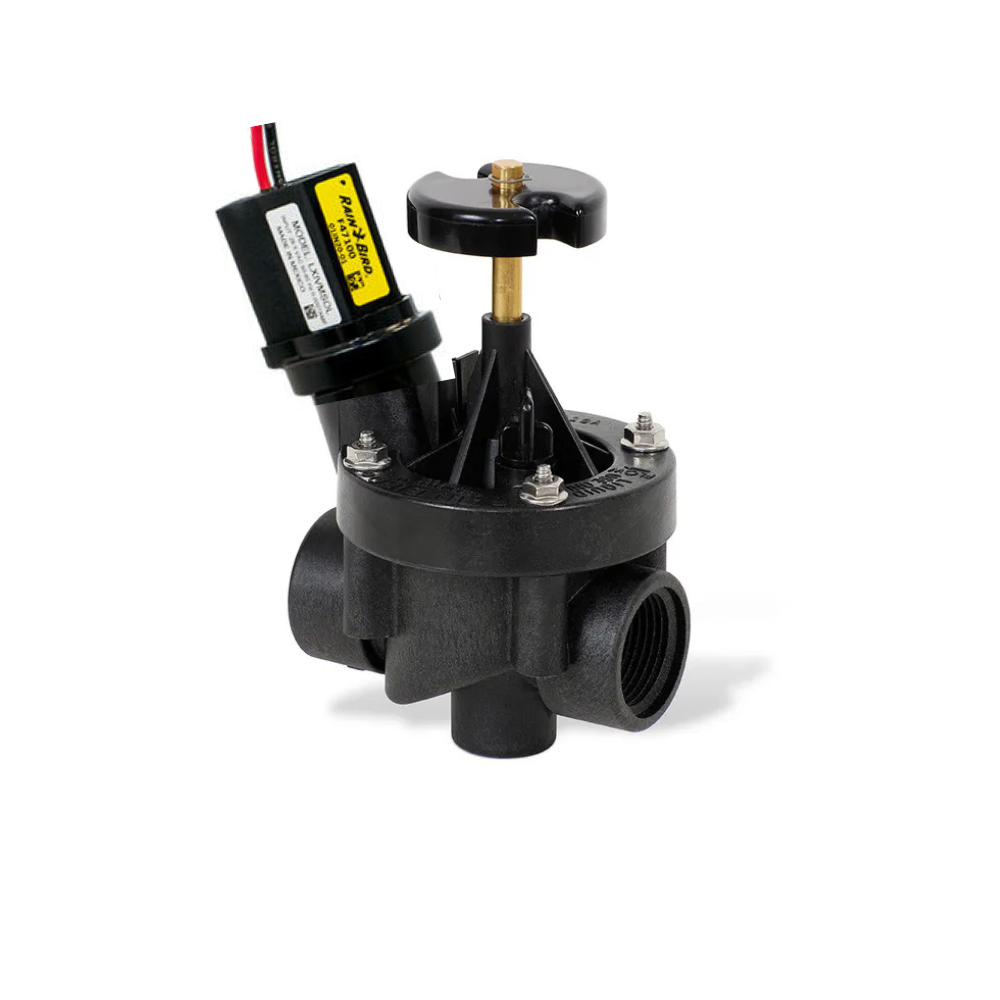

Rain Bird - 100PEBIVM - 1'' PEB Valve w/ IVMSOL - FPT

1'' FPT PEB Inline Commercial Irrigation Valve preinstalled with IVMSOL for use with LXIVM controllers.

The PEB Series is our most durable plastic irrigation valve. This industrial-strength glass-filled nylon globe valve is ideal for commercial irrigation applications.

• Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance.
• Globe configuration.
• Normally closed, forward flow design.
• Slow closing to prevent water hammer and subsequent system damage.
• Low flow capability for a wide range of applications.
• With 50% fewer connections, an IVM Smart Valve is already 200% more reliable out of the box versus using a valve and decoder
• One-piece solenoid design with captured plunger and spring for easy servicing. Prevents loss of parts during field service.
• Flow control handle adjusts water flows as needed.
• Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first.
• Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs.
• Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads.
• Five-year trade warranty.

IVMSOL Features

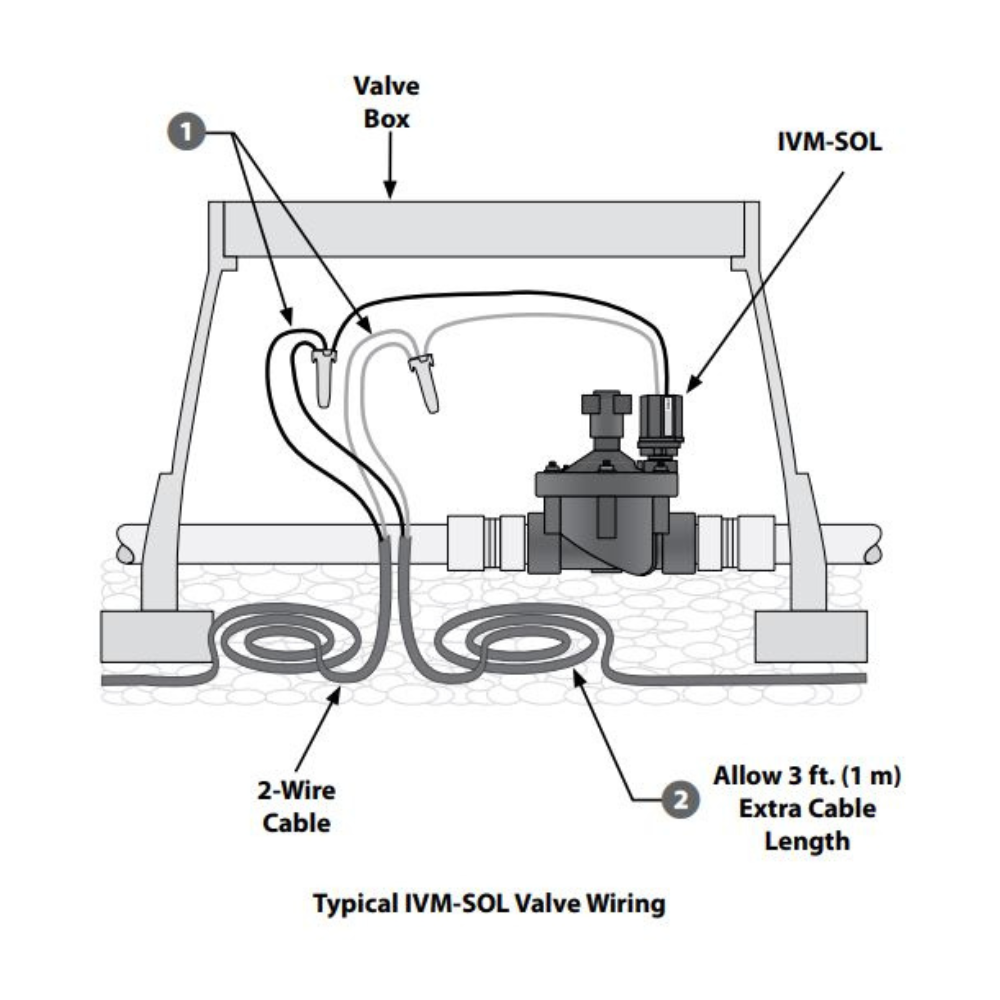

• Rain Bird WC20 connectors (included with IVMSOL) to be used for all splices
• Field Devices are installed along the 2-Wire path to interface with valves and other hardware.
• Interfaces with LX-IVM to control station valves and master valves
• Revolutionary 2-Wire Design with Integrated Valve Module (IVM)
