Rain Bird - 100DV - 1'' DV Inline Plastic Irrigation Valve - (FPT)

Rain Bird  |  SKU: 100DV
$1918 $3514

100DV - 1" NPT (female x female) DV Series Inline Plastic Residential Valve - No Flow Control

The Rain Bird DV valve is the premium valve product chosen by more professionals than any other valve on the market. Its long history of reliable performance makes it the natural choice for your landscape. Its consistent, problem-free performance means you can spend less time thinking about your irrigation system and more time enjoying your landscape.

Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required.

Specs
  • 1'' Slip x Slip Connection
  • Pressure: 15 to 150 psi (1,0 to 10,4 bar)
  • 0.2 to 40 GPM (0,05 to 9.085 m³/h; 0,01 to 2,52 l/s)
    • For flows below 3 GPM (0,68 m³/h; 0,19 l/s) or any Landscape Drip application, use a 200 mesh filter installed upstream.
  • Water temperature: Up to 110°F (43°C)
  • Ambient air temperature: Up to 125°F (52°C)
  • Solenoid coil resistance: 38 Ohms
  • 24 VAC 50/60Hz (cycles per second) solenoid power requirement: 0.450A inrush current, 0.25A holding current
  • Works with any standard sprinkler timer.
Features

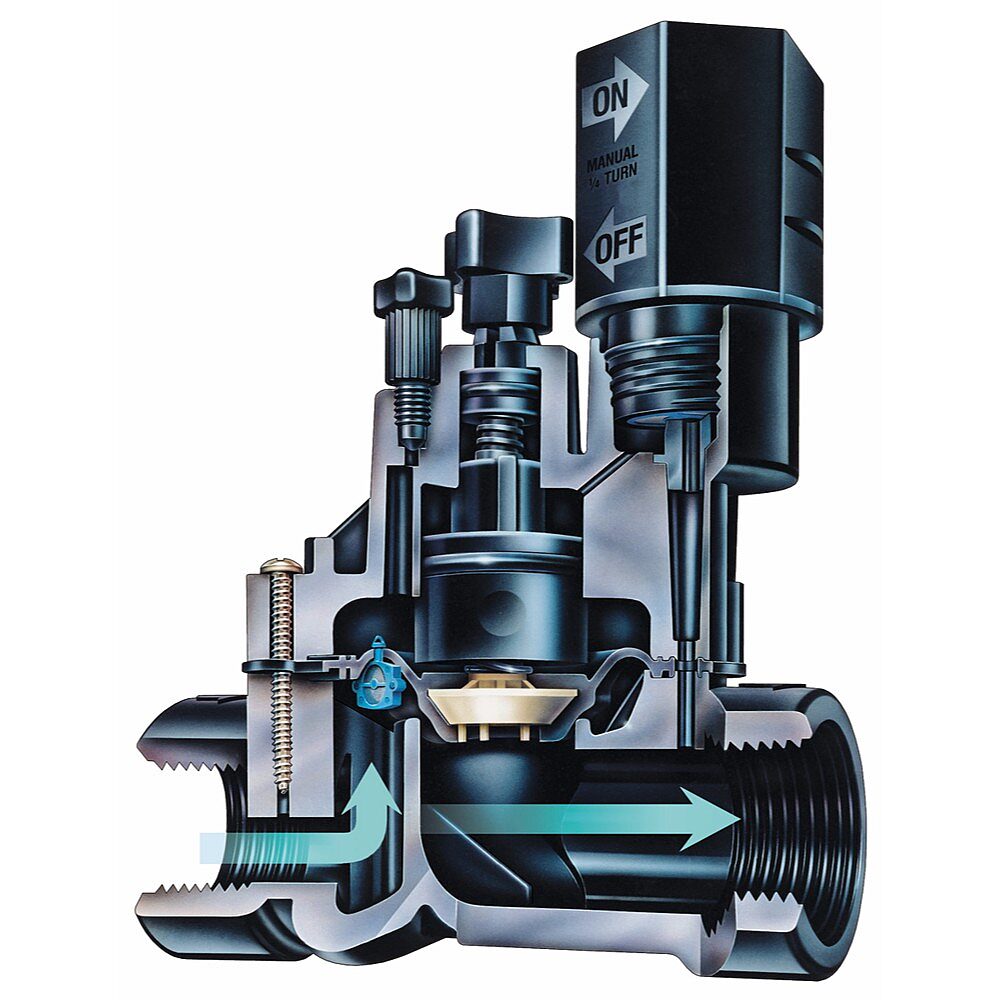

  • Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
  • Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
  • External bleed to manually flush system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Accepts Rain Bird TBOS latching solenoid for use with most battery-operated controllers
  • Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
  • Not recommended for use with two-wire control systems
Dimensions:
  • Height: 4½" (11,4 cm)
  • Length: 4 3/8" (11.1 cm)
  • Width: 3 1/3" (8.4 cm)
Recommendations:
  • Rain Bird recommends flow rates that result in discharge velocities in the supply line not to exceed 7.5 ft/sec (2.3 m/s) in order to reduce the effects of water hammer
  • Rain Bird residential valves cannot be used with PRS pressure regulating modules
  • Compatible with ESP-LXIVM 2-wire systems when used with the IVMSOL. Not recommended for use in other 2-wire systems
