NDS - DS-340 - Dura Slope Catch Basin

by NDS
SKU DS-340
Save 33%
Original price $398.93
Current price $265.95




PRODUCT DETAILS


Dura Slope In-Line Catch Basin, Gray. Use with Dura Slope Channel Drain to collect debris or discharge out the side of the system.

Includes:

  • DS-340 Catch Basin
  • (2) 1890 Reducer Rings
  • (1) 1206 Outlet Plug
  • Comes with a Blank grate insert that eliminates use of plywood. Slides for overlapping of channel sections, and includes grate screws.

Features

  • Dura Slope™ in-line Catch Basins with one or two outlets for 3", 4", 6" or 8" Pipe
  • Requires use of #1243, #1245, #1266, #1206, or #1888 Universal Outlets to connect discharge pipe Catch Basin (Sold Separately)
  • Grate Sold Separately (ADA Compliant, Require 2 grates per Dura Slope Channel, Grate Screws included with Channel Drain)
  • Dura Slope™ Channels install in a snap - No extra screws or clamps needed at installation
  • When used as central collection in Dura Slope System, the system can be extended up to 266 feet with neutrals added.

Note: Bottom outlets, drain outlets, and catch basins connect to the deepest end of the run.

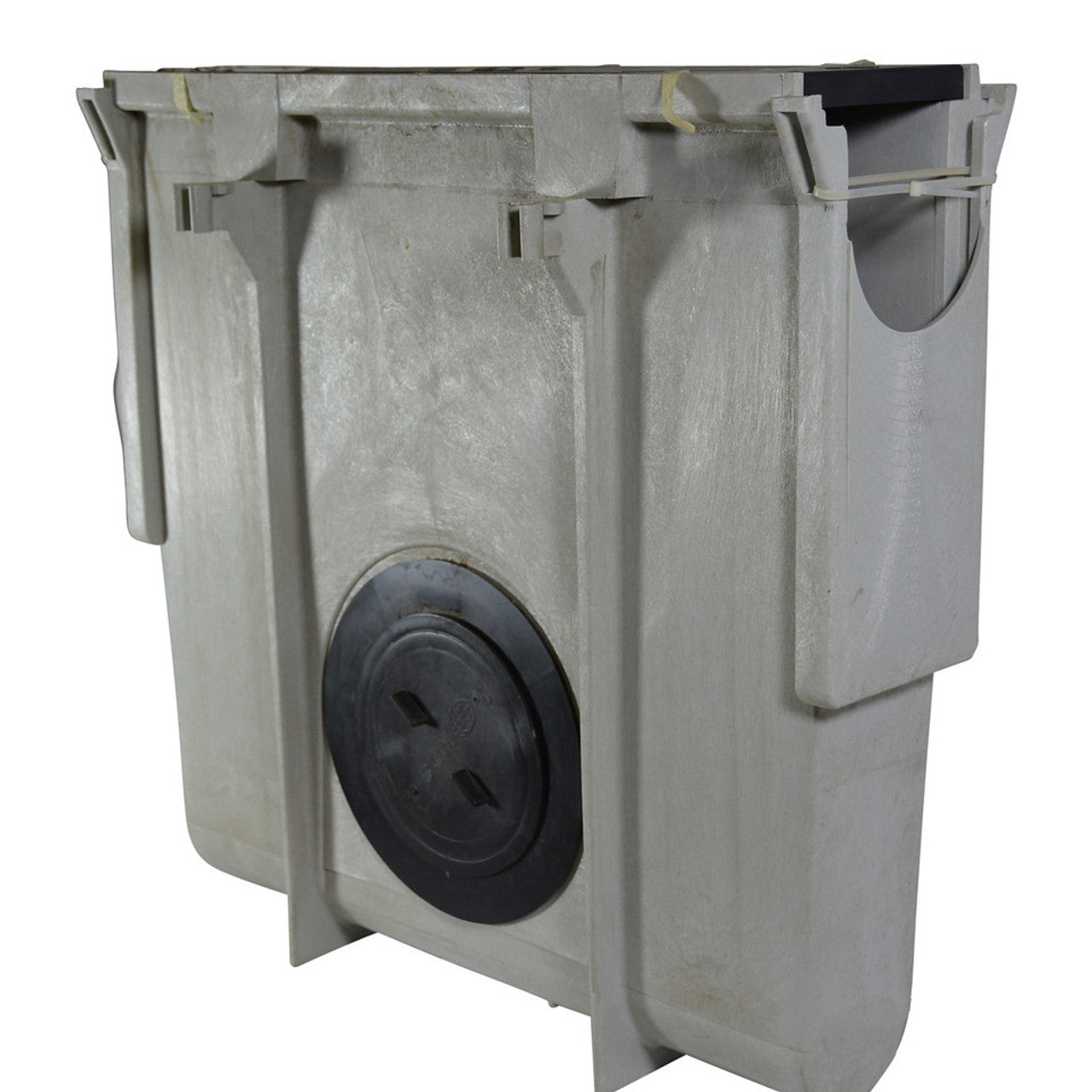

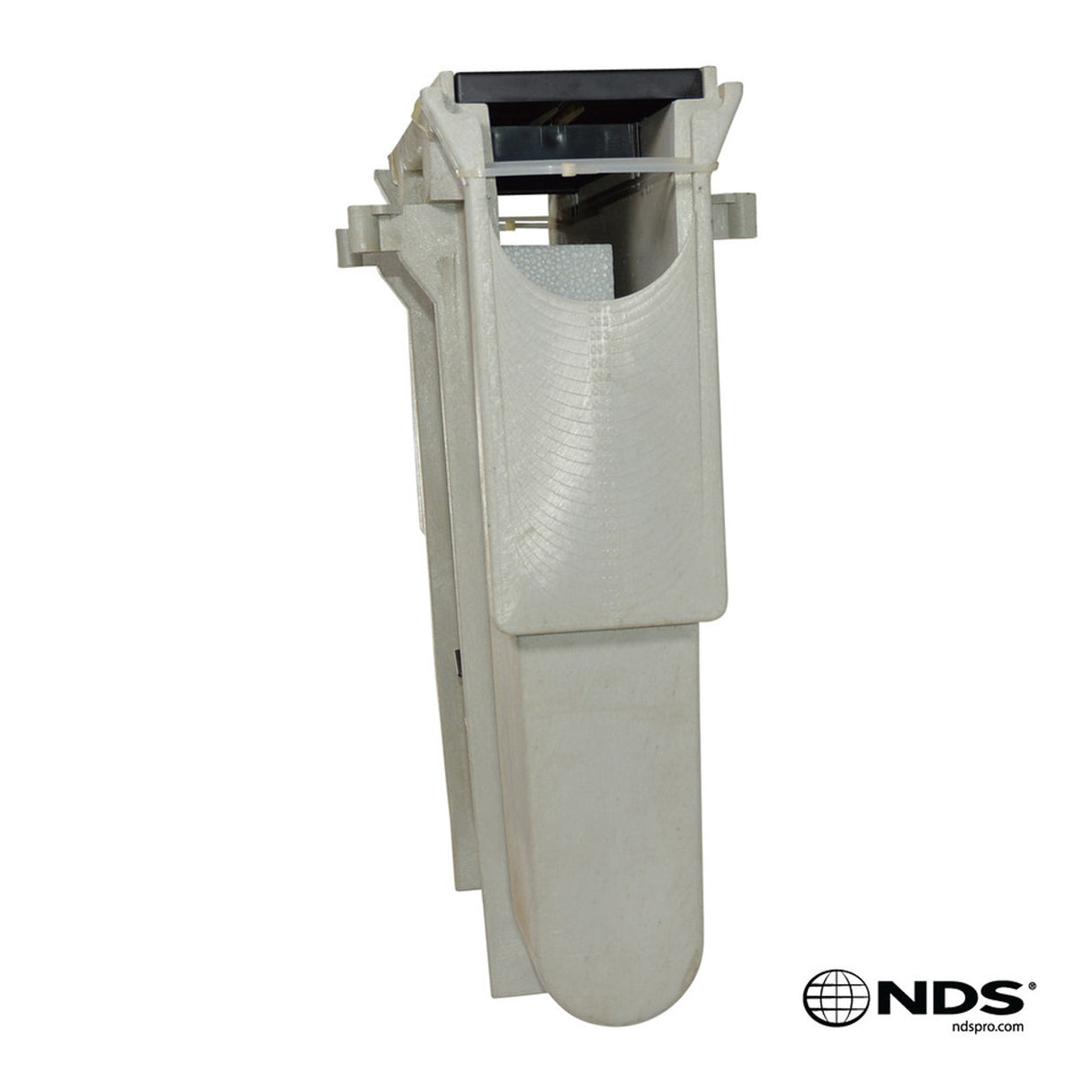

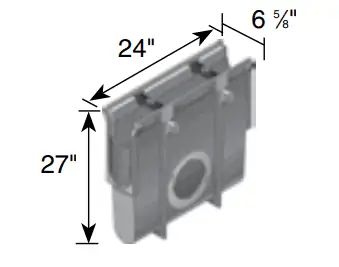

The NDS Dura Slope™ in-line catch basin is designed to fit all depth ranges of the Dura Slope™ trench drain sections. Catch basin inlets are designed to be sized as required to accept the Dura Slope™ trench drain section. The Dura Slope™ catch basin is 2 feet long and 2 feet deep with an outlet on both sides of the basin. One Universal Adapter Plug, one blank grate insert and two grate screws are included with each Dura Slope™ in-line catch basin. The NDS universal basin outlets are used to adapt the catch basin to 3”, 4”, 6” and 8” pipe.
