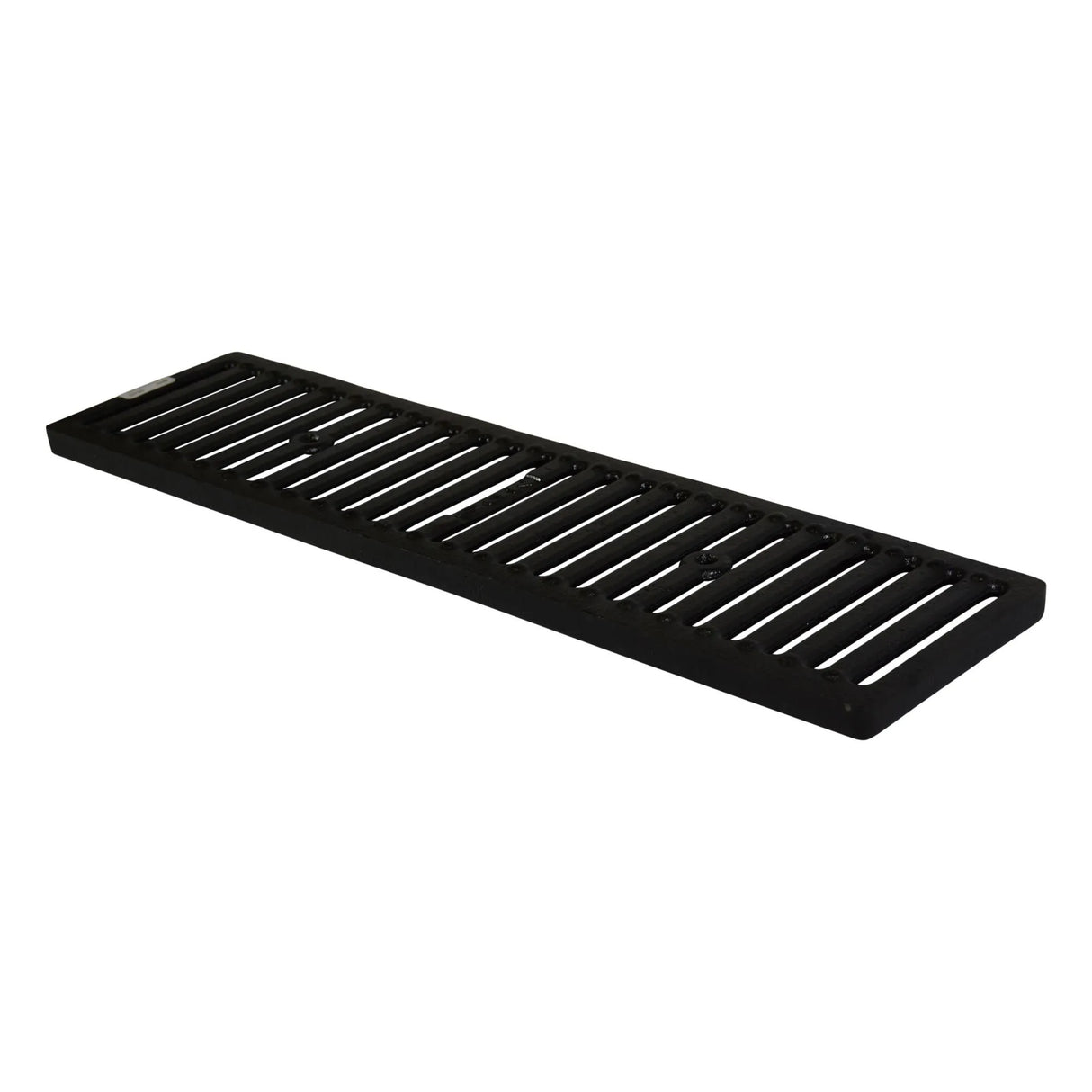

NDS - DS-232 - 2' Dura Slope Ductile Iron Channel Grate

NDS  |  SKU: DS-232
$9950 $14925


2' Ductile Iron Dura-Slope Channel Grate
  • Use with Dura Slope Channel Drains and Dura Slope Catch Basins #DS-340
  • Requires 2 Screws Per Grate #629 (Not Included - If purchasing with a Dura-Slope drain or catch basin, then the screws will come preinstalled with the Dura-Slope.)
  • (2) Grates required per Dura Slope Channel Drain.
  • (1) Grate required per Dura Slope Catch Basin
  • Requires use of DS-200H for Class D Load Rating
Specifications
Product type: Grates
Material: Ductile Iron
Color: Black

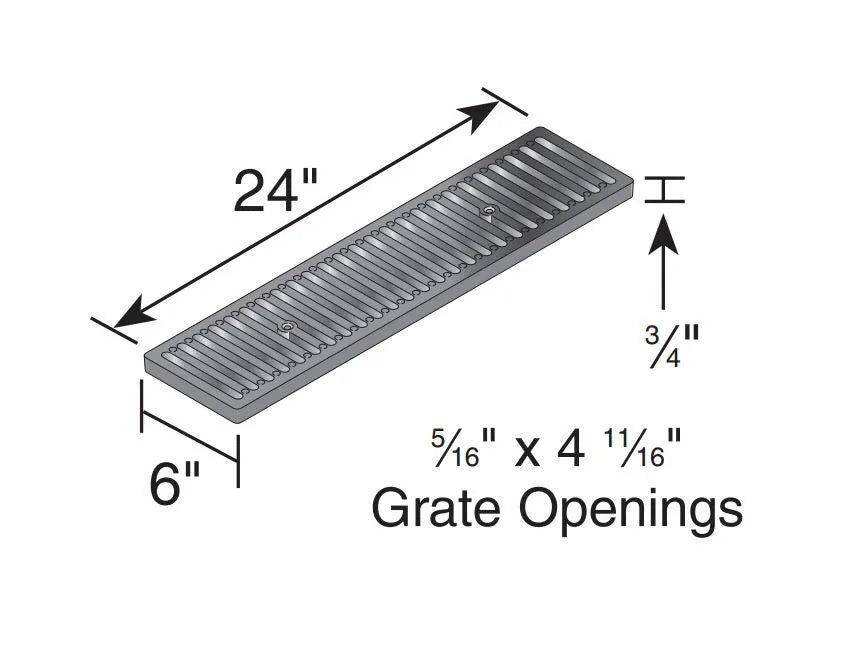

Length: 24 in.
Width: 6 in.
Height: 0.75 in.
Weight: 15.20 lb
ADA: Yes
Load Rating: Class D
  • Loads of 326-575 psi.
  • Recommended for heavy-duty hard tire forklifts at speeds less than 20 m.p.h.      H-20 rated.
  • Has to be installed with DS-200H to get this load rating.
Style: Flat
Capacity: 64 GPM per foot with 1/2'' of head.
Grate Opening: 5/16'' x 4-11/16''
