NDS - DS-228 - 2' Dura Slope Galvanized Steel Perforated Channel Grate
NDS | SKU:
DS-228
$10695
$16043
Unit price
/
Unavailable
NDS - DS-228 - 2' Dura Slope Galvanized Steel Perforated Channel Grate is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.

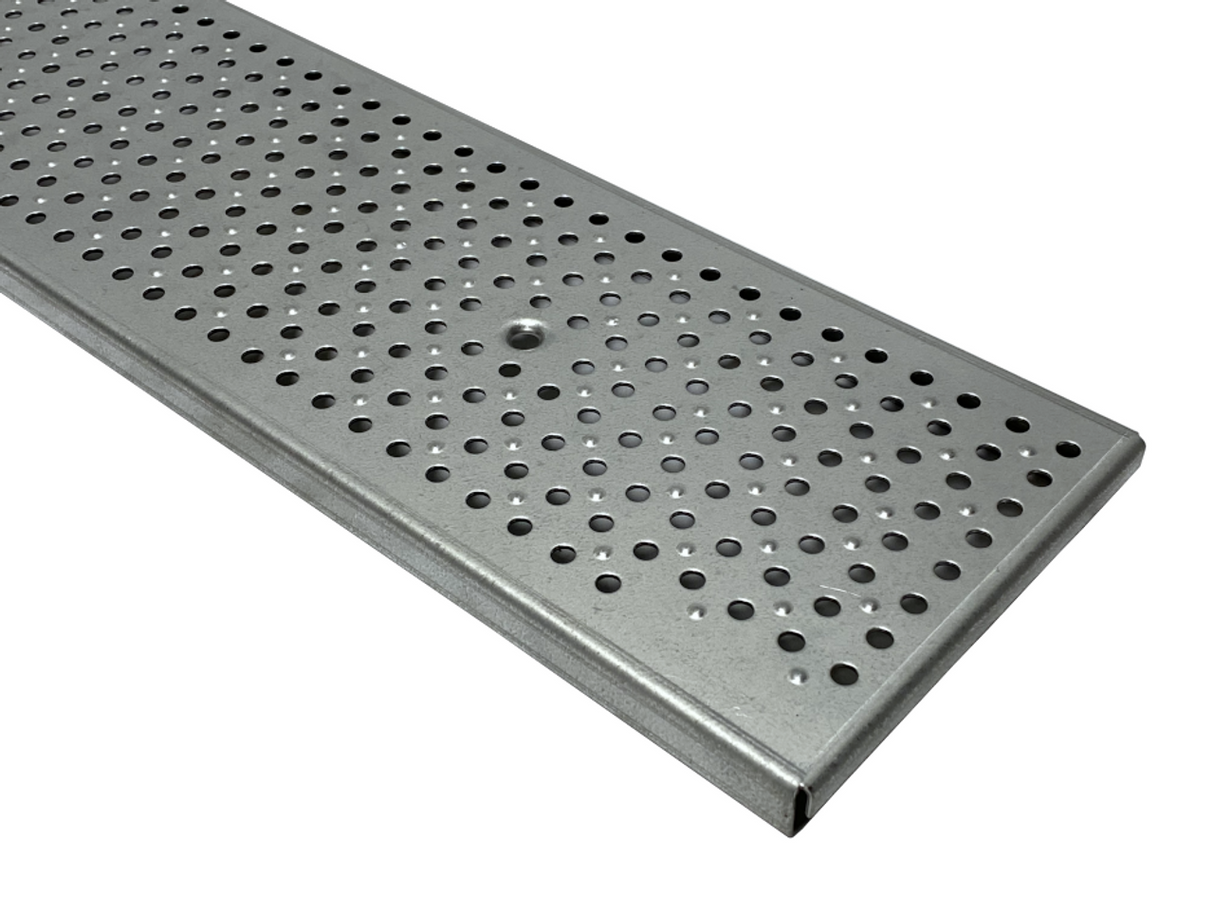

2' Galvanized Steel Dura-Slope Perforated Channel Grate
- Use with Dura Slope Channel Drains and Dura Slope Catch Basins #DS-340
- Requires 2 Screws Per Grate #629 (Not Included - If purchasing with a Dura-Slope drain or catch basin, then the screws will come preinstalled with the Dura-Slope.)
- (2) Grates required per Dura Slope Channel Drain.
- (1) Grate required per Dura Slope Catch Basin
Specifications
Product type: Grates, Perforated
Material: Galvanized Steel
Color: Dark Gray

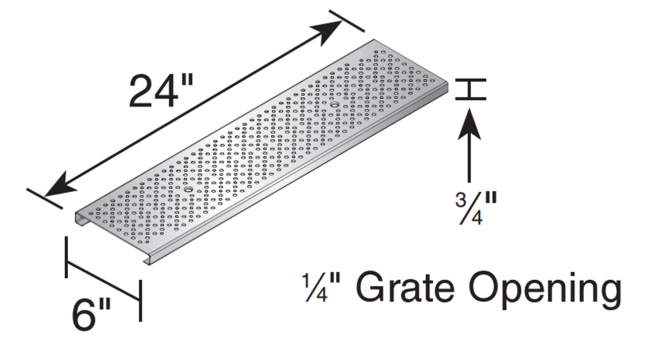

Length: 24 in.
Width: 6 in.
Height: 0.75 in.
Weight: 3.16 lb
ADA: Yes
Load Rating: Class A
- Loads of 1-60 psi.
- Recommended for pedestrians, bicycles and wheel-chair traffic
Style: Flat
Capacity: 24 GPM per foot with 1/2'' of head.
Grate Opening: 1/4''
Downloads
-
Box QuantityN/A
