NDS - 970 - 9" Square Grate, Black
by NDS
SKU 970
Save 41%
Original price
$37.47
Current price
$22.05
9'' Square Grate with 6'' Drain Pipe Connection
- Fits the Spee-D Catch Basin Drain, 6 in. Sewer and Drain Pipe & Fittings, 6 in. Single-Wall Corrugated Pipe, 6 in. Sch. 40 Pipe
Drain the excess stormwater away, not the leaves and debris in it. The 9 in. Square Drain Grate blocks troublesome particles from entering and potentially clogging your drain pipes, while letting the stormwater flow through. Use the drain grate (also known as a drain cover) to drain moderate flows from lawns, landscaped areas, patios, walkways, and under downspouts. The 9 in. square drain grate has an open surface area of 28.4 sq. in. and a flow rate of 87 GPM. Connects to the Spee-D Catch Basin Drain, 6 in. sewer and drain pipe & fittings, 6 in. single-wall corrugated pipe, and 6 in. Sch. 40 pipe for a soil-tight fit. The pipe grate is ADA Compliant.

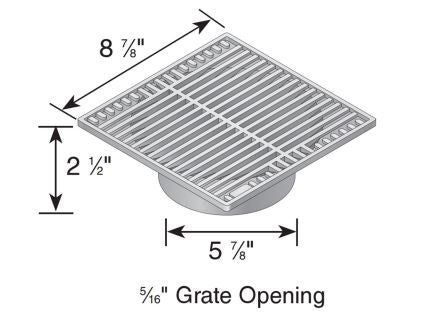

Specifications
Length: 8-7/8 in.
Width: 8-7/8 in.
Height: 2-1/2 in.
Weight: 1.11 lb
ADA: Yes
Load Rating: Class A
- Loads of 1-60 psi.
- Recommended for pedestrians, bicycles and wheel chair traffic
Capacity: 87 GPM
Grate Opening: 5/16''
