NDS - 900GRKIT - 9" Catch Basin Kit (Green Grate)
NDS - 900GRKIT - 9" Catch Basin Kit (Green Grate) is backordered and will ship as soon as it is back in stock.
NDS 9" Catch Basin Kit with Black Plastic Grate

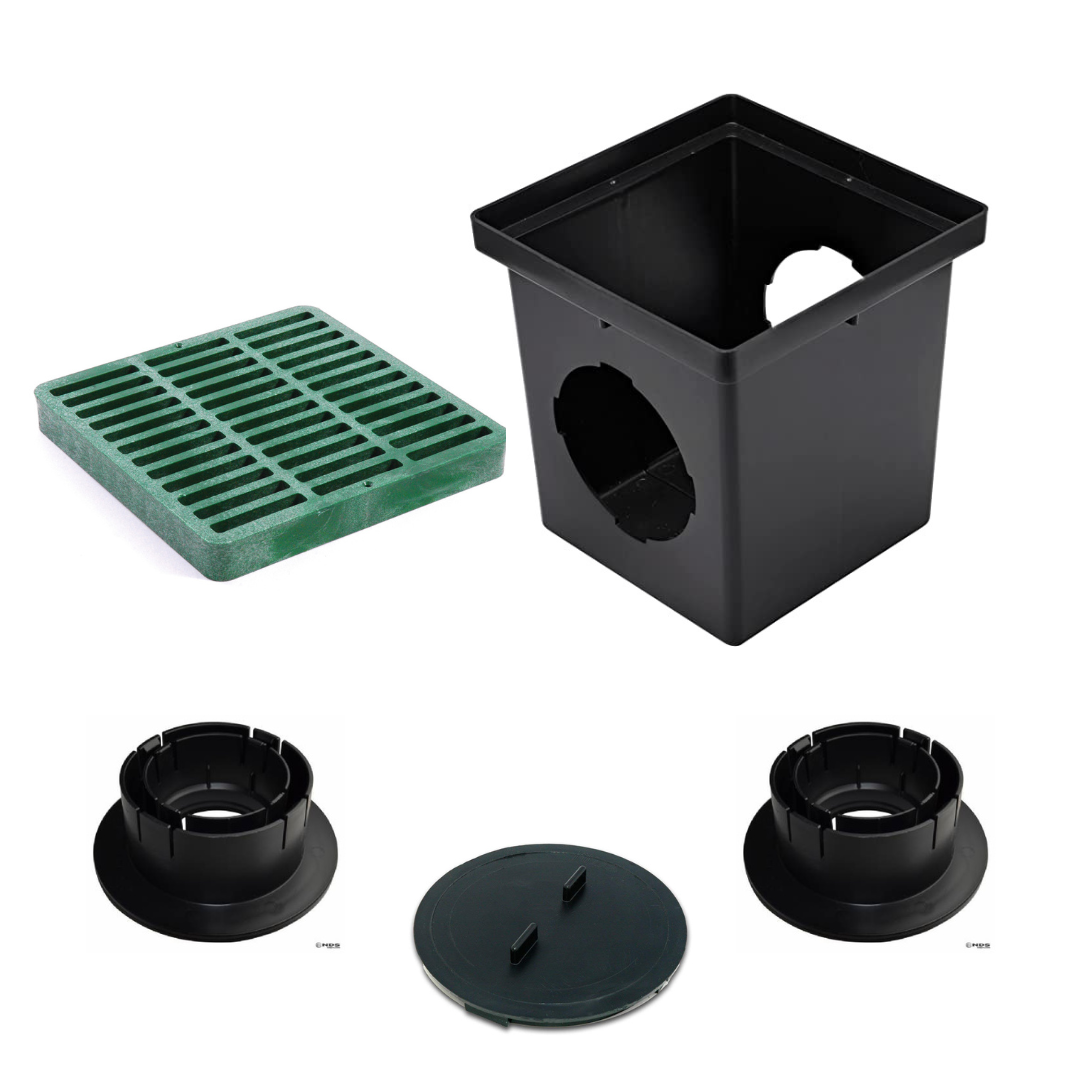

Kit Components:

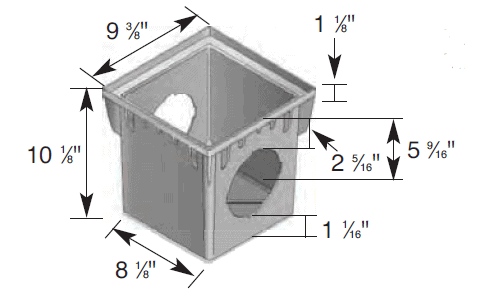

- (1) 9'' Two-Opening Catch Basin #900

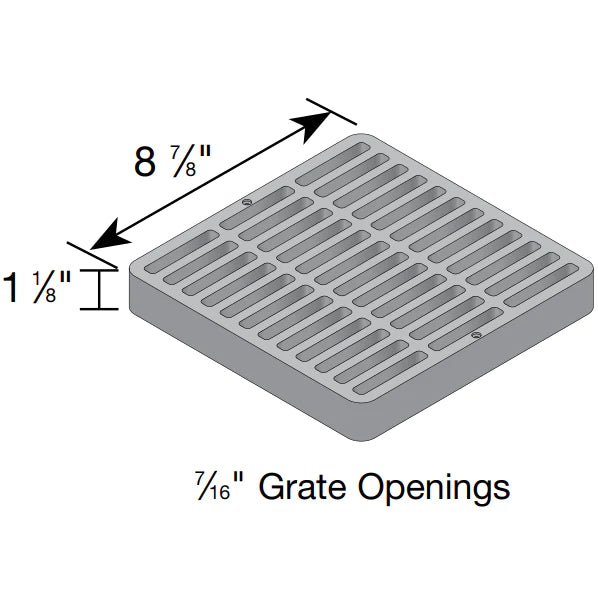

- (1) Green Grate #990
- Structural Foam Polyolefin Grate with UV inhibitor. Flow Capacity 155 GPM.
- (2) Outlets for 3'' & 4'' Drain Pipe #1243
- (1) Basin Plug #1206
Pipe Compatibility:
- 3'' & 4'' drain pipes
- 6'' Corrugated, Sewer & Drain Pipe using Outlet Adapter #1266 (Not Included)
Applications

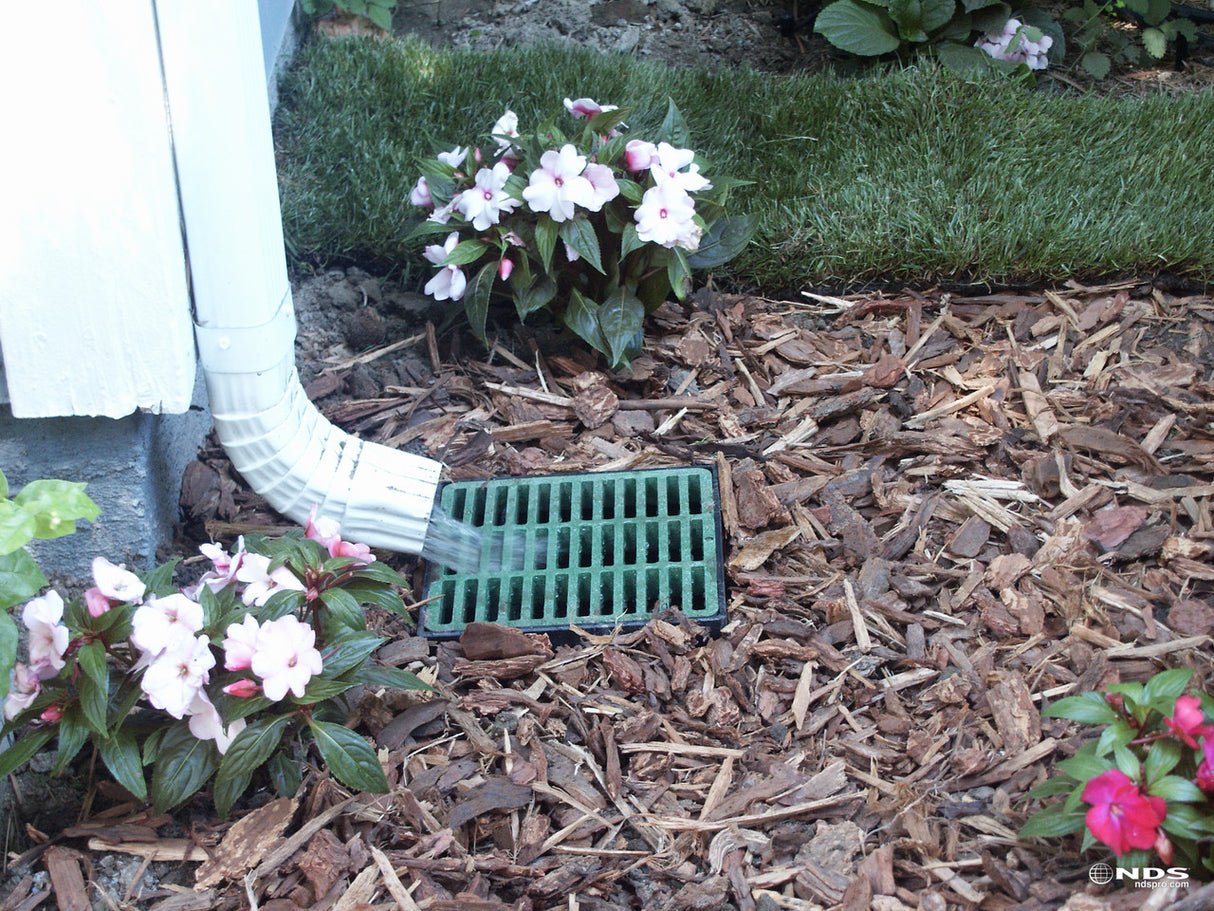

Use to collect medium-volume water flow from wet areas in yards, lawns, fairways and sports fields. Can also be used in patios, garages and driveways. Use in areas where water buildup occurs. Use to catch and divert water to water safe areas away from structures, erosion-prone landscapes and poor drainage areas.
- Collects excess surface water from lawn, landscape, residential driveways and garages.
- Suitable for light vehicular traffic when properly installed
-
Load Rating: Class B
- Loads of 61-175 psi.
- Recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 m.p.h.
- Suitable for both landscape and hardscape applications
- Ablility to withstand normal abuse in landscaping applications
- sump area collects debris and helps prevent clogged pipes
- 5 psi maximum working pressure
- Fade & rust resistant
- Lightweight
- Easy to install.
- Part of NDS 9" Catch Basin Series.
- Black Catch Basin with Green Grate
Specifications
Use with
- 3", 4", 6" corrugated singlewall pipe
- 3", 4" TripleWall pipe
- 3", 4", 6" SDR 35 pipe
- Singlewall HDPE fittings
