NDS - 864GMTL - 5'' Pro Series Channel Drain Kit w/ Metal Grate

NDS  |  SKU: 864GMTL
$11715 $17573

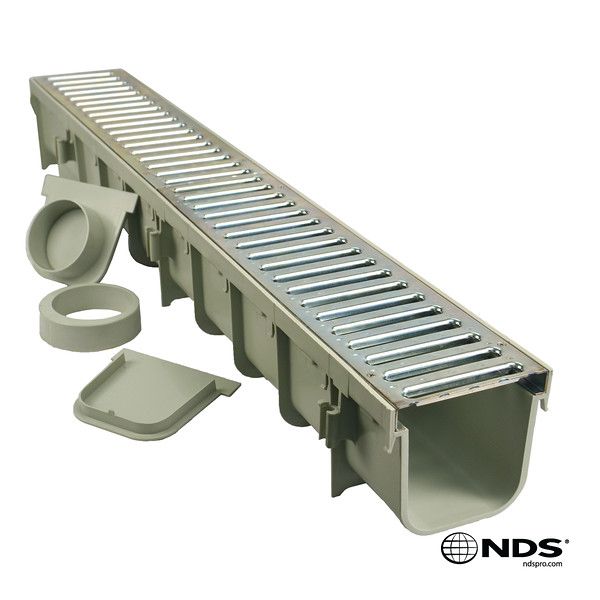

5'' Pro Series Channel Drain Kit with Metal Grate

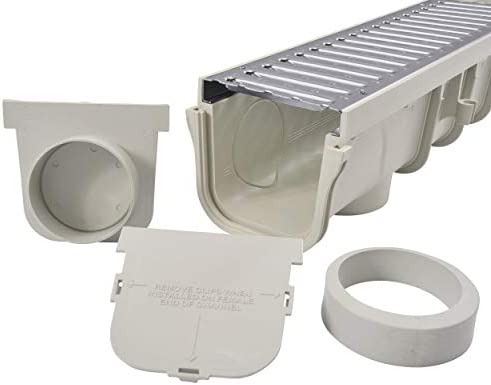

Kit Includes;
  • 1 Meter (39-3/4") of channel drain and grate
  • (2) Galvanized Steel Grates
  • Includes 1 End Outlet #813; Fits 3” (Hub) and 4” (Spigot) Sewer/Drain Pipe
  • 1 End Cap #812
Features
  • Unique interlocking design
  • Allows each channel to securely lock to the next for a secure, tight fit
  • A bottom outlet is built into each channel section and fits 3" & 4" S&D fittings
  • Includes 1 meter (39-3/4") of channel drain and grate
  • Includes 1 end outlet and 1 end cap
  • Extended ribs to make channel more sturdy
  • Lay-Flat design increases stability
  • New rebar tie clips for easier installation: Fits #4 Rebar
  • New clip-in feature (channel to channel)
  • Popular applications including driveways, courtyards, plazas, pool decks, parking lots, sports facilities and more.
  • Kit comes complete with channel, grates, screws, end caps/outlet and installation instructions.

The new and improved NDS 5'' Pro Series Deep Profile Channel Drain Kit is the most durable, feature-rich and easy to install modular drainage system in its class. channel is made from injection-molded polypropylene with extended side ribs for increased channel strength and UV inhibitors to prevent fading and cracking. Included slotted grates are light-gray HDPE for up to Class B loading and are ADA-compliant. Channels snap end-to-end quickly and easily with robust male-to-female locking clips for long channel runs. Cut guides allow the channel to be shortened by 4-inch increments for smaller interlocking sections. Included end cap and end outlet combined with new integrated second bottom outlet and side-outlet knockouts provide 8 outlet options per channel section for increased design and installation flexibility. The new side outlets now allow 90-degree, tee and cross configurations to be made in the field without specialty accessories.

Specifications
Length: 39-3/4 in.
Width: 5.5 in.
Height: 4.75 in.
Weight: 7.70 lb
ADA: Yes
Load Rating: Class B
  • Loads of 61-175 psi.
  • Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 m.p.h.
Style: Flat
Capacity: 59 GPM per foot with 1/2'' of head.
Grate Opening: 0.45'' x 4''
