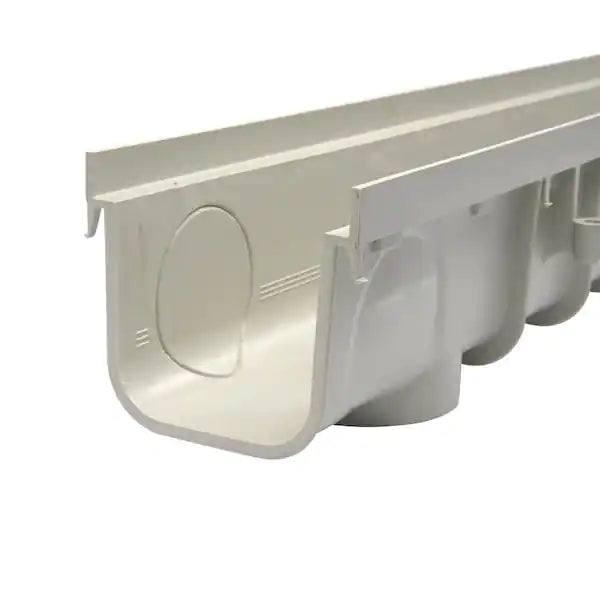

NDS - 800 - 5'' Pro Series Channel Drain

NDS  |  SKU: 800
$7145 $10718

5'' x 1 Meter Profile Channel Drain. Deep.

Features
  • Grates sold separately (ADA Compliant, Require 2 grates per Pro Series Channel)
  • Use with End Cap (#812) and Outlet (#813)
  • Channels snap end-to-end quickly and efficiently with robust male-to-female locking clips for long channel runs.
  • Joints eliminate couplings and are specially designed to withstand concrete expansion and contraction.
  • Cut guides to allow the channel to be shortened by 4-inch increments for smaller interlocking sections.
  • Rebar tie clips for easier installation: Fits #4 Rebar.
  • Lightweight parts connect easily to sewer and drain pipe and fittings or Sch 40 pipe and fittings, and side and bottom outlets can be connected anywhere along the channel run.
  • Broad range of loading (Up to Class C with appropriate grate) and usage applications including driveways, courtyards, plazas, pool decks, and parking lots, sports facilities, and more.

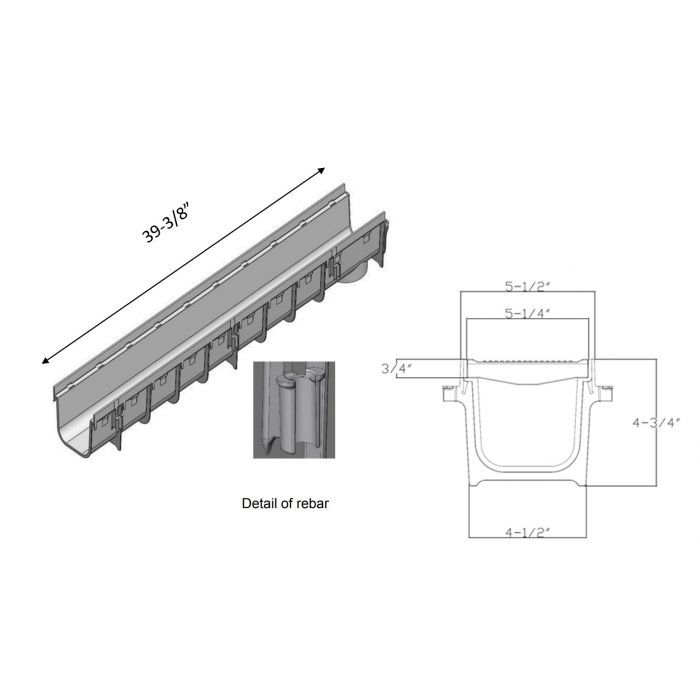

Specifications
  • Length: 1 Meter (39-3/8'')
  • Width: 5-1/2''
  • New Integrated side outlet Knockouts fit 3" S&D pipe

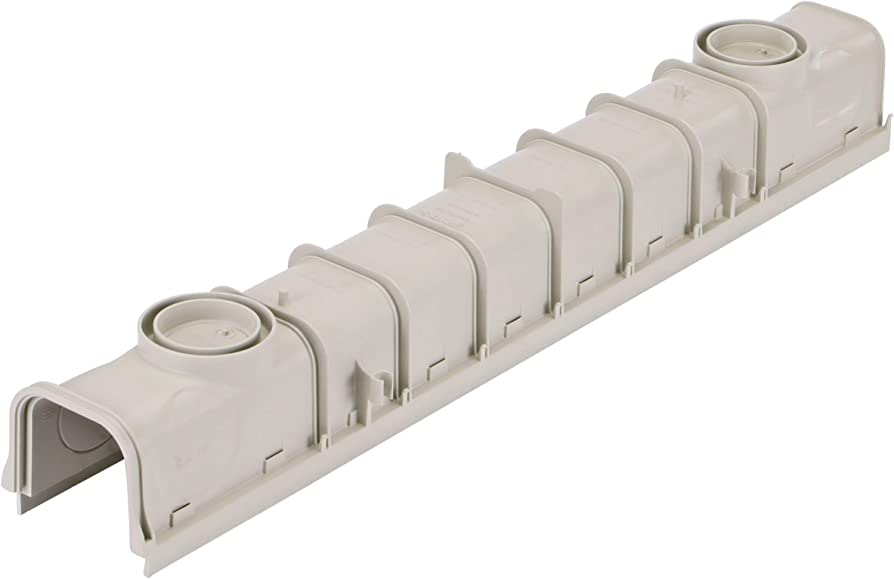

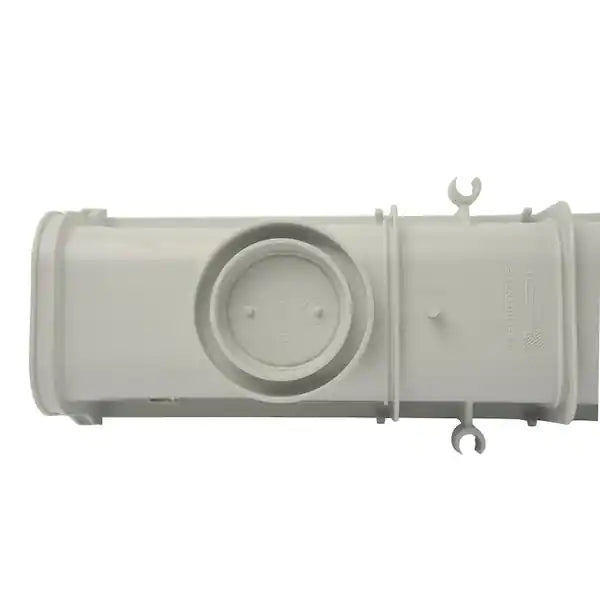

  • Integrated Knockout bottom outlet fits 3" and 4" S&D fittings.
  • Grate should be recessed 1/8" below finish grade in non-traffic applications.
  • Grate should be recessed 1/4" in traffic applications.

    NDS has designed an upgraded and improved NDS 5'' Pro Series Deep Profile Channel Drain. The new NDS 5" pro series channel drain is the most durable, feature-rich, and simple to install modular drainage system in its class. Pro series channel drains are molded with polypropylene, with extended side ribs for increased channel strength.  Available end caps and end outlets combined with new integrated second-bottom outlet and side-outlet knockouts provide 8 outlet options per channel section for increased design and installation flexibility. The new side outlets now allow 90-degree, tee, and cross configurations to be made in the field without specialty accessories. New strengthened #4 rebar clips along the channel sides allow for quicker and easier installation and increased system strength. Pro Series Channel Drains are compatible with up to 10 different grate options including heel-proof perforated and ADA-compliant slotted styles. The grate materials high-density polyethylene with 6 color options, glass-filled nylon, and also ductile iron.
