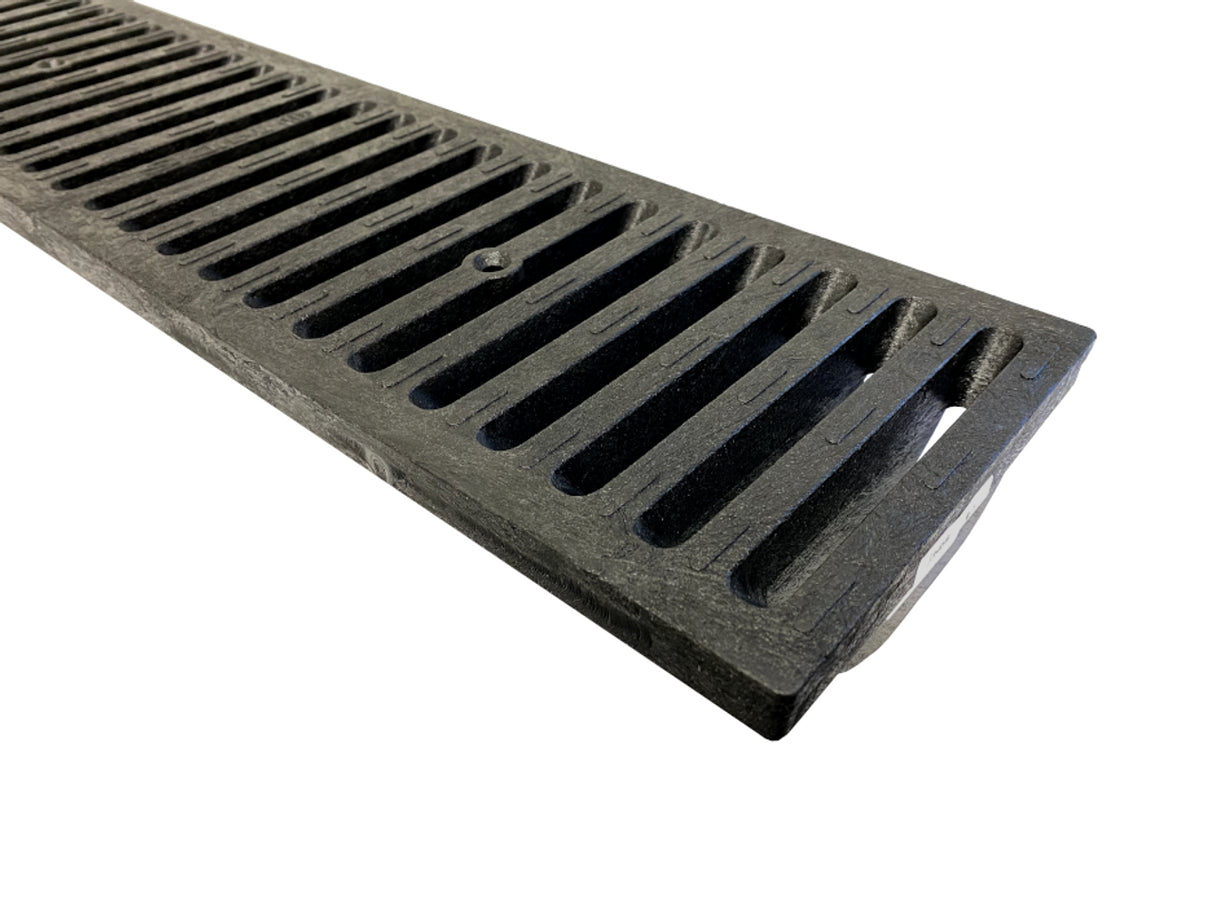

NDS - 663 - 2' Dura Slope Plastic Channel Grate, Black
NDS | SKU:
663
$6998
$10498
Unit price
/
Unavailable
NDS - 663 - 2' Dura Slope Plastic Channel Grate, Black is backordered and will ship as soon as it is back in stock.
2' Dura-Slope Channel Grate, Black
- Use with Dura Slope Channel Drains and Dura Slope Catch Basins #DS-340
- (2) Grates required per Dura Slope Channel Drain.
- (1) Grate required per Dura Slope Catch Basin
- Requires 2 Screws Per Grate #629 (Not Included - If purchasing with a Dura-Slope drain or catch basin, then the screws will come preinstalled with the Dura-Slope.)

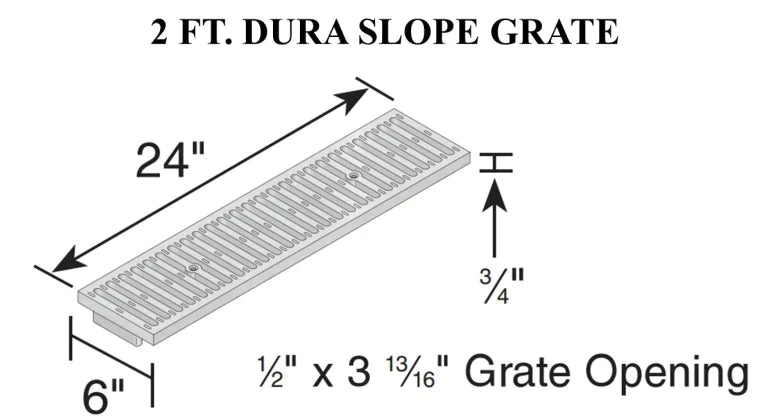

Specifications
Product type: Grates
Material: UV Protected High Density Polyethylene (HDPE)
Color: Black
Length: 24 in.
Width: 6 in.
Height: 0.75 in.
Weight: 2.82 lb
ADA: Yes
Load Rating: Class B
- Loads of 61-175 psi.
- Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 m.p.h.
Style: Flat
Capacity: 27 GPM per foot with 1/2'' of head.
Grate Opening: 1/2'' x 3-13/16''
Downloads
-
Box QuantityN/A
