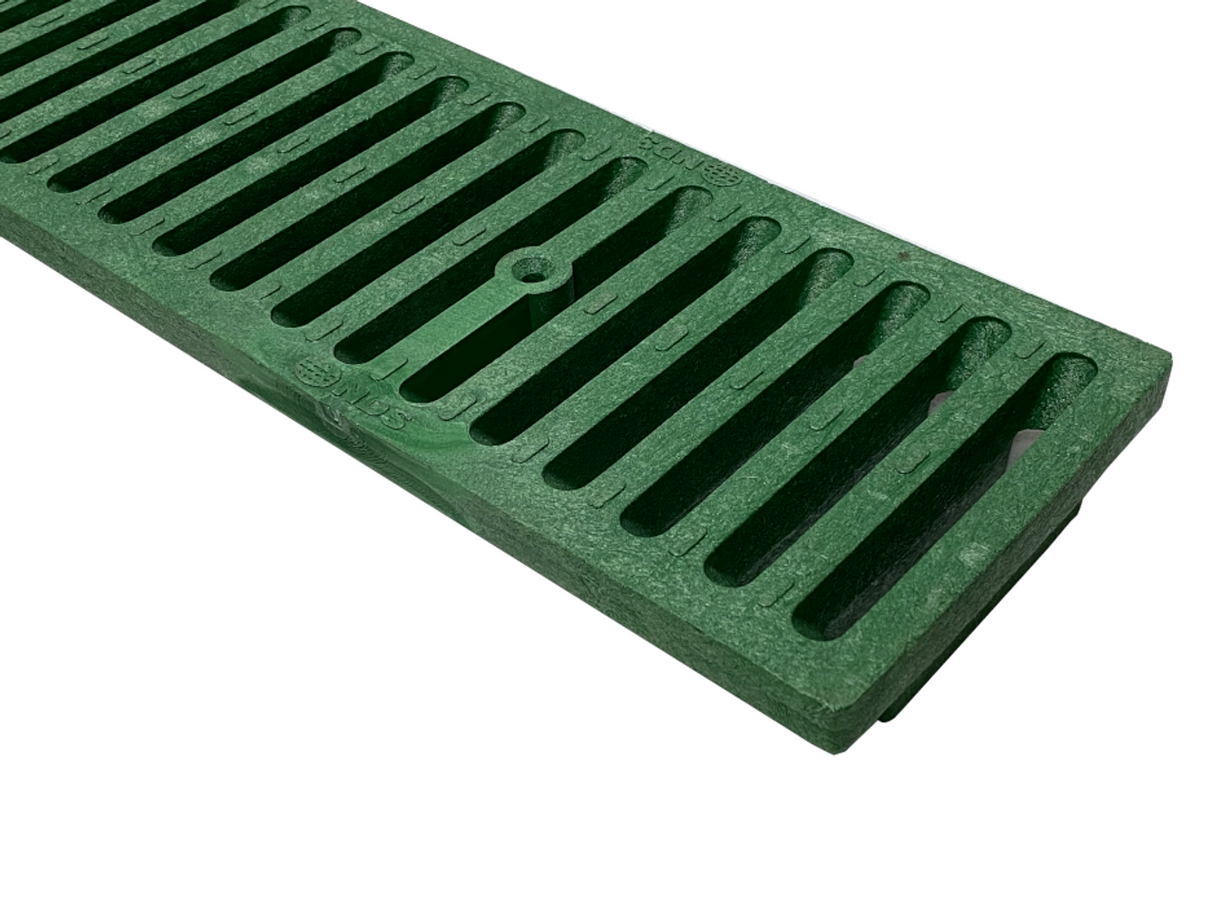

NDS - 662 - 2' Dura Slope Plastic Channel Grate, Green

NDS  |  SKU: 662
$7388 $11083


2' Dura-Slope Channel Grate, Green
  • Use with Dura Slope Channel Drains and Dura Slope Catch Basins #DS-340
    • (2) Grates required per Dura Slope Channel Drain.
    • (1) Grate required per Dura Slope Catch Basin
  • Requires 2 Screws Per Grate #629 (Not Included - If purchasing with a Dura-Slope drain or catch basin, then the screws will come preinstalled with the Dura-Slope.)

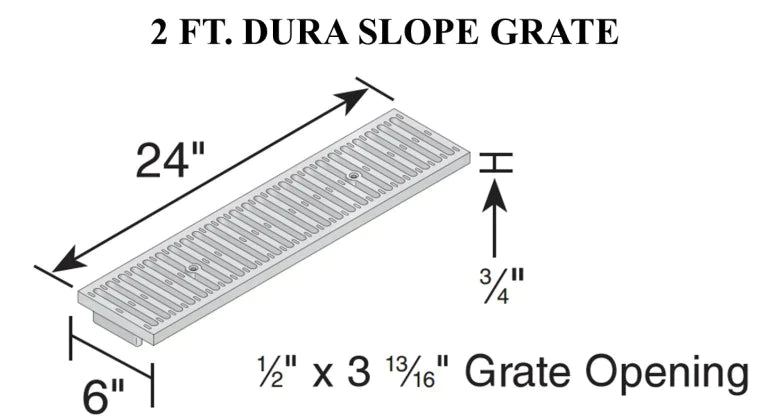

Specifications
Product type: Grates
Material: UV Protected High Density Polyethylene (HDPE)
Color: Green
Length: 24 in.
Width: 6 in.
Height: 0.75 in.
Weight: 2.82 lb
ADA: Yes
Load Rating: Class B
  • Loads of 61-175 psi.
  • Recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 m.p.h.
Style: Flat
Capacity: 27 GPM per foot with 1/2'' of head.
Grate Opening: 1/2'' x 3-13/16''
