NDS-50 - 6'' Green Round Drainage Grate
by NDS
SKU 50
Save 38%
Original price
$18.51
Current price
$11.39

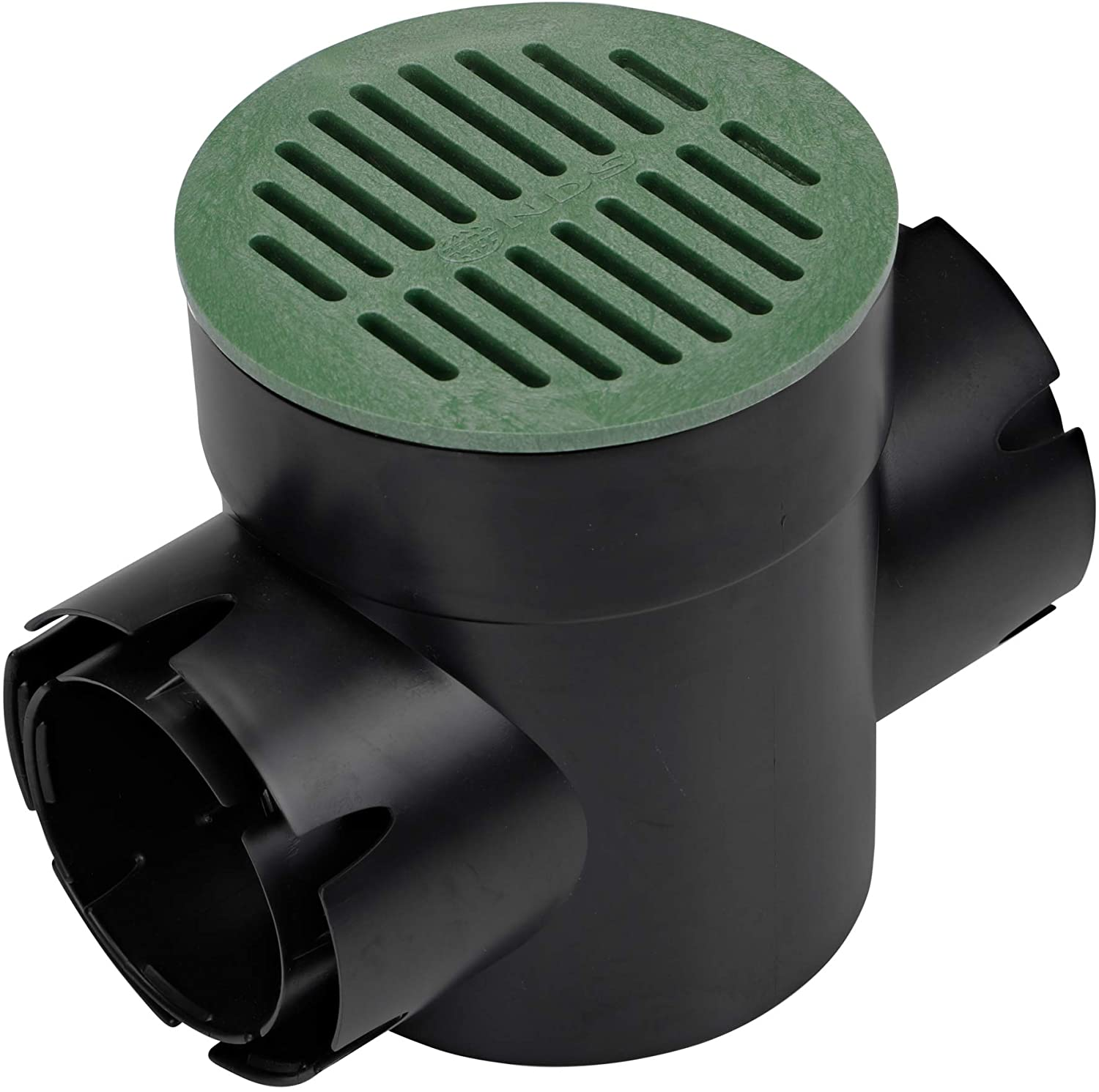

6'' Round Grate
- Fits: Spee-D Basin, 6" Sewer and Drain Pipe and Fittings, 6" Corrugated Pipe ,SDR-35, ABS, SCH-40, Double Wall, ASTM D2729, Class 100 Pipe (Sold Separately)
- Place on top of Spee-D Basin or drain Pipe for a soil-tight fit
- Ideal for draining light water flows from small lawns, landscaped areas, walkways, and patios
Used to drain excess water and direct it to a more water safe area such as a curb or gutter. Can be used in large lawn areas, large landscape areas, patios, and atriums. Can be used with Spee-D ® Basin, 6” Sewer and Drain Fittings, 6” Corrugated, SDR-35, ABS, SCH-40, Double Wall, ASTM D2729, Class 100 Pipe. Will accommodate 27.84 gallons per minute with 1/2” of head.
General
Product type: Grates
Material: Polypropylene
Color: Green
Length: 6.75 in.
Width: 6.75 in.
Height: 2.38 in.
Weight: 0.8 lb
ADA: Yes
Load Rating: Class A
- Loads of 1-60 psi.
- Recommended for pedestrians, bicycles and wheel-chair traffic
Style: Flat
Capacity: 28 GPM
Grate Opening: 1/4''
