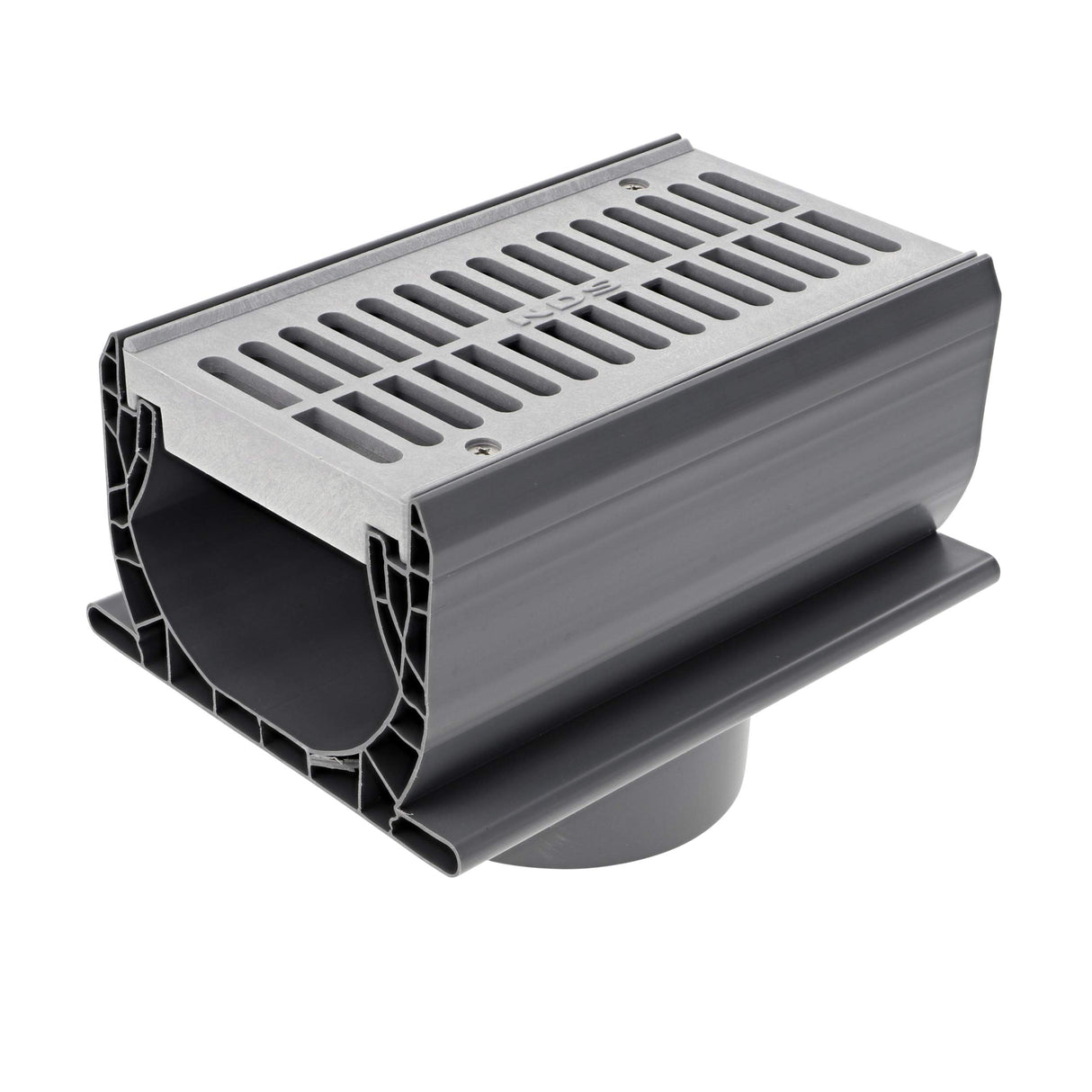

NDS - 2351 - 7'' Spee-D Channel with Grate and 3'' & 4" Bottom Outlet

• Channel drain and grate accessory attaches to Spee-D Channel Drains with coupling #248 (sold separately)
• Bottom outlet is integrated into the channel drain and connects to 3'' & 4'' Sewer and drain Fittings
• Works with the Spee-D Channel Drain, part of the NDS Profile Channel series, to capture moderate flows from driveways, concrete & paver patios, pool areas, courtyards, & walkways to prevent slippery mildew, concrete staining, and costly structural damage
• Rated for NDS Class B loads of (up to 175 psi) when properly installed-recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph; ADA compliant
• Use with the Spee-D Channel Drainage system to collect and direct water to drain pipes for proper release downstream

The multifunctional Spee-D Channel Drain Bottom Outlet Assembly features a 7 in. channel that comes with a prefastened grate to cut down installation time. Bottom outlet connects to 3 in. & 4 in. sewer and drain fittings. Channel is made of polyvinyl chloride and connects with a coupling; grate is made of polyethylene treated with UV inhibitors.

Downloads

• Spee-D Channel Accessories Spec Sheet
