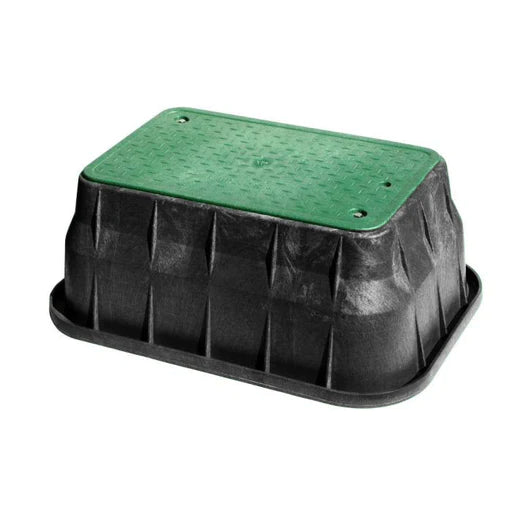

NDS - 324BCB-BG - 17'' x 30'' x 15'' Pro-Spec Valve Box
- Colors: Black Box/Green Lid
- Includes: 2 x 1/2” x 3/8” stainless steel bolts and zinc washers
- Box includes 3/8-16 brass nuts Made in USA
- Designed for professional contractor and heavy-duty use
- Load rating: Pedestrian & lawn care equipment
- Offers superior strength for non-residential and utility applications
- Weight: 41.2 lbs
- Product Class: 20ND

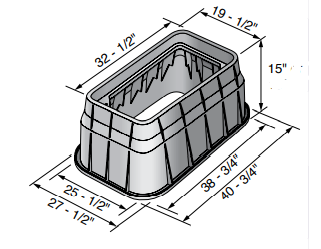

The NDS Pro-Spec™ 17" x 30" body is tapered and has a minimum wall thickness of 0.320". The body has a double wall at the top cover seat area with a minimum thickness of 0.320". The cover seat area has 20 structural support ribs on the underside of the seat, each with a minimum thickness of 0.250". The bottom of the body has a 1.000" flange. The 17" x 30" cover has an average thickness of 0.350". The valve box shall have a 3/8" 304 S5 nut for the bolt-down as a standard feature.
Next Generation Commercial Grade
The NDS Pro-Spec™ Series is the next generation of valve boxes, ideal for the specification market. These boxes are engineered with unique corrugated sidewalls that provide added strength to the boxes while reducing material and weight. The NDS Pro-Spec™ boxes are the strongest in the NDS offering, and they also come with reinforced lids.
Details
- Corrugated sidewalls provide greater strength
- Specification grade valve boxes for professional applications
Materials & Standards
- High-impact, high-density, injection-molded structural foam polyethylene construction with a melt index between 10-12
- Overlapping covers prevent dirt and grass from settling in between body and cover
- UV inhibitors prevent discoloration and cracking
