NDS - 117BC - STD 13"x20"x12" Box and Overlapping Lid, Green Lid/Black Body

by NDS
Save 1%
Original price $68.95
Current price $68.26
SKU 117BC




PRODUCT DETAILS


Keep irrigation system components protected and out of sight in your landscape with the 13'' x 20''. Jumbo Valve Box and Cover. The irrigation valve box covers large-sized valves, control zone kits, and other irrigation equipment, providing a safe and clean environment with access for maintenance. Engineered for durability, the black valve box and green cover are designed with structural reinforcing ribs to withstand damage from the elements, pedestrian traffic, lawn care equipment, and potential vandalism. The jumbo valve box features a pipe hole to make direct irrigation pipe connections. Rectangular lid is marked for Irrigation Control Valve (ICV) use. Convenient slot makes lid easy to lift with a flathead screwdriver. Irrigation box is made of polypropylene (PP) using 100% recycled materials; lid is made of high-density polyethylene (HDPE) using a combination of virgin and recycled materials. Both box and cover are treated with UV inhibitors to prevent fading and cracking due to sun exposure.

    Features & Benefits

    • Protect irrigation system components from the elements, foot traffic, lawncare equipment, and potential vandalism, and keep them out of sight
    • Use to protect irrigation system components
    • Fits over irrigation fixtures such as valves, control zone kits, and other irrigation accessories
    • Valve box and lid support pedestrian traffic and lawn care equipment
    • Structural reinforcing ribs provide support and strength to protect items housed inside against damage
    • Overlapping cover prevents dirt and debris from entering the box; ICV designation; slot on lid for easy lifting with flathead screwdriver
    • Pipe hole facilitates irrigation pipe connections without having to dig under the box. N/A
    • Comes with one 13 in. X 20 in. rectangular valve box and cover
    • Build valves and connect pipes; dig to allow enough depth so the lid is flush with the surface; add layer of gravel for drainage before placing box and cover in place, thread irrigation pipe through the hole; backfill
    • Box made of polypropylene (PP) using a 100% recycled content treated with UV inhibitors to prevent fading and cracking. Lid made of high-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking

    Product Details

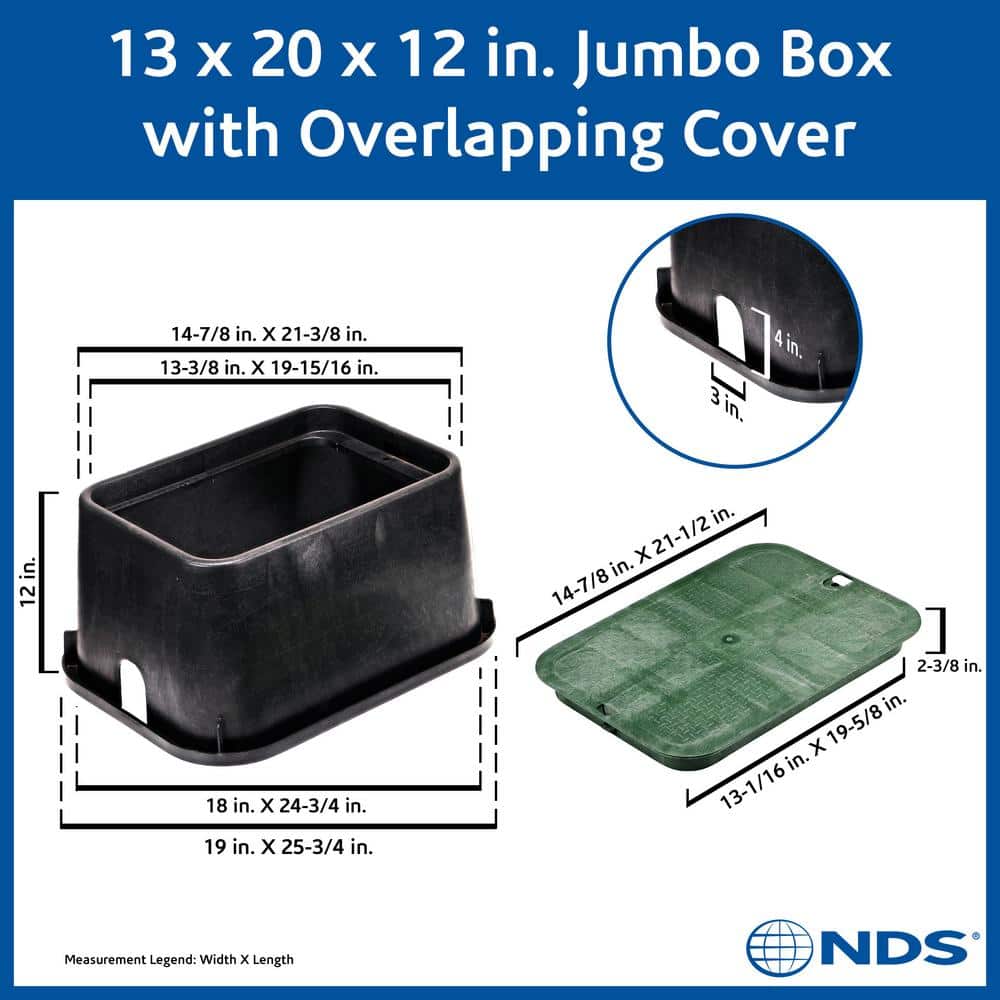

    • Box top dimensions: top inside dimension (ID) 13-3/8 in. X 19-15/16 in.; top outside dimension (OD) 14-7/8 in. X 21-3/8 in.; Box bottom dimensions: bottom ID 18 in. X 24-3/4 in.; bottom OD 19 in. X 25-3/4 in.
    • Box height: 12 in.; Box pipe hole dimensions: 3 in. X 4 in.
    • Lid dimensions: Top dimension 14-7/8 in. X 21-1/2 in.; bottom dimension 13-1/16 in. X 19-5/8 in.; rim thickness 1/4 in.; overall height 2-3/8 in.
