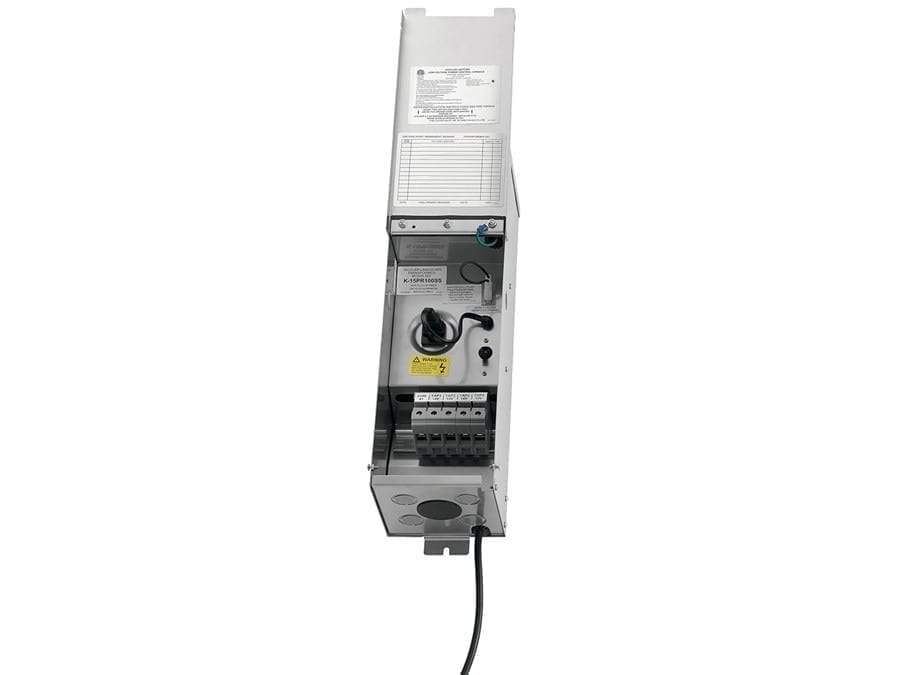

Kichler - 100W Lighting Transformer (Pro Series) - 15PR100SS

Low Voltage 100 Watt Pro Series Transformer

PROFESSIONAL SERIES - Kichlers Professional Series provides the best options and flexibility needed for most installations. Output voltage range will suit most jobs. Features include a commercial grade toroid core and coil submersible rating, pluggable timer and photocell outlets, plus a lifetime warranty.

Features:

• 12V, 13V, 14V, and 15V taps
• Fully enclosed housing constructed of #304 grade stainless steel
• High-efficiency E.I. core and coil
• Epoxy encapsulant for greater protection against the elements
• In-line magnetic breaker on the secondary circuit protects against shorts
• Easy installation with 30° tilted taps and large capacity lugs hold up to (8) 10 gauge or (10) 12 gauge wires per tap
• Drop-down bottom panel with pre-punched trade size knockouts for conduit
• Mounting brackets are welded and riveted in place for extra strength
• Voltage: 12 (Low Voltage)

Dimensions:

• Height: 19"
• Width: 5 1/2"
• Depth: 5 3/4"

Compatible Accessories:

• Timers: Purchase the 15556 digital or 15557 mechanical timer
• Photocells: Purchase the 15565 plug-in or 15534 remote photocell

Downloads

• Instruction Sheet

• Spec Sheet
• Low Voltage Transformer Comparison Chart
