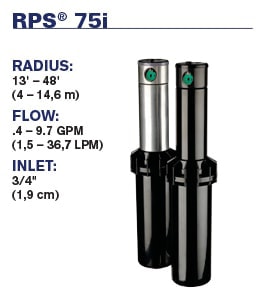

The RPS® 75i rotor is designed for residential and light commercial applications. This new addition to K-Rains line of rotors retains all of the features and benefits of the RPS® 75 and delivers even more! To reduce the radius and distance in other rotors on the market, the nozzle must be changed or the break-up screw must be engaged. These steps limit the maximum reduction to 25% and cause uneven watering.

With the RPS® 75i, a simple turn of the patented Flow Shut-Off controls distance and water flow proportionately‚ up to 50%. The RPS® 75i delivers even water distribution, eliminates dry spots and provides better zone performance while saving water. All of this in just one rotor: the right rotor for every landscape!

This model contains stainless Steel Riser and a Purple Cap for Reclaimed Water Usage. Contains a pre-installed Check Valve to prevent low head drainage.

FEATURES AND BENEFITS:

• Reduce Distance and Flow Rate Proportionately
• Save Time on Every Project ‚ New or retrofit
• Rugged RPS Family Construction
• Conserves Water
• Superior Uniformity
• Fewer Zones Required
• Improved Hydraulics
• Stainless Steel Riser for Increased Durability

SPECIFICATIONS:

• Inlet: 3/4" (1,9 cm) Threaded NPT

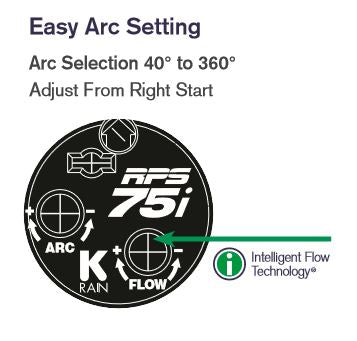

• Arc Adjustment Range: 40° - 360°
• Flow Range: .4 - 9.7 GPM (1,5 - 36,7 LPM)
• Pressure Rating: 30 - 70 PSI (2,1 - 4,8 bar)
• Precipitation Rate: .22 - 1.37 in/hr (6 - 35 mm/hr)
• Overall Height (Popped Down): 7 3/8" (19,7 cm)
• Recommended Spacing: 17' - 45' (5,2 - 13,7 m)
• Radius: 13' - 48' (4 - 14,6 m)
• Nozzle Trajectory: 26°
• Low Angle Nozzle Trajectory: 11°
• Nozzles Included: 8 Standard, 4 Low Angle
• Riser Height: 4" (10,2 cm)
