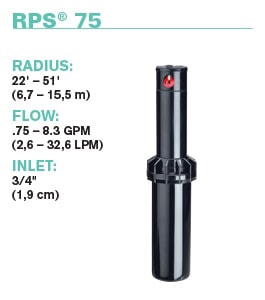

K-Rain - RPS75-SH - 3/4" RPS Shrub Rotor

K-Rains RPS® 75 gear drive rotor is capable of covering an area of 22' - 51' at a nozzle pressure of 20 to 70 PSI with a discharge rate of .75 to 8.3 GPM.

This workhorse is built to perform trouble-free for years and has unequalled value in the market. Our patented reversing mechanism, on which all rotors are based upon today, assures continuous reverse and return. With K-Rains wide selection of standard and low angle nozzles, the RPS 75 provides even water distribution.

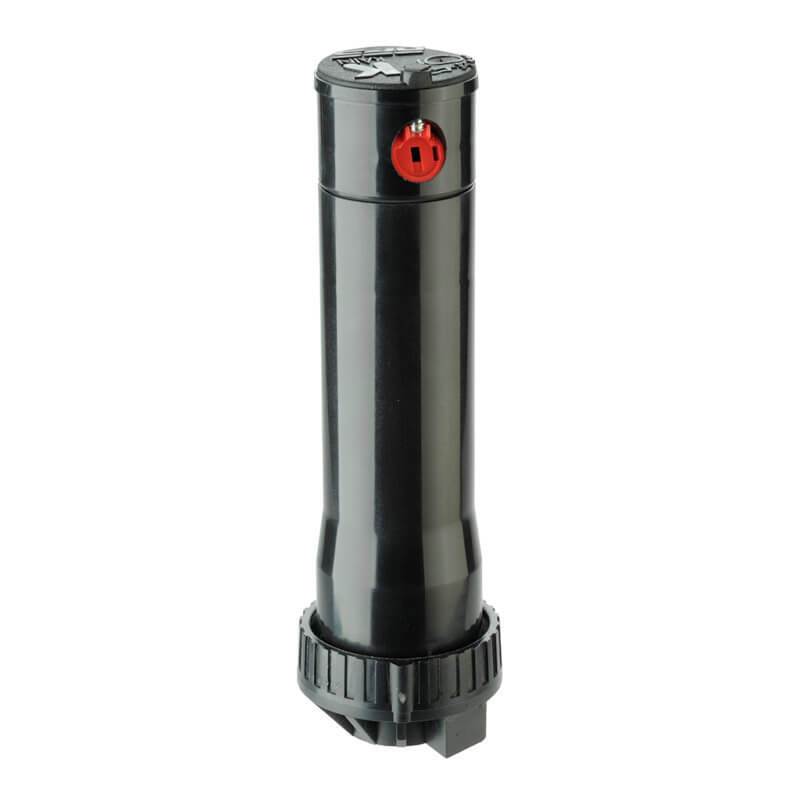

This Model is a Shrub Head that does not pop-up.

Includes:

• 1 Nozzle Tree per Rotor. (Includes 8 standard & 4 Low angle nozzles)
• 1 Rotor Key included in purchase of 10+ Rotors. 2 keys per case of 20.
• If you purchase less than 10 rotors then a rotor key will need to be purchased separately. Rotor key is part P1000901.

SPECIFICATIONS:

• Inlet: 3/4" (1,9 cm) Threaded NPT
• Arc Adjustment Range: 40° - 360°
• Flow Range: .75 - 8.2 GPM (2,6 - 32,6 LPM)
• Pressure Rating: 30 - 70 PSI (2,1 - 4,8 bars)
• Precipitation Rate: .16 - .70 in/hr (4 - 18 mm/hr) (Depending on Spacing and Nozzle Used)
• Recommended Spacing: 25' - 45' (7,6 - 13,7 m)
• Radius: 22' - 51' (6,7 - 15,5 m)
• Nozzle Trajectory: 26°
• Low Angle Nozzle Trajectory: 11°
• 8 Standard and 4 Low Angle Nozzles Included with each Rotor
• Shrub Rotor Height: 7 1/2''

FEATURES AND BENEFITS:

• Direct Replacement for Hunter® PGP®.
• Right Position Start - Rotor rotates counterclockwise from fixed right start position.
• Top Adjustment - No training necessary - the RPS® 75 has the same adjustment procedure as the Hunter® PGP®.
• Full and Part Circle Rotation - Provides a full range of adjustment from 40° to 360°.
• Non-flushing Wiper Seal - Reduces leaks caused by debris trapped under seal.
• 3/4" (1,9 cm) Inlet - Replaces all standard rotors.
• Ideal for Low Flow Applications.
• Universal Adjustment Tool - Compatible with existing Hunter® products.
• Rubber Cover - Seals out dirt and increases durability.
• Wide Selection of Nozzles - Including standard and low angle, provides flexibility in system design.
• Five Year Limited Warranty

Manuals & Literature

• Product Brochure and Performance Data

• Setting Instructions
