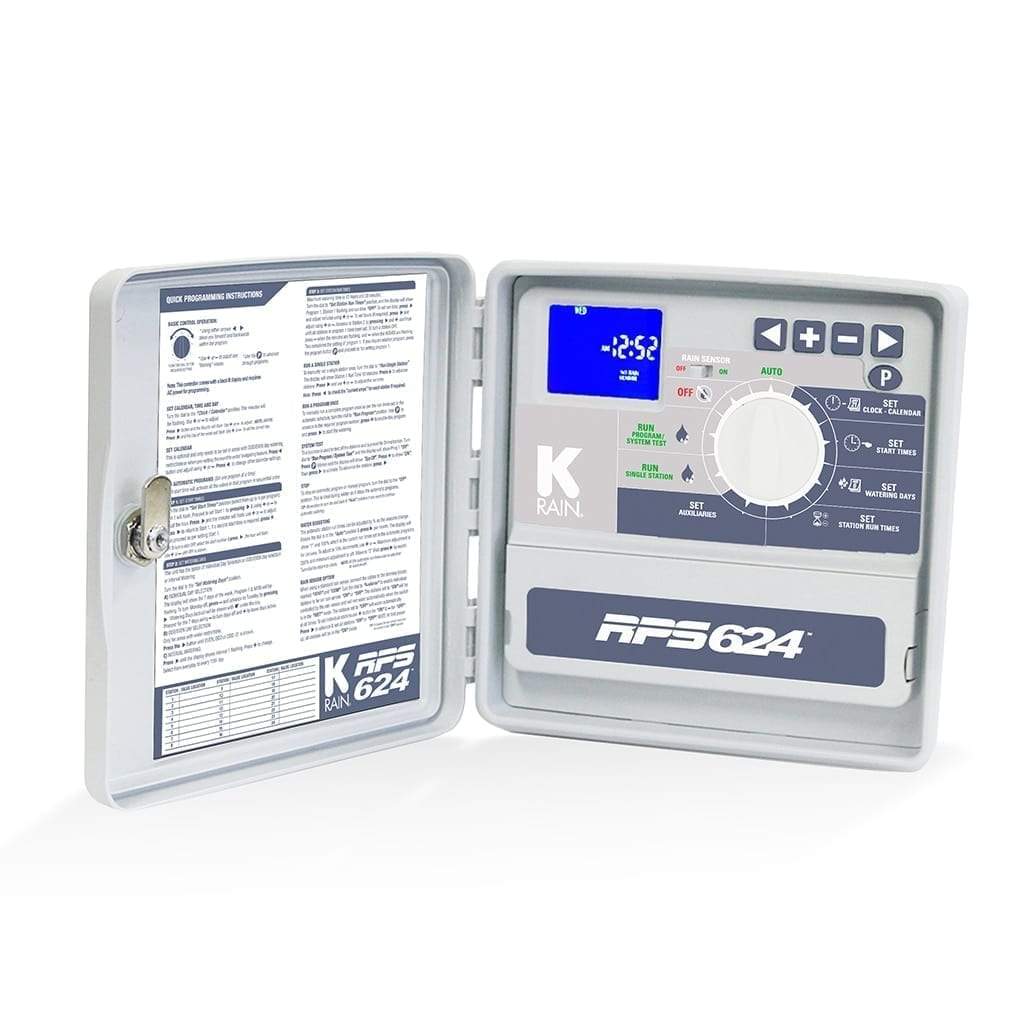

K-Rain - 3924 - RPS624 Irrigation Controller, 24 Station Outdoor

A truly versatile irrigation controller featuring the latest in micro-processor technology and exclusive low energy, high-output toroidal transformer. Advanced features include current sensing and station skip with fault indication, and a real time clock maintains time through power outages.

This model is the 24 Station, w/ 110V Internal Transformer. If you need a pigtail/power cord with your controller. Purchase the 3924-P.

FEATURES AND BENEFITS:

• 24 Station Model
• 6 Fully Independent Programs- Up to 4 separate start times per program. Max. 24 starts per day.
• Permanent Memory- Saves programs during power outages.
• 7 Day Watering Cycle- Individual day selection, odd/even date selection or interval watering.
• Rain Sensor Ready- Allows programming of individual station(s) operation to be controlled by sensor.
• Rain Off- Suspends watering during winter while retaining the time and programmed information
• Flexible Manual Operation- Choose from automatic, semi-automatic and single station manual.
• System Test Feature
• Water Conservative- Quick adjustment of watering durations in 10% increments, OFF to 200%.
• Master Valve/Pump Start
• Second Programmable Pump- Available for dual water supply, fertigation or filtration control.
• Large Blue and White Backlit LCD- Easy to read, with "No ACindicator on LCD when power is out.
• Current sensing- On individual stations and faulty station skip feature.
• Low Energy Micro-processor - Ensures long battery life.
• Permanent Real-time Clock- Maintained by 3V battery- Toroidal high capacity trasformer.
• Outdoor Case- Lockable and waterproof.
• Audio Feedback - On key press and alarm.

SPECIFICATIONS:

• OPERATING SPECIFICATIONS
  • Station Run Times: 1 min. to 12 hours 59 min.
  • Number of Programs: 6
  • Number of Automatic Start Times: 4 per program
• ELECTRICAL SPECIFICATIONS
  • Power Supply: 110 VAC/240 VAC delivering a 24 VAC through a 30VA (1.25 AMP) rated Toroidal transformer
  • Electrical Outputs: 24 VAC, .75 AMP 24 VAC, .25 AMP
• DIMENSIONS
  • Height: 9" (22,86 cm)
  •  Width: 9 1/4" (23,5 cm)
  • Depth: 3 1/2" (8,9 cm)

Manuals & Literature

• Instruction Manual
• Product Brochure
