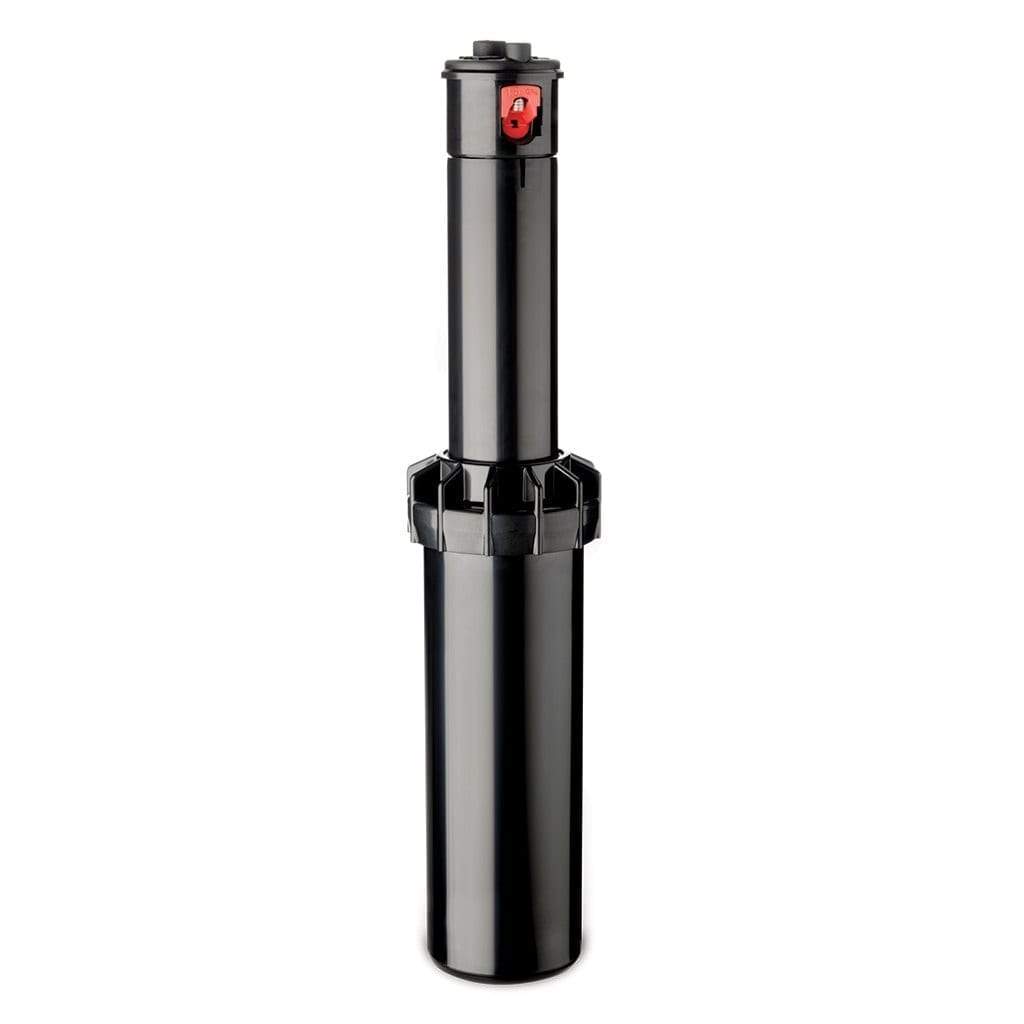

K-Rain - RPS50-CV - 1/2'' RPS Rotor w/ Check Valve

The RPS® 50 is a gear-driven, rotary sprinkler, capable of covering an area of 17' to 30' radius at nozzle pressure of 30 to 50 PSI with a discharge rate of .8 to 3.3 GPM.

The RPS® 50 is supplied with five (5) numerically coded interchangeable nozzles. Sprinkler nozzle trajectory is 26°. The sprinkler has a stainless steel radius adjustment screw and has arc adjustment from 40° to 360°.

This model contains a pre-installed check valve to prevent low head drainage.

SPECIFICATIONS:

• Inlet: 1/2" (1,3 cm ) Threaded NPT
• Arc Adjustment Range: 40° - 360°
• Check Valve - Prevents Low Head Drainage
• Flow Range: .75 - 3.3 GPM (2,8 - 12,5 LPM)
• Pressure Rating: 20 - 70 PSI (1,4 - 4,8 bar)
• Precipitation Rate: .26 - .60 in/hr (6,6 - 15,24 mm/hr) (depending on spacing and nozzle used)
• Overall Height (Popped Down): 6" (15,2 cm)
• Recommended Spacing: 17' - 30'
• Radius: 18' - 33'
• Nozzle Trajectory: 25°
• Riser Height: 4" (10,2 cm)

When considering the RPS® 50 gear driven rotor, think water efficiency. Designed for smaller areas, it is now available with a wide selection of nozzles and brings flexibility to system design.

FEATURES AND BENEFITS:

• Right Position Start- Rotor rotates counterclockwise from fixed right start position.
• Time Proven Patented Reversing Mechanism- Assures continuous reverse and return-over a 35 year history.
• Ratcheting Riser - Allows for easy adjustment of your right starting position with a simple turn of the riser.
• Rubber Cover- Seals out dirt and increases product durability.
• Wide Selection of Nozzles- Provides flexibility in system design.
• Check Valve- Prevents low head drainage.
