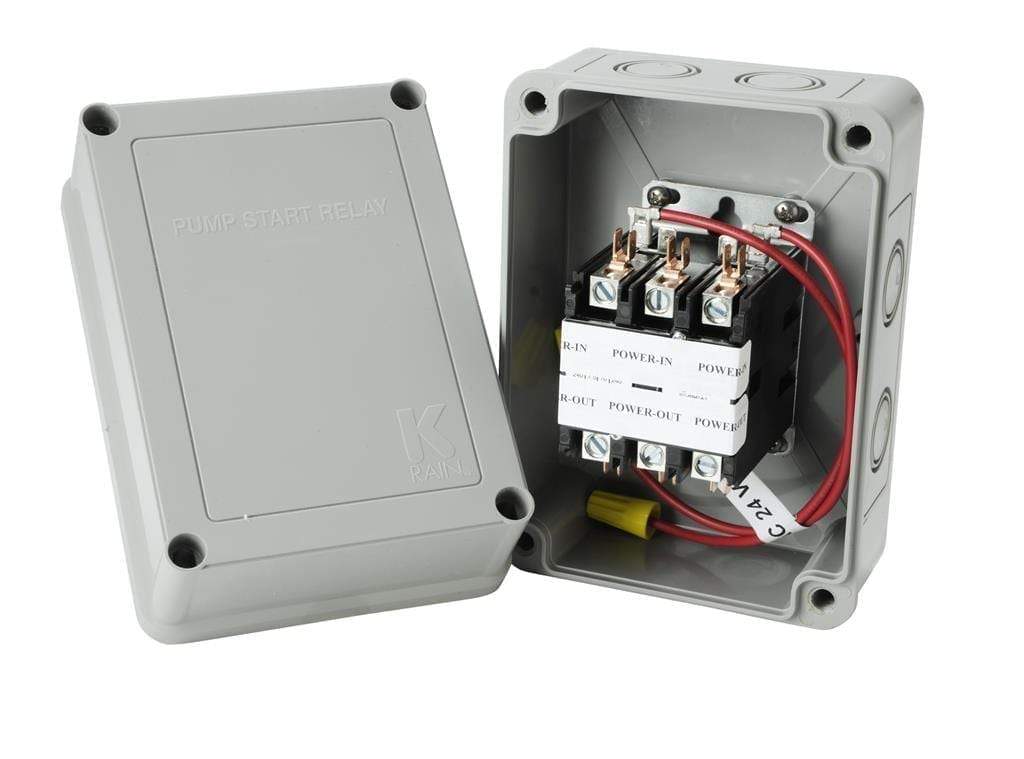

The Pump Start Relay enclosure is constructed with a corrosion resistant, UV resistant, shockproof material. The rain-tight, secure, rustproof enclosure provides a safe and secure connection in a housing built to last.

This model is 3HP@110 5HP@220 120V COIL.

Coil Specifications

• 110 VAC, 60 Hz
• INRUSH: 77 VA
• SEALED: 10 VA, 4 WATTS
• RESISTANCE (±10%): 89.5 OHMS

•  DOUBLE POLE, SINGLE THROW
•  INDUCTIVE: 40 AMP
•  RESISTIVE: 50 AMP
•  INPUT: 120 VAC - UP TO 3 HP, 240 VAC up to 5 HP

FEATURES AND BENEFITS

• 2 Year Trade Warranty- Factory support up to two years after purchase.
• Standard, Rain tight, Secure, Rustproof Enclosure- Provides a safe and secure connection in an enclosure that will last a lifetime.
• U.L. Rated Relay- Ensures that the relays are approved for its intended use.
• Large Easy Access Enclosure- Provides easy accessibility during wiring.
• Enclosure has 3 Recessed Knock-Outs- Provides for easy connections.
• 110 VAC or 24 VAC Coils Available- Provides for a variety of applications up to 7.5 HP.
