Programming control in the palm of your hand.

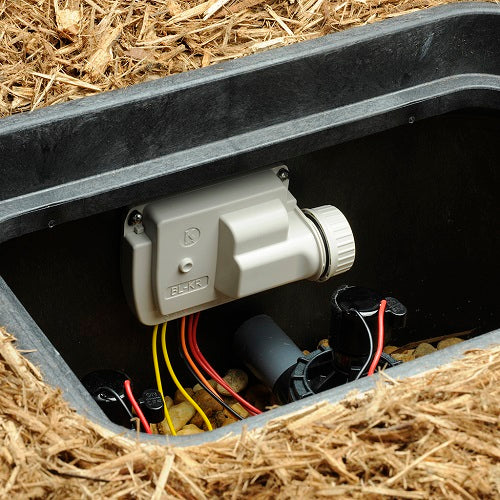

With 100% waterproof and rugged construction, the BL-KR is ideal for isolated sites and power-restricted areas. No more crawling around the valve box to program or troubleshoot a battery-powered timer. Programming is easy with a smartphone or tablet through direct Bluetooth communication up to 35' (10 m) away from the valve box. Add multiple controllers (up to 400 timers) and program simply and quickly from 1 free application.

SPECIFICATIONS

• 1 Station Bluetooth Controller
• Bluetooth Range; 35 feet
• Works with 9V DC Latching Solenoids
• Maximum distance between the timer and solenoid is 98 feet with 15 AWG
• Dimenions; Height: 2.16'', Width: 5.5'', Depth: 3.54''

FEATURES AND BENEFITS

• Change controller settings via smartphone, tablet or web browser
• Manage up to 400 controllers from one easy app that does it all.
• Geo-location feature – shows every site, every controller, every program.
• Updates you and your field team any time a setting is changed.
• Alerts you when a battery replacement is required.
• Rain sensor and rain/freeze sensor ready – Allows automated operation to be controlled by sensor
• IP68 certified fully waterproof enclosure installs right in the valve box.
• 1, 2, 4 and 6 station models
• Molded out of UV resistant, high impact ABS resin.
• Ideal for isolated/remote valve boxes where running power is expensive or difficult.
• Standalone – works with a 9V DC alkaline battery type.
• Full virtual back up – back up program information and preferences to the cloud for easy future restoration

Manuals & Literature

• Compatible Devices
• Instruction Manual
• Product Brochure
• BL-KR Quick Installation Guide

Free Smartphone/Tablet App Features

• Transform your iOS or Android smartphone or tablet into a remote control and fully program your BL-KR controller(s) using Bluetooth Smart technology from up to 35 feet away
• Detect battery levels/connection status
• Add a passcode lock to each controller for added security
• Add multiple BL-KR controllers (up to 400) and program/control them using 1 app on your smartphone, tablet or web browser

Web Portal and Management Platform

• Centrally program BL-KRs from a web interface by creating an account at myblkr.krain.com
• Create, back up and restore programs from app or web browser
• View all devices on an interactive map
• Get alerts when batteries need replacement
