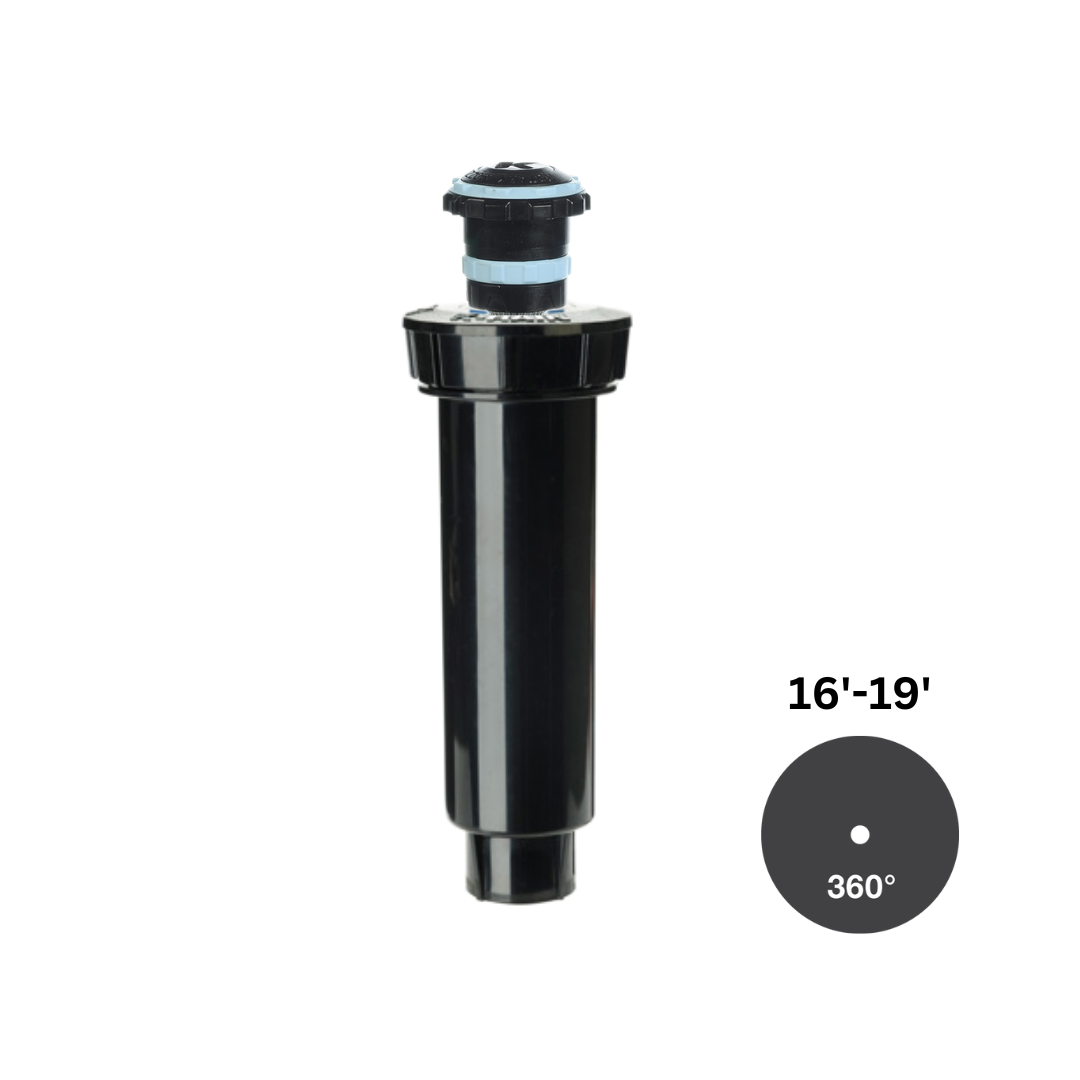

K-Rain - 78004-RN200-FIX360 - 4'' Pro-S Spray w/ Pre-Installed Rotary Nozzle

4'' Pro-S Spray with pre-installed Fixed 360 degree Rotary Nozzle with a radius of 16' to 19'.

The Pro-S™ Spray is designed to provide long life and outstanding performance. The result of precision engineering and extensive field testing by contractors around the world. These sprays are distinguished by robust construction, rugged body and cap, co-molded seal and heavy-duty retraction spring. Built with the contractor in mind. The co-molded wiper seal ensures proper operation time after time with minimal flow by.

Rotary nozzle design versatility allows the contractor to carry fewer nozzles in their trucks. The 90° – 270° adjustable arc will fulfill 80% – 90% of all arc adjustments usually required! The full 360° and specialty models complete the variety of pattern options. Assembly fits in a Rain Bird® 1800 Series spray body.

SPECIFICATIONS:

• Rotary Nozzle Distance: 16'-19'
• Arc: Fixed 360°
• Pressure Rating: 20 - 70 PSI (1,4 - 4,8 bar)
• Flow-by: 0 - 8 psi (0,6 bar) 0.20 GPM (0,76 LPM)
• Inlet: 1/2" (1,3 cm) Female Thread NPT

PRO-S Spray Features:

• Co-Molded Wiper Seal - Ensures a leak free, full pop-up operation even under low-pressure situations. Cartridge design allows for easy removal and cleaning. Treated with UV inhibitors for long life. Seal is microbe resistant to reduce degradation and stick-ups.
• Accepts Female Threaded Nozzles
• Ratcheting Riser - Permits quick, easy alignment of spray pattern.
• Heavy-Duty Retraction Spring - Strongest spring in the industry for positive retraction in all soil conditions.
• Fits in Rainbird 1800 Can

Rotary Nozzles Features:

• Fixed 360° Model
• Hand adjustable – no tools needed
• Durable Design-Molded with high-impact engineered resin for long life.
• Superior Uniformity-Multi-stream technology provides outstanding coverage eliminating brown spots.
• Matched Precipitation – Low precipitation rate is proportionate even after arc and radius adjustment.
• Water Smart Technology-Reduce water usage up to 30% without compromising on results.
• Double pop-up Design – Delivers additional protection from dirt/particulate intrusion in harsh conditions.
• Simple to Adjust-Easiest adjustment in the industry.
• Color-Coded – Easily identify 6 standard nozzles and 3 specialty nozzles in the field.
• Large filter – prolongs product life
• Can be installed in the same zone as rotors
