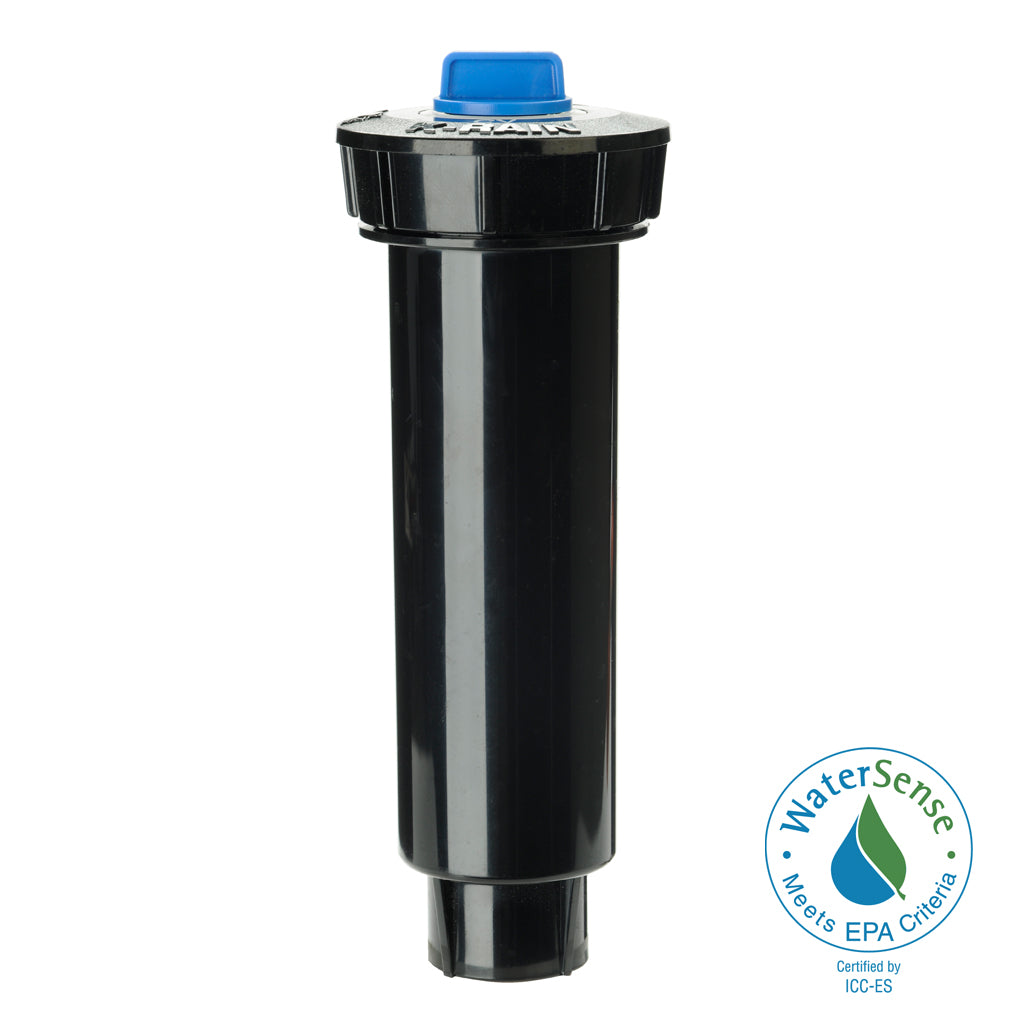

K-Rain - 78004-PR40 - 4'' Pro S Spray w/ 40 PSI Pressure Regulator
All pressure regulated Pro-S™ Sprays are EPA WaterSense certified. Compatible with all brands of standard female-thread nozzles. Assembly fits in a Rain Bird® 1800 Series spray body.
- 4'' Pop-up with male riser and flush cap to aid in installation.
In-stem 40PSI Pressure Regulator - Saves water by properly regulating nozzle operating pressure. Aids in eliminating misting, fogging and overspray due to wind drift.
- Pressure Rating: 20 - 70 PSI (1,4 - 4,8 bar)
- Flow-by: 0 - 8 psi (0,6 bar) 0.20 GPM (0,76 LPM)
- Inlet: 1/2" (1,3 cm) Female Thread NPT
- Retracted Body Height: 6" (15.2 cm)
FEATURES AND BENEFITS:
Co-Molded Wiper Seal- Ensures a leak free, full pop-up operation even under low-pressure situations. Cartridge design allows for easy removal and cleaning. Treated with UV inhibitors for long life. Seal is microbe resistant to reduce degradation and stick-ups.
Pressure regular 30 and 40 PSI meet state mandates- All pressure regulated Pro-S™ Sprays are EPA WaterSense certified.
- Accepts Female Threaded Nozzles
- Ratcheting Riser- Permits quick, easy alignment of spray pattern.
- Heavy-Duty Retraction Spring- Strongest spring in the industry for positive retraction in all soil conditions.
- Pre-Installed Flush Cap - allows the system to be turned on & purged, cleaning out any dirt & debris before nozzle installation.
- Fits in Rain Bird 1800 Can
