The result of precision engineering and extensive field testing by contractors around the world, the Pro-S is designed to provide long life and outstanding performance. These sprays are distinguished by robust construction, rugged body and cap, co-molded seal and heavy-duty retraction spring. Built with the contractor in mind. The co-molded wiper seal ensures proper operation time after time with minimal flow by. Compatible with all standard female-thread nozzles.

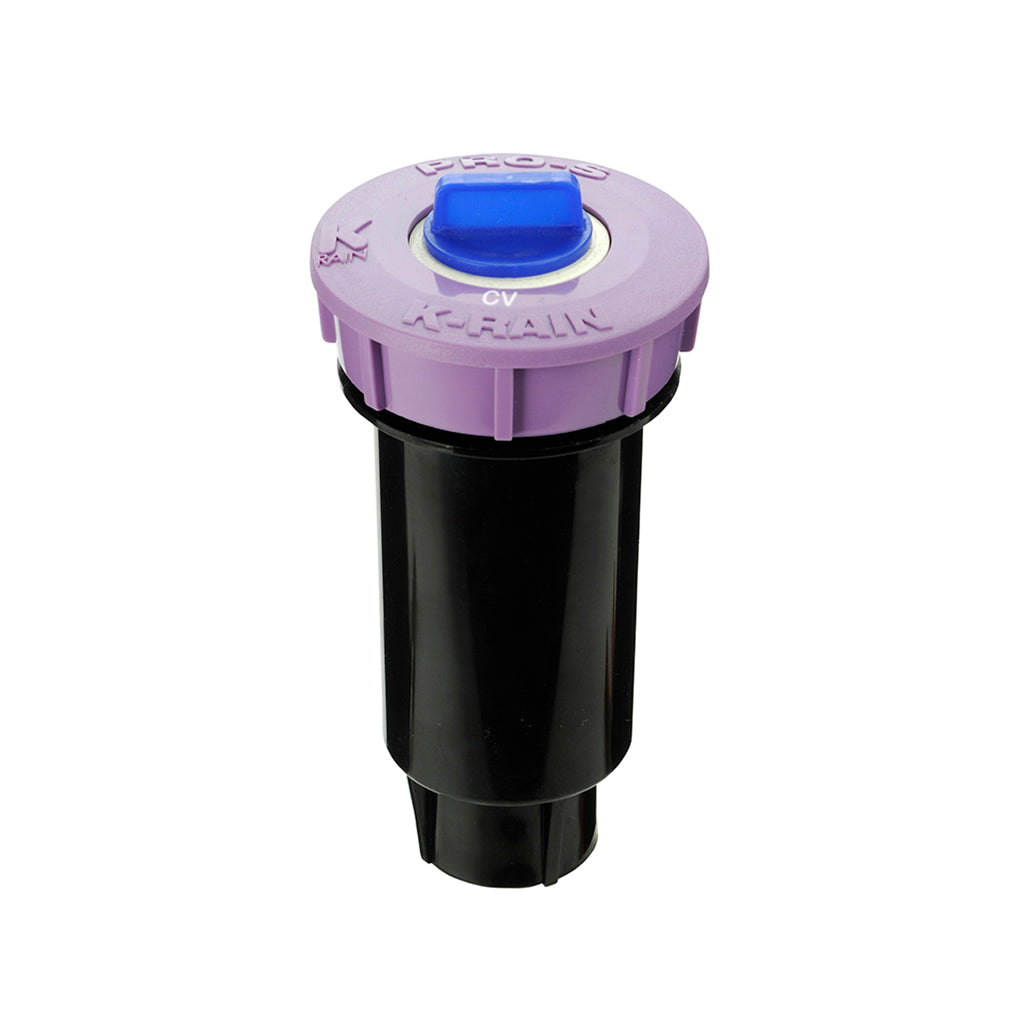

This model is the 2 inch pop up for Reclaimed Water Usage, contains a purple Collar w/ pre-installed check valve for low head drainage.

FEATURES AND BENEFITS:

• Co-Molded Wiper Seal- Ensures a leak free, full pop-up operation even under low-pressure situations. Cartridge design allows for easy removal and cleaning. Treated with UV inhibitors for long life. Seal is microbe resistant to reduce degradation and stick-ups.
• Accepts Female Threaded Nozzles
• Ratcheting Riser- Permits quick, easy alignment of spray pattern.
• Heavy-Duty Retraction Spring- Strongest spring in the industry for positive retraction in all soil conditions.
• Pre-Installed Flush Cap
• Optional In-stem Pressure Regulator- Available for 4", 6" and 12" (10, 15 and 30,5 cm) models, factory preset at 40 psi (2,8 bar).
• Optional In-stem Check Valve- Choose the 78002-CV Option, holds up to 10 (3 m) of head pressure.
• Optional Pre-installed Nozzle Guard 78002-GUARD
• Fits in Rainbird 1800 Can

SPECIFICATIONS:

• Pressure Rating: 20 - 70 PSI (1,4 - 4,8 bar)
• Flow-by: 0 - 8 psi (0,6 bar) 0.20 GPM (0,76 LPM)
• Inlet: 1/2" (1,3 cm) Female Thread NPT
• Overall Body Height:
  • 78002 - 4" (10 cm)
