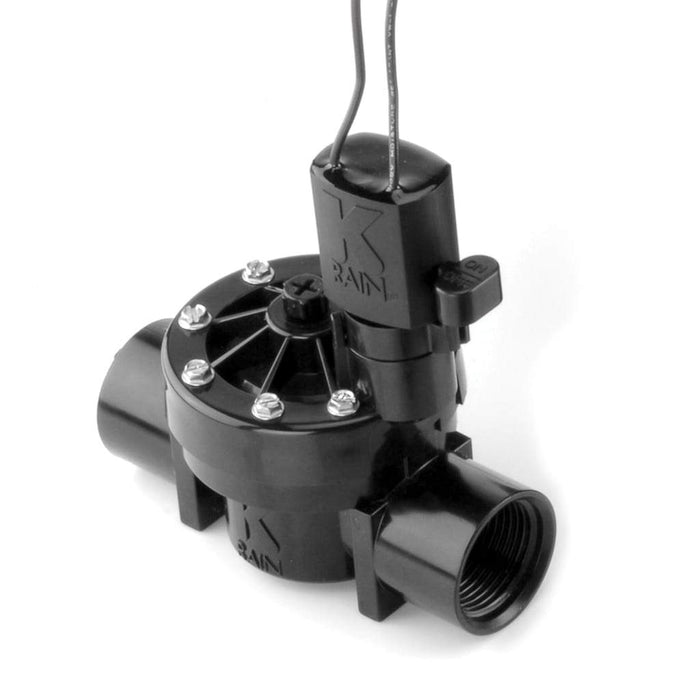

K-Rain - 7101-SL - 1'' ProSeries 150 Valve Slip

K-Rains 7101-SL ProSeries 150 Valves offer the irrigation professional a wide array of features and benefits. They have a removable external bleed screw and metering pin to simplify cleaning and maintenance. With the External Bleed Screw, manual operation during start up is easy.

SPECIFICATIONS

• 1'' Slip Connection with No Flow Control.
• Flow Range: .5-30 GPM
• Pressure Rating: 10-150 PSI
• Inlet: Slip
• Outlets: Slip
• Pressure Loss:
• FLOW (GPM)  5  10   15   20   30
• PSI LOSS       2.9 2.1  1.8  3.0  5.0
• Standard Solenoid: 24V AC 60 Hz
• Inrush Current: .43 Amps
• Holding Current: .25 Amps

FEATURES AND BENEFITS

• Heavy Duty, Corrosion and UV Resistant PVC Construction - Increases the life of the valve.
• External Bleed Screw with Removable Metering Pin - Allows for easy cleaning of the metering pin without disassembling the valve.
• Manual External Bleed Screw - Provides for manual operation in system start up.
• Manual Internal Bleed through Solenoid - Provides for manual operation without discharging water outside the valve.
• Captured Plunger - Allows for the solenoid to be removed without losing the internal plunger.
• Five Year Limited Warranty.

Manuals & Literature

• ProSeries 150 Valve Instruction Guide
• ProSeries 150 Valve Product Specifications
