K-Rain - 7101-J - 1'' Jar-Top ProSeries 150 Valve NPT

K-Rain  |  SKU: 7101-J
$1639 $3149

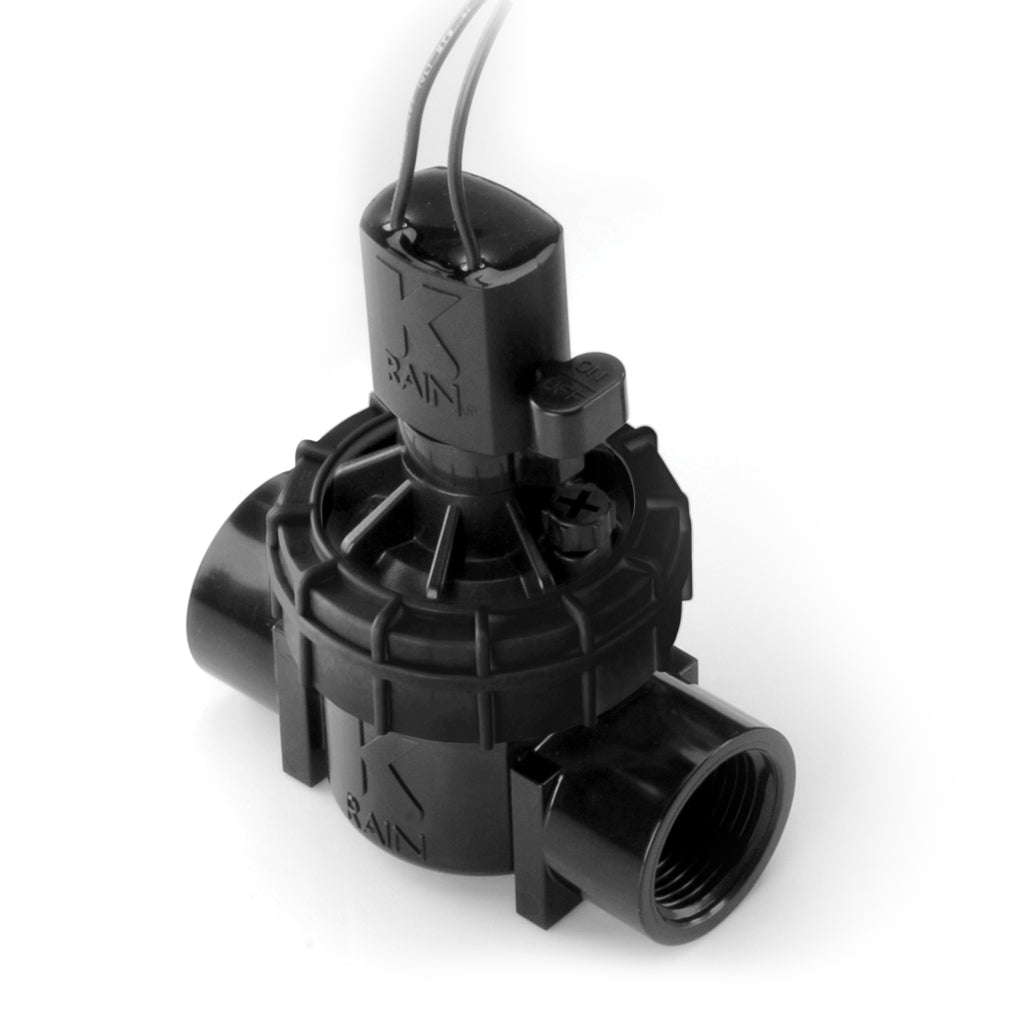

K-Rains 7101-J Jar-Top ProSeries 150 Valves offer the irrigation professional a wide array of features and benefits. They have a removable external bleed screw and metering pin to simplify cleaning and maintenance. With the External Bleed Screw, manual operation during start up is easy.

No Tools Required for cleaning and servicing. The K-Rain Jar-Top valve allows for quick and easy servicing after installation.

SPECIFICATIONS
  • 1'' Female Threaded NPT with No Flow Control.
  • Flow Range: .5-30 GPM
  • Pressure Rating: 10-150 PSI
  • Inlet: Threaded
  • Outlets: Threaded
  • Pressure Loss:
    • FLOW (GPM)  5  10   15   20   30
    • PSI LOSS       3.3 3.9  2.9  3.2  6.1
  • Standard Solenoid: 24V AC 60 Hz
  • Inrush Current: .43 Amps
  • Holding Current: .25 Amps

FEATURES AND BENEFITS

  • Threaded Jar-Top – Allows for quick removal of the cap for easy servicing after installation.
  • Glass-Filled Nylon Screw Cap – Increased durability.
  • Heavy Duty, Corrosion and UV Resistant PVC Construction - Increases the life of the valve.
  • External Bleed Screw with Removable Metering Pin - Allows for easy cleaning of the metering pin without disassembling the valve.
  • Manual External Bleed Screw - Provides for manual operation in system start up.
  • Manual Internal Bleed through Solenoid - Provides for manual operation without discharging water outside the valve.
  • Captured Plunger - Allows for the solenoid to be removed without losing the internal plunger.
  • Five Year Limited Warranty.
