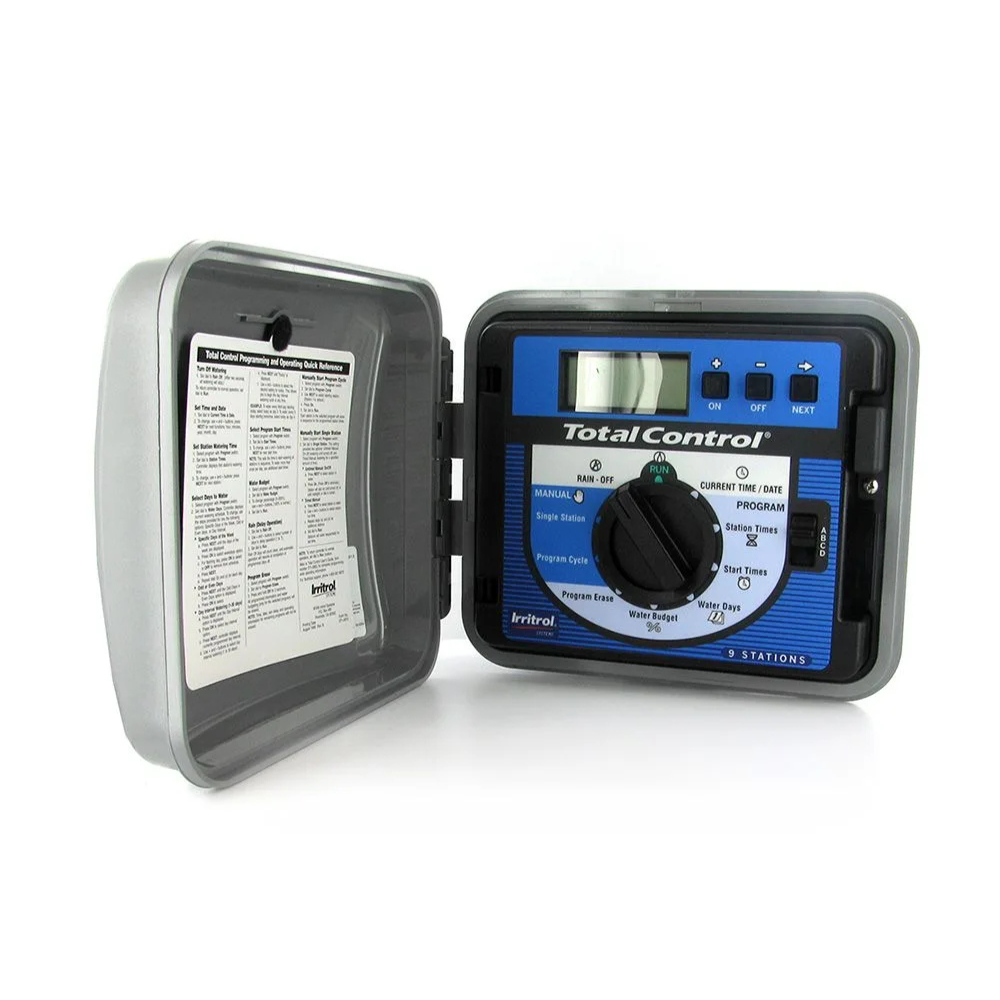

Irritrol - TC-9EX-R - 9-Station Total Control-R Controller (Outdoor)
Irritrol - TC-9EX-R - 9-Station Total Control-R Controller (Outdoor) is backordered and will ship as soon as it is back in stock.
Why so “cheap” at CheapSprinklers? Low prices by design — same parts, no compromise
Our prices are lower because of how we run our business — not because the product is different — and we pass those efficiencies directly on to you.
You’re receiving the same brand-new, factory-sealed item sold by big-box, supply-house, or bloated online-warehouse sellers — delivered direct to you, for less.
- Bulk Purchasing: We buy in high volume to lower per-unit cost
- Low Overhead: No physical storefronts or unnecessary middlemen
- Price-First Model: Our business is built around keeping everyday prices as low as possible — so you can put the savings toward other projects or your business.
- Fast & Efficient Fulfillment: Streamlined US warehouse operations keep costs down and orders moving fast.
The Result: Genuine products with full manufacturer warranty — delivered fast, without paying inflated big-box, supply-house, or bloated online-warehouse markups for the same parts.
CheapSprinklers Product Guarantee How we guarantee authenticity and warranty coverage
All products sold by CheapSprinklers are brand new and factory sealed. This Toro Fixed Station Controller (TC-9EX-R) is sourced directly from Toro and ships from us in new-in-box retail packaging.
We’ve been sourcing and supporting irrigation products for professionals and DIYers through both brick-and-mortar and online channels since 1981.
If there’s ever an issue, CheapSprinklers stands behind what we sell and will help coordinate any warranty claim or replacement.
- Genuine New Toro Fixed Station Controller: no knockoffs, no refurbished, no old stock
- Factory Sealed: shipped in original new-in-box retail packaging
- Current Production Inventory: no discontinued or clearance stock
- Complete Toro Warranty: full manufacturer coverage begins when your order is delivered
The Result: Peace of mind. You’re installing top-quality equipment — and if there’s ever an issue with this Fixed Station Controller, you’re fully supported by CheapSprinklers and Toro.
Irritrol - 9-Station Total Control-R Series Irrigation Indoor/Outdoor Controller - TC-9EX-R
The Irritrol® Total Control-R family of models is proof that advanced design controllers don’t have to be complicated. Developed to meet a wide variety of watering requirements, the easy-to-program Total Control Series is available in models ranging from 6 to 48 stations. Programming flexibility is provided by four independent programs, 16 total start times and a 365-day calendar for odd/even date scheduling. And the Total Control-R has a weather-based option with Irritrol’s CLIMATE LOGIC®!
Specs
- Four fully independent programs that can run concurrently
- Watering day scheduling by Weekdays, Odd/Even days (with selective day removal) or Day Interval from 1 to 30 days.
- 365-day calendar with automatic compensation for leap year
- Sixteen total start times to use in any program
- Start time stacking overlap protection within each program
- Station watering time from 0 minutes to 10 hours in 1-minute increments
- Program information erase feature selectable by program
- Non-volatile program memory retains programming information for up to 30 years without power
- Battery backup maintains time and date during a power failure for over 2000 continuous hours on a single 9-volt alkaline battery.
- Water budgeting from 0 to 200% in 10% increments
- Rain delay programmable to 7 days
- Self-diagnostic electronic circuit breaker that identifies and overrides faulty stations
- Master valve/pump start operation selectable per program
- Complete manual operations available by station and program
- Sensor switch connection for operation with any normally-closed rain switch device
- Slide switch control provided for rain switch sensor override
Programming Features
- Up to six schedules: Three irrigation schedules with four start times per schedule | One wired auxiliary schedule, plus two optional wireless auxiliary schedules
- Monthly season adjust by schedule
- Schedule stacking, with automatic split cycle when watering adjustments are greater than 100%
- Grow-In schedule is settable for up to 90 days and automatically reverts to base irrigation schedule
- Station runtimes from one minute to twelve hours
- Allows 30, 60, or 90 second manual runtimes for things such as winterization/blowouts
- Programmable well-recovery, station, or pump start delays from 10 seconds to 30 minutes
- Timed water off from one to fourteen days
- Compatible with normally-closed rain sensors
- Automatic short detection for circuit protection and faster troubleshooting
- Non-volatile memory doesn’t require batteries and holds programming for up to five years
- Diagnostic zone test measures and displays current draw of solenoid and identifies short, over current and open conditions
Operating Specs
- Station run times: 1 minute to 10 hours in 1-minute increments
- Start times: 16 total starts assignable to any program
- Water budgeting: 10-200% in 10% increments
Downloads
-
Box QuantityN/A
