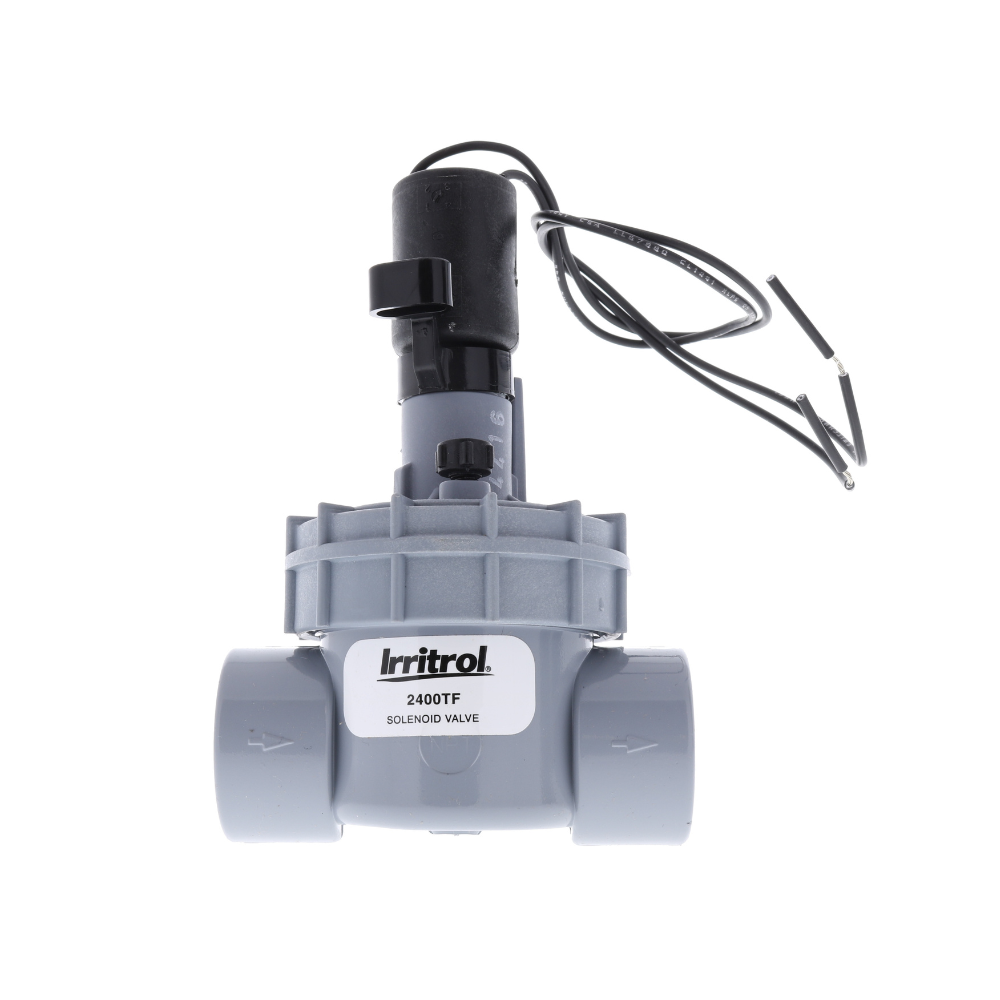

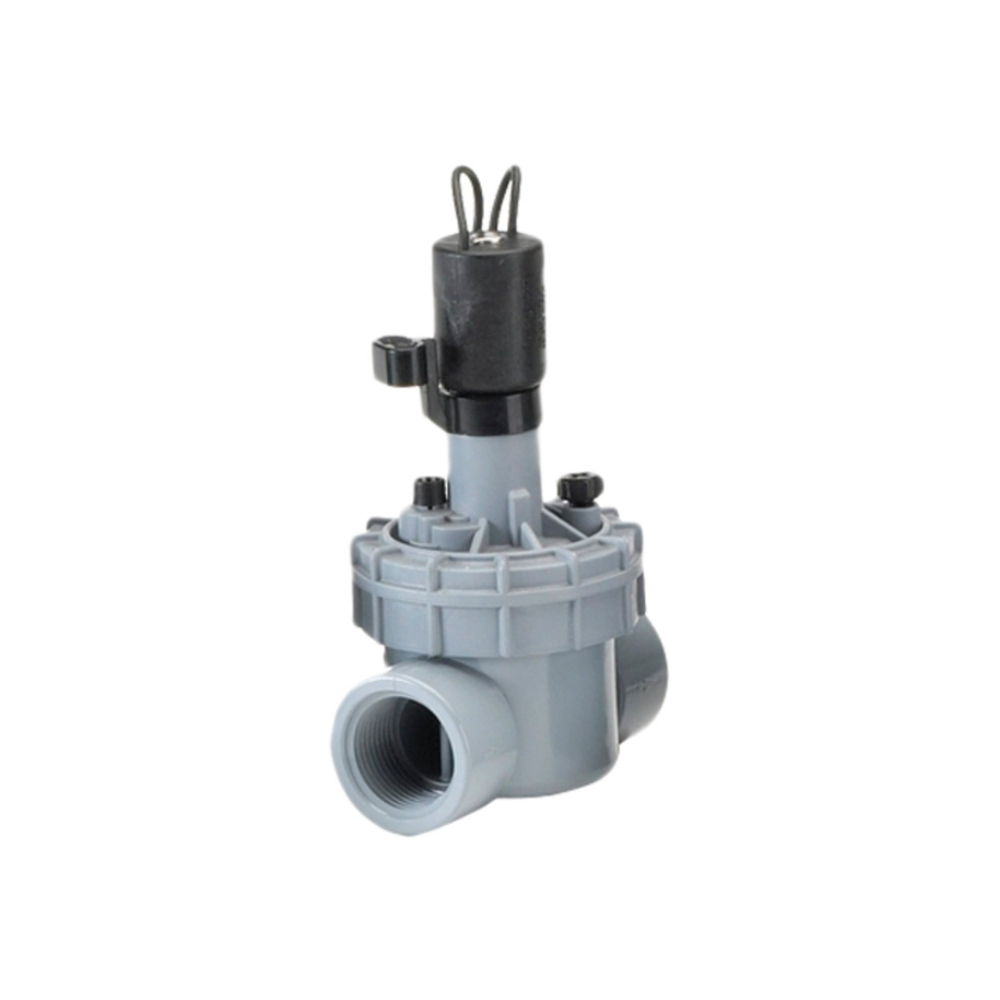

Irritrol - 2400TF - 1'' Jar Top Valve w/ Flow Control (FPT x FPT)
Irritrol - 2400TF - 1'' Jar Top Valve w/ Flow Control (FPT x FPT) is backordered and will ship as soon as it is back in stock.
Irritrol 2400TF 1 in. FPT Threaded Jar-Top Valve with Flow Control
The Irritrol® 2400 Series globe valves are popular with users because of the convenience of their threaded bonnets, the reliability of their double-beaded diaphragm and the durability of their heavy-duty, corrosion and UV-resistant PVC construction. Fast and easy to install and service, these 1-inch residential plastic valves offer an encapsulated solenoid, internal/external bleed, flow control and are available in multiple configurations.
Features
- Size: 1'' FPT (Female Pipe Thread)
- Flow control for precise adjustment and manual shutoff

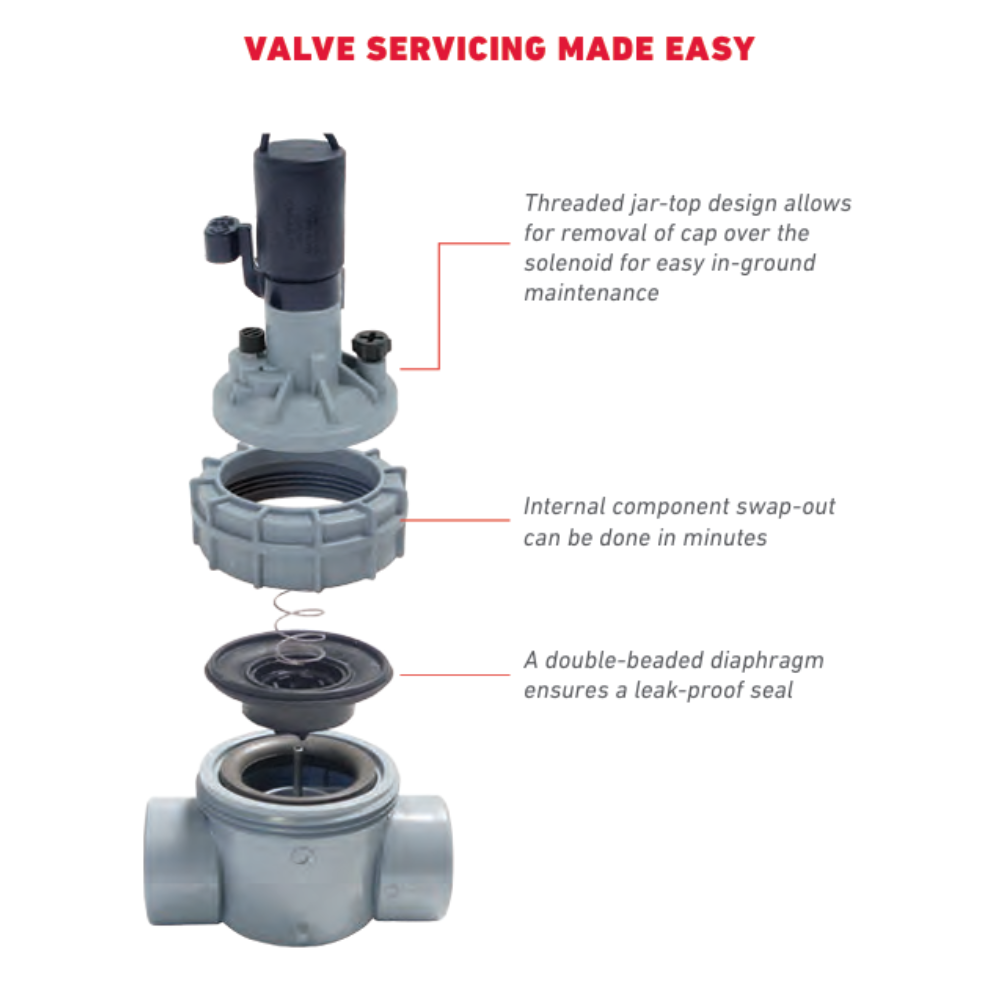

- Threaded Bonnet Design allows easy servicing without removal from the system
- Buna-N Valve Seat Seal Ensures a leak proof seal
- Rugged, Double-Beaded Diaphragm ensures a leak proof seal
- Internal and External Bleed (Flush Mode) allows for manual operation
- Encapsulated injection-molded solenoid with a captive hex plunger
- Heavy-duty, corrosion- and UV-resistant PVC and stainless steel construction
- Floating bleed tube allows thermal expansion without affecting performance
- Five-year warranty
Optional Accessories (Sold Separately)
- DCL - DC Latching Solenoid
Operating Specifications
- Flow rate: 0.25 to 30 GPM
- Recommended pressure range: 10 to 150 PSI
Electrical Specifications
- Solenoid: 24 V ac
- Inrush volt-amp: 24 V ac-9.6 VA
- Inrush current: .4 amp
- Holding volt-amp: 24 V ac-4.8 VA
- Holding current: .2 amp
Dimensions
- H: 5 1/8''
- W: 3''
- L: 4''
